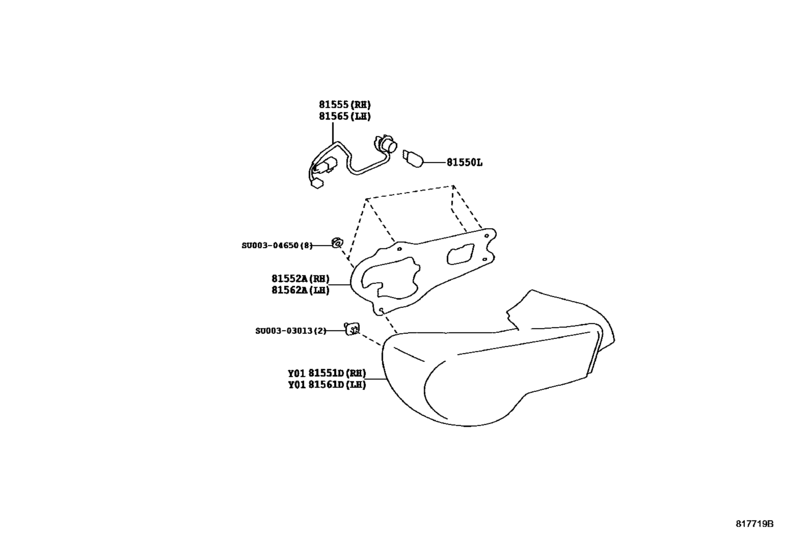

Rear Combination Lamp ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550L
|
81550L
SU003-02568
Bulb (For Front Turn Signal Lamp)
[02.2016 -] GRMN86 １２Ｖ ２１Ｗ |
SU003-02568 |
— | ||
| replacement | |||||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[02.2016 -] GRMN86 １２Ｖ ２１Ｗ |
90981-15011 |
from US $4.48 |
||
|
81551D
|
81551D
SU003-05808 Lens & Body, Rear Combination Lamp, Rh[02.2016 -] GRMN86 |
SU003-05808 |
from US $342.46 |
||
|
81552A
|
81552A
SU003-05121 Gasket, Rear Combination Lamp, Rh[02.2016 -] GRMN86 |
SU003-05121 |
US $16.13 |
||
|
81555
|
81555
SU003-05119 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[02.2016 -] GRMN86 |
SU003-05119 |
US $30.07 |
||
|
81561D
|
81561D
SU003-05809 Lens & Body, Rear Combination Lamp, Lh[02.2016 -] GRMN86 |
SU003-05809 |
from US $339.47 |
||
|
81562A
|
81562A
SU003-05122 Gasket, Rear Combination Lamp, Lh[02.2016 -] GRMN86 |
SU003-05122 |
US $16.13 |
||
|
81565
|
81565
SU003-05119 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[02.2016 -] GRMN86 |
SU003-05119 |
US $30.07 |
||
|
SU00303013
|
SU00303013
SU003-03013 GROMMET LAMP |
SU003-03013 |
US $2.51 |
||
|
SU00304650
|
SU00304650
SU003-04650 NUT FLG M5 |
SU003-04650 |
US $1.25 |
||
