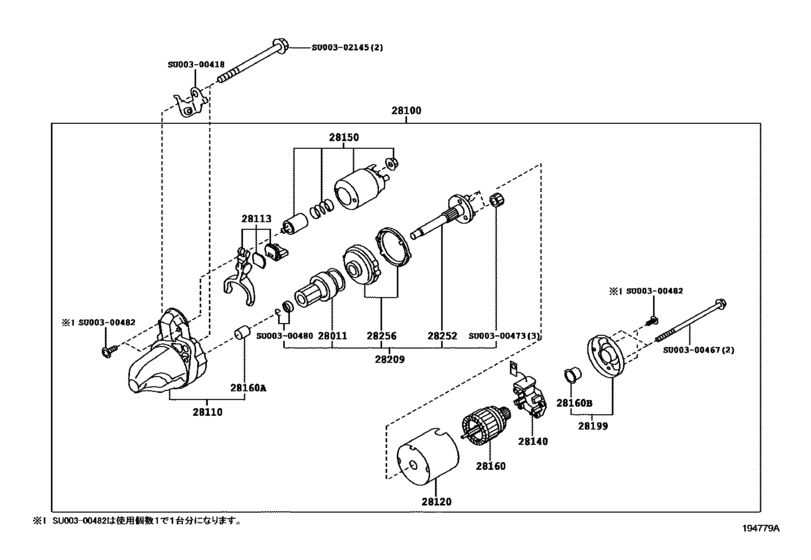

Starter ([02.2016 - ] (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
23312-AA010
Clutch Sub-Assy, Starter
[02.2016 -] GRMN86 |
23312-AA010 |
— | ||
|
28100
|
28100
23300-AA730
Starter Assy
[02.2016 -] GRMN86 |
23300-AA730 |
— | ||
|
28110
|
28110
23318-AA290
Housing Assy, Starter Drive
[02.2016 -] GRMN86 |
23318-AA290 |
— | ||
|
28113
|
28113
23322-AA030
Lever, Starter Pinion Drive
[02.2016 -] GRMN86 |
23322-AA030 |
— | ||
|
28120
|
28120
23309-AA400
Yoke Assy, Starter
[02.2016 -] GRMN86 |
23309-AA400 |
— | ||
|
28140
|
28140
23378-AA090
Holder Assy, Starter Brush
[02.2016 -] GRMN86 |
23378-AA090 |
— | ||
|
28150
|
28150
23310-AA130
Switch Assy, Magnet Starter
[02.2016 -] GRMN86 |
23310-AA130 |
— | ||
|
28160
|
28160
23319-AA030
Armature Assy, Starter
[02.2016 -] GRMN86 |
23319-AA030 |
— | ||
|
28160A
|
28160A
23320-AA000
Bearing, Starter Armature
[02.2016 -] GRMN86 |
23320-AA000 |
— | ||
|
28160B
|
28160B
23343-AA250
Bearing, Starter Armature, No.2
[02.2016 -] GRMN86 |
23343-AA250 |
— | ||
|
28199
|
28199
23337-AA130
Cover, Starter
[02.2016 -] GRMN86 |
23337-AA130 |
— | ||
|
28209
|
28209
23328-AA160
Shaft Sub-Assy, Starter
[02.2016 -] GRMN86 |
23328-AA160 |
— | ||
|
28252
|
28252
23329-AA050
Gear, Starter Idle
[02.2016 -] GRMN86 |
23329-AA050 |
— | ||
|
28256
|
28256
23334-AA050
Gear, Starter Internal
[02.2016 -] GRMN86 |
23334-AA050 |
— | ||
|
SU00300418
|
SU00300418
SU003-00418 New Genuine Part |
SU003-00418 |
US $4.95 |
||
|
SU00300467
|
SU00300467
SU003-00467 New Genuine Part |
SU003-00467 |
US $3.20 |
||
|
SU00300473
|
SU00300473
SU003-00473 New Genuine Part |
SU003-00473 |
US $13.83 |
||
|
SU00300480
|
SU00300480
SU003-00480 New Genuine Part |
SU003-00480 |
US $4.80 |
||
|
SU00300482
|
SU00300482
SU003-00482 New Genuine Part |
SU003-00482 |
US $1.75 |
||
|
SU00302145
|
SU00302145
SU003-02145 New Genuine Part |
SU003-02145 |
US $4.30 |
