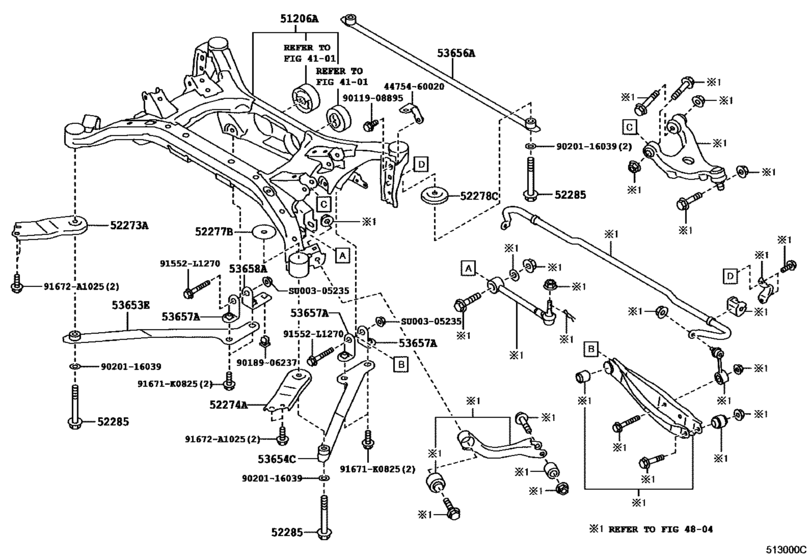

Suspension Crossmember & Under Cover ([02.2016 - ] ﾘﾔ (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51206A
|
51206A
SU003-00349 Member Sub-Assy, Rear Suspension[02.2016 -] GRMN86 |
SU003-00349 |
US $519.79 |
||
|
52273A
|
52273A
SU003-00350 Stopper, Rear Suspension Member, Lower Rh[02.2016 -] GRMN86 |
SU003-00350 |
US $47.04 |
||
|
52274A
|
52274A
SU003-00351 Stopper, Rear Suspension Member, Lower Lh[02.2016 -] GRMN86 |
SU003-00351 |
US $34.21 |
||
|
52277B
|
52277B
SU003-00353 Stopper, Rear Suspension Member, Rear Upper[02.2016 -] GRMN86 |
SU003-00353 |
US $3.94 |
||
|
52278C
|
52278C
SU003-00352 Stopper, Rear Suspension Member, Rear Lower[02.2016 -] GRMN86 |
SU003-00352 |
US $11.29 |
||
|
52285
|
52285
90105-14163 Bolt, Differential Support Member Mounting, No.1[02.2016 -] GRMN86 |
90105-14163 |
US $7.71 |
||
|
53653E
|
53653E
53653-18010 Brace, Rear Suspension, Lower Rh[02.2016 -] GRMN86 |
53653-18010 |
US $163.07 |
||
|
53654C
|
53654C
53654-18010 Brace, Rear Suspension, Lower Lh[02.2016 -] GRMN86 |
53654-18010 |
US $163.07 |
||
|
53656A
|
53656A
53656-18010
Brace, Rear Suspension, Lower Center
[02.2016 -] GRMN86 |
53656-18010 |
— | ||
|
53657A
|
53657A
53657-18010 Bracket, Rear Suspension Brace, No.1[02.2016 -] GRMN86 |
53657-18010 |
US $15.14 |
||
|
53658A
|
53658A
53658-18010 Bracket, Rear Suspension Brace, No.2[02.2016 -] GRMN86 |
53658-18010 |
US $20.68 |
||
|
91552L1270
|
91552L1270
91552-L1270 BOLT FLANGE |
91552-L1270 |
US $5.91 |
||
|
91671K0825
|
91671K0825
91671-K0825 New Genuine Part |
91671-K0825 |
US $1.25 |
||
|
91672A1025
|
91672A1025
91672-A1025 New Genuine Part |
91672-A1025 |
US $2.15 |
||
|
4475460020
|
4475460020
44754-60020 Bracket, Vacuum Tube |
44754-60020 |
US $3.67 |
||
|
9011908895
|
9011908895
90119-08895 BOLT WWASHER |
90119-08895 |
US $1.79 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.61 |
||
|
9020116039
|
9020116039
90201-16039 New Genuine Part |
90201-16039 |
US $2.15 |
||
|
SU00305235
|
SU00305235
SU003-05235 New Genuine Part |
SU003-05235 |
US $4.48 |
