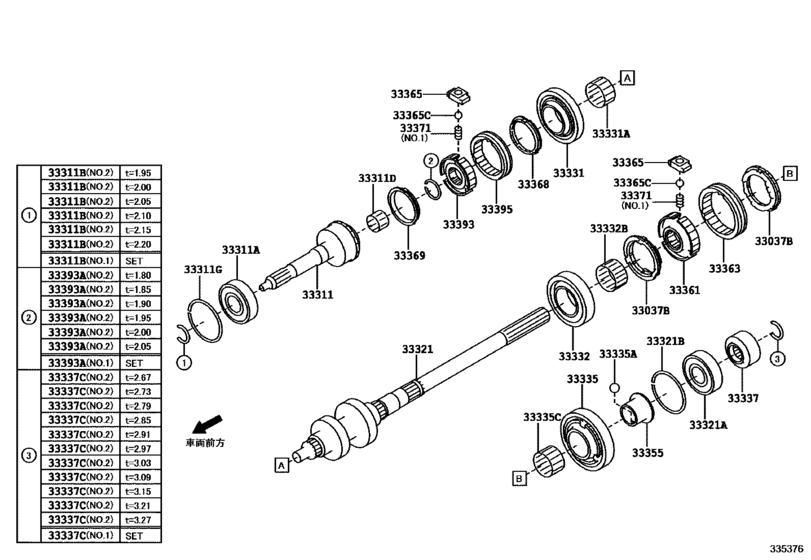

Transmission Gear (Mtm) ([02.2016 - ] TL70 (1602- )) Diagram Toyota GT86
- Year
- 2016 - 2016
- Sales region
- Japan
- Frame
- GRMN86
- ENGINE
- FA20
- TRANSMISSION
- MTM
- From
- 02.2016
- To
- 05.2016
- Vehicle Model
- FR-SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33037B
|
33037B
SU003-03886 Ring Set, Synchronizer, No.1[02.2016 -] GRMN86 |
SU003-03886 |
US $18.14 |
||
|
33311
|
33311
SU003-03911 Shaft, Input[02.2016 -] GRMN86 |
SU003-03911 |
US $68.91 |
||
|
33311A
|
33311A
SU003-03527 Bearing (For Input Shaft Front)[02.2016 -] GRMN86 |
SU003-03527 |
US $74.59 |
||
|
33311B
|
33311B
SU003-03575 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝１．９５,ＮＯ．２ |
SU003-03575 |
US $7.16 |
||
|
33311B
|
33311B
SU003-03576 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝２．００,ＮＯ．２ |
SU003-03576 |
US $7.43 |
||
|
33311B
|
33311B
SU003-03577 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝２．０５,ＮＯ．２ |
SU003-03577 |
US $11.29 |
||
|
33311B
|
33311B
SU003-03578 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝２．１０,ＮＯ．２ |
SU003-03578 |
US $7.43 |
||
|
33311B
|
33311B
SU003-03579 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝２．１５,ＮＯ．２ |
SU003-03579 |
US $7.43 |
||
|
33311B
|
33311B
SU003-03580 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝２．２０,ＮＯ．２ |
SU003-03580 |
US $7.43 |
||
|
33311B
|
33311B
SU003-03927 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 Ｔ＝１．９５−２．２０ セット,ＮＯ．１ |
SU003-03927 |
US $17.74 |
||
|
33311D
|
33311D
SU003-03522 Bearing, Input Shaft[02.2016 -] GRMN86 |
SU003-03522 |
US $28.22 |
||
|
33311G
|
33311G
SU003-03588 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 |
SU003-03588 |
US $11.29 |
||
|
33321
|
33321
SU003-03912 Shaft, Output[02.2016 -] GRMN86 |
SU003-03912 |
US $515.42 |
||
|
33321A
|
33321A
SU003-03526 Bearing (For Output Shaft Rear)[02.2016 -] GRMN86 |
SU003-03526 |
US $74.59 |
||
|
33321B
|
33321B
SU003-03588 Ring, Shaft Snap (For Front Bearing)[02.2016 -] GRMN86 |
SU003-03588 |
US $11.29 |
||
|
33331
|
33331
SU003-03913 Gear, Reverse[02.2016 -] GRMN86 |
SU003-03913 |
US $71.29 |
||
|
33331A
|
33331A
SU003-03523 Bearing (For Reverse Gear)[02.2016 -] GRMN86 |
SU003-03523 |
US $28.22 |
||
|
33332
|
33332
33033-18010 Gear, 2Nd[02.2016 -] GRMN86 |
33033-18010 |
US $125.22 |
||
|
33332B
|
33332B
SU003-03520 Bearing, Needle Roller (For 2Nd Gear)[02.2016 -] GRMN86 |
SU003-03520 |
US $28.22 |
||
|
33335
|
33335
33032-18010 Gear, 1St[02.2016 -] GRMN86 |
33032-18010 |
US $142.69 |
||
|
33335A
|
33335A
SU003-03908 Ball, 1St Shift Restrict[02.2016 -] GRMN86 |
SU003-03908 |
US $11.11 |
||
|
33335C
|
33335C
SU003-03519 Bearing, Needle Roller(For 1St Gear)[02.2016 -] GRMN86 |
SU003-03519 |
US $28.22 |
||
|
33337
|
33337
SU003-03916 Gear Sub-Assy, 6Th[02.2016 -] GRMN86 |
SU003-03916 |
from US $133.95 |
||
|
33337C
|
33337C
SU003-03564 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．６７,ＮＯ．２ |
SU003-03564 |
US $7.16 |
||
|
33337C
|
33337C
SU003-03565 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．７３,ＮＯ．２ |
SU003-03565 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03566 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．７９,ＮＯ．２ |
SU003-03566 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03567 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．８５,ＮＯ．２ |
SU003-03567 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03568 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．９１,ＮＯ．２ |
SU003-03568 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03569 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．９７,ＮＯ．２ |
SU003-03569 |
US $11.29 |
||
|
33337C
|
33337C
SU003-03570 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝３．０３,ＮＯ．２ |
SU003-03570 |
US $11.29 |
||
|
33337C
|
33337C
SU003-03571 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝３．０９,ＮＯ．２ |
SU003-03571 |
US $11.29 |
||
|
33337C
|
33337C
SU003-03572 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝３．１５,ＮＯ．２ |
SU003-03572 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03573 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝３．２１,ＮＯ．２ |
SU003-03573 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03574 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝３．２７,ＮＯ．２ |
SU003-03574 |
US $7.43 |
||
|
33337C
|
33337C
SU003-03926 Ring, Shaft Snap(For 6Th Gear)[02.2016 -] GRMN86 Ｔ＝２．６７−３．２７ セット,ＮＯ．１ |
SU003-03926 |
US $11.29 |
||
|
33355
|
33355
SU003-03891 Race, 1St Gear Bearing Inner[02.2016 -] GRMN86 |
SU003-03891 |
US $19.82 |
||
|
33361
|
33361
SU003-03893 Hub, Transmission Clutch, No.1[02.2016 -] GRMN86 |
SU003-03893 |
US $108.24 |
||
|
33363
|
33363
SU003-03895 Sleeve, Transmission Hub, No.1[02.2016 -] GRMN86 |
SU003-03895 |
US $96.76 |
||
|
33365
|
33365
SU003-03897 Key, Synchromesh Shifting, No.1[02.2016 -] GRMN86 |
SU003-03897 |
US $18.82 |
||
|
33365C
|
33365C
SU003-03907 Ball(For Synchromesh Shifting Key)[02.2016 -] GRMN86 |
SU003-03907 |
US $11.11 |
||
|
33368
|
33368
SU003-03901 Ring, Synchronizer, No.2[02.2016 -] GRMN86 |
SU003-03901 |
US $24.02 |
||
|
33369
|
33369
SU003-05824 Ring, Synchronizer, No.3[02.2016 -] GRMN86 |
SU003-05824 |
US $24.02 |
||
|
33371
|
33371
SU003-03902 Spring, Synchromesh Shifting Key, No.1[02.2016 -] GRMN86 ＮＯ．１ |
SU003-03902 |
from US $13.95 |
||
|
33371
|
33371
SU003-03903 Spring, Synchromesh Shifting Key, No.1[02.2016 -] GRMN86 ＮＯ．２ |
SU003-03903 |
US $18.14 |
||
|
33393
|
33393
SU003-03904 Hub, Transmission Clutch, No.3[02.2016 -] GRMN86 |
SU003-03904 |
US $96.76 |
||
|
33393A
|
33393A
SU003-03581 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝１．８０,ＮＯ．２ |
SU003-03581 |
US $7.16 |
||
|
33393A
|
33393A
SU003-03582 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝１．８５,ＮＯ．２ |
SU003-03582 |
US $11.29 |
||
|
33393A
|
33393A
SU003-03583 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝１．９０,ＮＯ．２ |
SU003-03583 |
US $11.29 |
||
|
33393A
|
33393A
SU003-03584 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝１．９５,ＮＯ．２ |
SU003-03584 |
US $11.29 |
||
|
33393A
|
33393A
SU003-03585 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝２．００,ＮＯ．２ |
SU003-03585 |
US $11.29 |
||
|
33393A
|
33393A
SU003-03586 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝２．０５,ＮＯ．２ |
SU003-03586 |
US $11.29 |
||
|
33393A
|
33393A
SU003-03928 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[02.2016 -] GRMN86 Ｔ＝１．８０−２．０５ セット,ＮＯ．１ |
SU003-03928 |
US $17.74 |
||
|
33395
|
33395
SU003-03905 Sleeve, Transmission Hub, No.3[02.2016 -] GRMN86 |
SU003-03905 |
US $96.76 |
