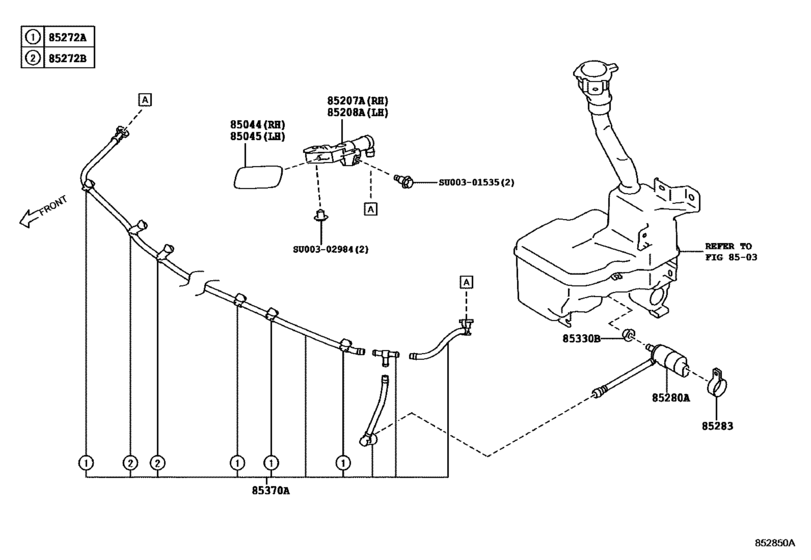

Headlamp Cleaner ([04.2012 - 03.2015] (1204-1503)) Diagram Toyota GT86
- Year
- 2013 - 2013
- Sales region
- Europe
- Frame
- ZN6AC
- grade
- BASE
- ENGINE
- FA20
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- CATEGORY
- A
- From
- 02.2013
- To
- 09.2013
- Gear Shift Type
- 6FC
- Vehicle Model
- GT86
- Emission Regulation
- CHI5
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85044
|
85044
SU003-02703 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI GALAXY BLUE SILICA,E8H |
SU003-02703 |
US $45.60 |
||
|
85044
|
85044
SU003-02704 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI DARK GRAY METALLIC,61K |
SU003-02704 |
US $45.60 |
||
|
85044
|
85044
SU003-02705 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI ORANGE METALLIC,H8R |
SU003-02705 |
from US $38.21 |
||
|
85044
|
85044
SU003-02706 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI LIGHTNING RED,C7P |
SU003-02706 |
from US $38.30 |
||
|
85044
|
85044
SU003-02707 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI STERLING SILVER M,D6S |
SU003-02707 |
US $39.31 |
||
|
85044
|
85044
SU003-02708 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI CRYSTAL BLACK SILICA,D4S |
SU003-02708 |
US $45.60 |
||
|
85044
|
85044
SU003-02709 Nozzle Sub-Assy, Type1 H/lamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI SATIN WHITE PEARL,37J |
SU003-02709 |
from US $38.91 |
||
|
85045
|
85045
SU003-02710 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI GALAXY BLUE SILICA,E8H |
SU003-02710 |
US $39.31 |
||
|
85045
|
85045
SU003-02711 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI DARK GRAY METALLIC,61K |
SU003-02711 |
US $41.41 |
||
|
85045
|
85045
SU003-02712 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI ORANGE METALLIC,H8R |
SU003-02712 |
from US $38.39 |
||
|
85045
|
85045
SU003-02713 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI LIGHTNING RED,C7P |
SU003-02713 |
from US $39.01 |
||
|
85045
|
85045
SU003-02714 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI STERLING SILVER M,D6S |
SU003-02714 |
US $41.41 |
||
|
85045
|
85045
SU003-02715 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI CRYSTAL BLACK SILICA,D4S |
SU003-02715 |
US $45.60 |
||
|
85045
|
85045
SU003-02716 Nozzle Sub-Assy, Type1 H/lamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI SATIN WHITE PEARL,37J |
SU003-02716 |
from US $39.12 |
||
|
85207A
|
85207A
SU003-02701 Actuator Sub-Assy, Headlamp Washer, Rh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02701 |
from US $88.77 |
||
|
85208A
|
85208A
SU003-02702 Actuator Sub-Assy, Headlamp Washer, Lh[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02702 |
from US $86.68 |
||
|
85272A
|
85272A
SU003-05872 Clamp, Headlamp Cleaner, No.1[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-05872 |
US $0.87 |
||
|
85272B
|
85272B
SU003-05873 Clamp, Headlamp Cleaner, No.2[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-05873 |
US $0.87 |
||
|
85280A
|
85280A
SU003-02689 Motor And Pump Assy, Headlamp Cleaner[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02689 |
US $178.21 |
||
|
85283
|
85283
SU003-02718 Bracket, Headlamp Cleaner Washer[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02718 |
US $4.08 |
||
|
85330B
|
85330B
SU003-02131 Bush, Headlamp Cleaner Washer Jar[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02131 |
US $5.10 |
||
|
85370A
|
85370A
SU003-02726 Hose Assy, Headlamp Cleaner Washer, No.1[04.2012 - 08.2013] ZN6..HI;ZN6..BASE..CHI |
SU003-02726 |
US $74.26 |
||
|
SU00301535
|
SU00301535
SU003-01535 Bolt |
SU003-01535 |
US $2.69 |
||
|
SU00302984
|
SU00302984
SU003-02984 Piece, Front Bumper |
SU003-02984 |
from US $2 |
