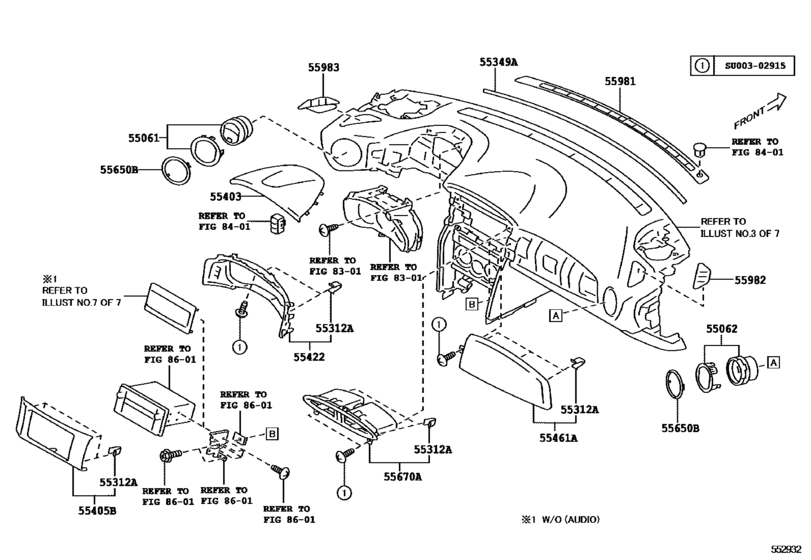

Instrument Panel & Glove Compartment ([04.2012 - ] METER & AUDIO & REGISTER & ORNAMENT (1204- )ZN6AC,6AL,6BC,6BL,6CC,6CL,6DC,6DL) Diagram Toyota GT86
- Year
- 2013 - 2013
- Sales region
- Europe
- Frame
- ZN6AC
- grade
- BASE
- ENGINE
- FA20
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- CATEGORY
- A
- From
- 02.2013
- To
- 09.2013
- Gear Shift Type
- 6F
- Vehicle Model
- GT86
- Emission Regulation
- CHI5
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55061
|
55061
SU003-01942 Register Sub-Assy, Instrument Panel, No.1[04.2012 - 08.2013] ZN6..LHD |
SU003-01942 |
US $17.91 |
||
|
55062
|
55062
SU003-01943 Register Sub-Assy, Instrument Panel, N0.2[04.2012 - 08.2013] ZN6..LHD |
SU003-01943 |
US $17.91 |
||
|
55312A
|
55312A
SU003-02967 Clip, Instrument Panel[04.2012 - 08.2013] ZN6 |
SU003-02967 |
US $1.25 |
||
|
55349A
|
55349A
SU003-01968
Cushion, Instrument Panel
[04.2012 - 08.2013] ZN6 |
SU003-01968 |
— | ||
| replacement | |||||
|
55349A
|
55349A
SU003-07508 Cushion, Instrument Panel[04.2012 - 08.2013] ZN6 |
SU003-07508 |
US $5.38 |
||
|
55403
|
55403
SU003-01959 Hood Sub-Assy, Meter[04.2012 - 08.2013] ZN6 |
SU003-01959 |
US $17.91 |
||
|
55405B
|
55405B
SU003-01910 Panel Sub-Assy, Instrument Cluster Finish, Center[04.2012 - 08.2013] ZN6..BASE..CHI;ZN6..LHD..(LOW,LOWC) |
SU003-01910 |
US $35.45 |
||
|
55422
|
55422
SU003-01958 Ornament, Instrument Panel Meter, Upper[04.2012 - 08.2013] ZN6..LHD |
SU003-01958 |
US $41.64 |
||
|
55461A
|
55461A
SU003-01932 Ornament, Instrument Panel[04.2012 - 08.2013] ZN6..BASE..CHI;ZN6..LHD..(LOW,LOWC) |
SU003-01932 |
US $51.74 |
||
|
55650B
|
55650B
SU003-01915 Bezel, Instrument Panel Register[04.2012 - 08.2013] ZN6..LOW,LOWC;ZN6..BASE..CHI; ZN6..RHD..BASE OPTION CODE=1V&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=1W&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=3V&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=3W&DESTINATION CODE=KA; Z |
SU003-01915 |
US $7.35 |
||
|
55670A
|
55670A
SU003-01944 Register Assy, Instrument Panel, Center[04.2012 - 08.2013] ZN6..LOW,LOWC;ZN6..BASE..CHI; ZN6..RHD..BASE OPTION CODE=1V&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=1W&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=3V&DESTINATION CODE=KA; ZN6..RHD..BASE OPTION CODE=3W&DESTINATION CODE=KA; Z |
SU003-01944 |
US $56.49 |
||
|
55981
|
55981
SU003-01946 Garnish, Defroster Nozzle, No.1[04.2012 - 08.2013] ZN6..LOW,LOWC; ZN6..BASE..CHI OPTION CODE=1V; ZN6..BASE..CHI OPTION CODE=2L; ZN6..BASE..CHI OPTION CODE=2N; ZN6..BASE..CHI OPTION CODE=2U; ZN6..BASE..CHI OPTION CODE=2V; ZN6..BASE..CHI OPTION CODE=3V; ZN6..BASE..CHI OPTION CODE=4L; ZN6 |
SU003-01946 |
US $14.85 |
||
|
55981
|
55981
SU003-01948 Garnish, Defroster Nozzle, No.1[04.2012 - 08.2013] ZN6..LHD..HI; ZN6..BASE..CHI OPTION CODE=1W; ZN6..BASE..CHI OPTION CODE=2B; ZN6..BASE..CHI OPTION CODE=2C; ZN6..BASE..CHI OPTION CODE=2E; ZN6..BASE..CHI OPTION CODE=2F; ZN6..BASE..CHI OPTION CODE=2G; ZN6..BASE..CHI OPTION CODE=2H; ZN6. |
SU003-01948 |
from US $14.85 |
||
|
55982
|
55982
SU003-01949 Garnish, Defroster Nozzle, No.2[04.2012 - 08.2013] ZN6 |
SU003-01949 |
US $5.68 |
||
|
55983
|
55983
SU003-01950 Garnish, Defroster Nozzle, No.3[04.2012 - 08.2013] ZN6 |
SU003-01950 |
US $5.42 |
||
|
SU00302915
|
SU00302915
SU003-02915 New Genuine Part |
SU003-02915 |
US $0.54 |
||
