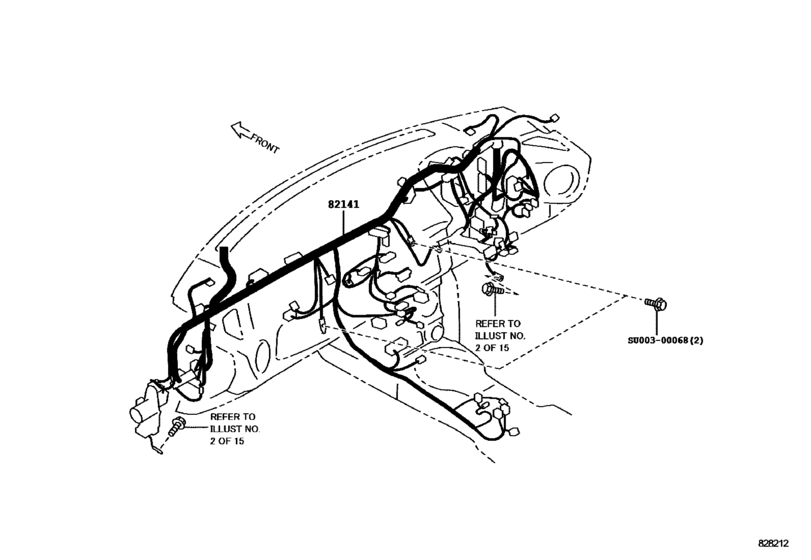

Wiring & Clamp ([04.2012 - ] INSTRUMENT PANEL (1204- )ZN6AK,6BK,6CK,6DK) Diagram Toyota GT86
- Year
- 2015 - 2016
- Sales region
- General
- Frame
- ZN6DK
- grade
- HI
- ENGINE
- FA20
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- CATEGORY
- D
- From
- 04.2015
- To
- 07.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- GT86
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
SU003-05381 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..RHD..6FC..HI OPTION CODE=GR&DESTINATION CODE=KY; ZN6..RHD..6FC..HI DESTINATION CODE=KY&OPTION CODE=NR; ZN6..RHD..6FC..HI OPTION CODE=GR&DESTINATION CODE=K2; ZN6..RHD..6FC..HI DESTINATION CODE=K2&OPTION CODE=NR; ZN6..RHD..6FC..HI O |
SU003-05381 |
US $1,271.09 |
||
|
82141
|
82141
SU003-05385 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..RHD..6FC..HI DESTINATION CODE=KC&OPTION CODE=NG; ZN6..RHD..6FC..HI DESTINATION CODE=KC&OPTION CODE=NH; ZN6..RHD..6FC..HI DESTINATION CODE=KE&OPTION CODE=NG; ZN6..RHD..6FC..HI DESTINATION CODE=KE&OPTION CODE=NH; ZN6..RHD..6FC..HI D |
SU003-05385 |
US $1,271.09 |
||
|
82141
|
82141
SU003-05389 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..6FC..SPE; ZN6..RHD..6FC..HI OPTION CODE=BR&DESTINATION CODE=KA; ZN6..RHD..6FC..HI OPTION CODE=CR&DESTINATION CODE=KA; ZN6..RHD..6FC..HI OPTION CODE=DR&DESTINATION CODE=KA; ZN6..RHD..6FC..HI OPTION CODE=ER&DESTINATION CODE=KA; ZN6. |
SU003-05389 |
US $1,271.09 |
||
|
82141
|
82141
SU003-05393 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..RHD..6FC..HI DESTINATION CODE=KA&OPTION CODE=NG; ZN6..RHD..6FC..HI DESTINATION CODE=KA&OPTION CODE=NH; ZN6..RHD..6FC..HI OPTION CODE=GB&DESTINATION CODE=KA; ZN6..RHD..6FC..HI OPTION CODE=GF&DESTINATION CODE=KA; ZN6..RHD..6FC..HI O |
SU003-05393 |
US $1,271.09 |
||
|
82141
|
82141
SU003-05410 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..RHD..6FC..HI OPTION CODE=BR&DESTINATION CODE=EK; ZN6..RHD..6FC..HI OPTION CODE=CR&DESTINATION CODE=EK; ZN6..RHD..6FC..HI OPTION CODE=DR&DESTINATION CODE=EK; ZN6..RHD..6FC..HI DESTINATION CODE=EK&OPTION CODE=ER; ZN6..RHD..6FC..HI D |
SU003-05410 |
US $1,514.24 |
||
|
82141
|
82141
SU003-05411 Wire, Instrument Panel[04.2015 - 07.2016] ZN6..RHD..6FC..HI DESTINATION CODE=EK&OPTION CODE=NG; ZN6..RHD..6FC..HI DESTINATION CODE=EK&OPTION CODE=NH; ZN6..RHD..6FC..HI DESTINATION CODE=ER&OPTION CODE=NG; ZN6..RHD..6FC..HI DESTINATION CODE=ER&OPTION CODE=NH; ZN6..RHD..6FC..HI D |
SU003-05411 |
US $1,397.76 |
||
|
SU00300068
|
SU00300068
SU003-00068
New Genuine Part
|
SU003-00068 |
— | ||
| replacement | |||||
|
SU00300068
|
SU00300068
SU003-03446 New Genuine Part |
SU003-03446 |
US $0.54 |
||
