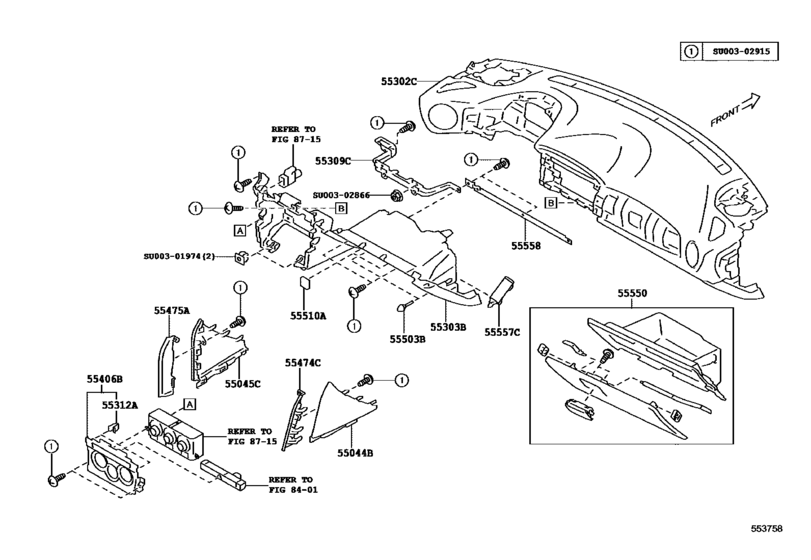

Instrument Panel & Glove Compartment ([08.2016 - ] INSTRUMENT PANEL,GLOVE COMPARTMENT (1608- )ZN6EC,6EL) Diagram Toyota GT86
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- ZN6EC
- grade
- BASE
- ENGINE
- FA20
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- CATEGORY
- E
- From
- 08.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- GT86
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55044B
|
55044B
SU003-01917 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..BASE |
SU003-01917 |
US $11.94 |
||
|
55045C
|
55045C
SU003-01918 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..BASE |
SU003-01918 |
US $11.94 |
||
|
55302C
|
55302C
SU003-07341
Panel Sub-Assy, Instrument
[08.2016 -] ZN6..LHD |
SU003-07341 |
— | ||
| replacement | |||||
|
55302C
|
55302C
SU003-08335 PAD FRAME ASSY LHD[08.2016 -] ZN6..LHD |
SU003-08335 |
US $440.29 |
||
|
55302C
|
55302C
SU003-07342 Panel Sub-Assy, Instrument[08.2016 -] ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=EH; ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=ET |
SU003-07342 |
US $416.42 |
||
|
55303B
|
55303B
SU003-01908 Panel Sub-Assy, Instrument, Lower[08.2016 -] ZN6..LHD |
SU003-01908 |
US $51.98 |
||
|
55303B
|
55303B
SU003-07212 Panel Sub-Assy, Instrument, Lower[08.2016 -] ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=EH; ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=ET |
SU003-07212 |
US $51.98 |
||
|
55309C
|
55309C
SU003-01967 Reinforcement Sub-Assy, Instrument Panel, Center[08.2016 -] ZN6..LHD |
SU003-01967 |
US $7.43 |
||
|
55312A
|
55312A
SU003-02967 Clip, Instrument Panel[08.2016 -] ZN6 |
SU003-02967 |
US $1.25 |
||
|
55406B
|
55406B
SU003-01913 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[08.2016 -] ZN6..BASE |
SU003-01913 |
US $47.61 |
||
|
55474C
|
55474C
SU003-01927 Garnish, Instrument Cluster Finish Panel, No.1[08.2016 -] ZN6..BASE..CHI; ZN6..RHD..BASE DESTINATION CODE=KA |
SU003-01927 |
US $12.36 |
||
|
55475A
|
55475A
SU003-01928 Garnish, Instrument Cluster Finish Panel, No.2[08.2016 -] ZN6..BASE..CHI; ZN6..RHD..BASE DESTINATION CODE=KA |
SU003-01928 |
US $12.36 |
||
|
55503B
|
55503B
SU003-01956 Cushion(For Glove Compartment)[08.2016 -] ZN6 |
SU003-01956 |
US $1.31 |
||
|
55510A
|
55510A
SU003-04310 Cushion(For Glove Compartment Door)[08.2016 -] ZN6 |
SU003-04310 |
US $1.60 |
||
|
55550
|
55550
SU003-01955 Door Assy, Glove Compartment[08.2016 -] ZN6..LHD |
SU003-01955 |
US $104.83 |
||
|
55550
|
55550
SU003-07213 Door Assy, Glove Compartment[08.2016 -] ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=EH; ZN6..HI..CHI;ZN6..LHD..(BASE,SPE) DESTINATION CODE=ET |
SU003-07213 |
US $104.83 |
||
|
55557C
|
55557C
SU003-01972 Damper, Glove Compartment Door[08.2016 -] ZN6 |
SU003-01972 |
US $6.26 |
||
|
55558
|
55558
SU003-01965 Reinforcement, Glove Compartment Door[08.2016 -] ZN6..LHD |
SU003-01965 |
US $6.70 |
||
|
SU00301974
|
SU00301974
SU003-01974 New Genuine Part |
SU003-01974 |
US $1.02 |
||
|
SU00302866
|
SU00302866
SU003-02866 Nut, Wire Adjusting, No.1 |
SU003-02866 |
US $1.02 |
||
|
SU00302915
|
SU00302915
SU003-02915 New Genuine Part |
SU003-02915 |
US $0.54 |
||
