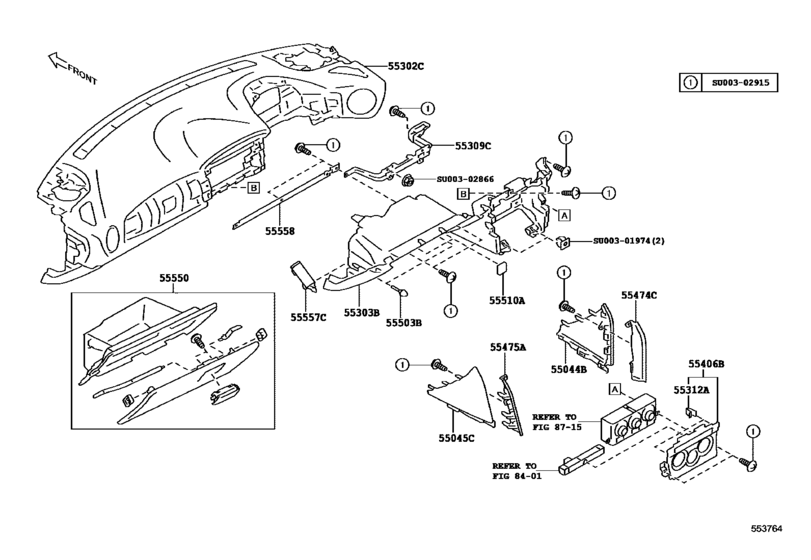

Instrument Panel & Glove Compartment ([08.2016 - ] INSTRUMENT PANEL,GLOVE COMPARTMENT (1608- )ZN6EK) Diagram Toyota GT86
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- ZN6EK
- grade
- HI
- ENGINE
- FA20
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- CATEGORY
- E
- From
- 08.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- GT86
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55044B
|
55044B
SU003-06609 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..HI TRIM3# |
SU003-06609 |
US $53.58 |
||
|
55044B
|
55044B
SU003-06611 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..HI TRIM2# |
SU003-06611 |
US $49.23 |
||
|
55045C
|
55045C
SU003-06610 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..HI TRIM3# |
SU003-06610 |
US $53.58 |
||
|
55045C
|
55045C
SU003-06612 Panel Sub-Assy, Instrument Panel Finish, Upper[08.2016 -] ZN6..HI TRIM2# |
SU003-06612 |
US $49.23 |
||
|
55302C
|
55302C
SU003-07340
Panel Sub-Assy, Instrument
[08.2016 -] ZN6..RHD |
SU003-07340 |
— | ||
| replacement | |||||
|
55302C
|
55302C
SU003-08334 Panel Sub-Assy, Instrument[08.2016 -] ZN6..RHD |
SU003-08334 |
US $445.82 |
||
|
55303B
|
55303B
SU003-01907 Panel Sub-Assy, Instrument, Lower[08.2016 -] ZN6..RHD |
SU003-01907 |
US $51.98 |
||
|
55309C
|
55309C
SU003-01966 Reinforcement Sub-Assy, Instrument Panel, Center[08.2016 -] ZN6..RHD |
SU003-01966 |
US $7.43 |
||
|
55312A
|
55312A
SU003-02967 Clip, Instrument Panel[08.2016 -] ZN6 |
SU003-02967 |
US $0.96 |
||
|
55406B
|
55406B
SU003-06608 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[08.2016 -] ZN6..HI,SPE |
SU003-06608 |
US $91.73 |
||
|
55474C
|
55474C
SU003-05936 Garnish, Instrument Cluster Finish Panel, No.1[08.2016 -] ZN6..RHD..HI;ZN6..HI..CHI;ZN6..LHD..(BASE,HI)..EUR; ZN6..RHD..BASE DESTINATION CODE=EK; ZN6..RHD..BASE DESTINATION CODE=ER; ZN6..RHD..BASE DESTINATION CODE=KC; ZN6..RHD..BASE DESTINATION CODE=KE; ZN6..RHD..BASE DESTINATION CODE=EN; ZN6..RHD..B |
SU003-05936 |
US $22.28 |
||
|
55475A
|
55475A
SU003-05937 Garnish, Instrument Cluster Finish Panel, No.2[08.2016 -] ZN6..RHD..HI;ZN6..HI..CHI;ZN6..LHD..(BASE,HI)..EUR; ZN6..RHD..BASE DESTINATION CODE=EK; ZN6..RHD..BASE DESTINATION CODE=ER; ZN6..RHD..BASE DESTINATION CODE=KC; ZN6..RHD..BASE DESTINATION CODE=KE; ZN6..RHD..BASE DESTINATION CODE=EN; ZN6..RHD..B |
SU003-05937 |
US $22.28 |
||
|
55503B
|
55503B
SU003-01956 Cushion(For Glove Compartment)[08.2016 -] ZN6 |
SU003-01956 |
US $1.31 |
||
|
55510A
|
55510A
SU003-04310 Cushion(For Glove Compartment Door)[08.2016 -] ZN6 |
SU003-04310 |
US $1.60 |
||
|
55550
|
55550
SU003-01953 Door Assy, Glove Compartment[08.2016 -] ZN6..RHD |
SU003-01953 |
US $104.83 |
||
|
55557C
|
55557C
SU003-01972 Damper, Glove Compartment Door[08.2016 -] ZN6 |
SU003-01972 |
US $6.26 |
||
|
55558
|
55558
SU003-01964 Reinforcement, Glove Compartment Door[08.2016 -] ZN6..RHD |
SU003-01964 |
US $6.70 |
||
|
SU00301974
|
SU00301974
SU003-01974 New Genuine Part |
SU003-01974 |
US $1.02 |
||
|
SU00302866
|
SU00302866
SU003-02866 Nut, Wire Adjusting, No.1 |
SU003-02866 |
US $1.02 |
||
|
SU00302915
|
SU00302915
SU003-02915 New Genuine Part |
SU003-02915 |
US $0.41 |
||
