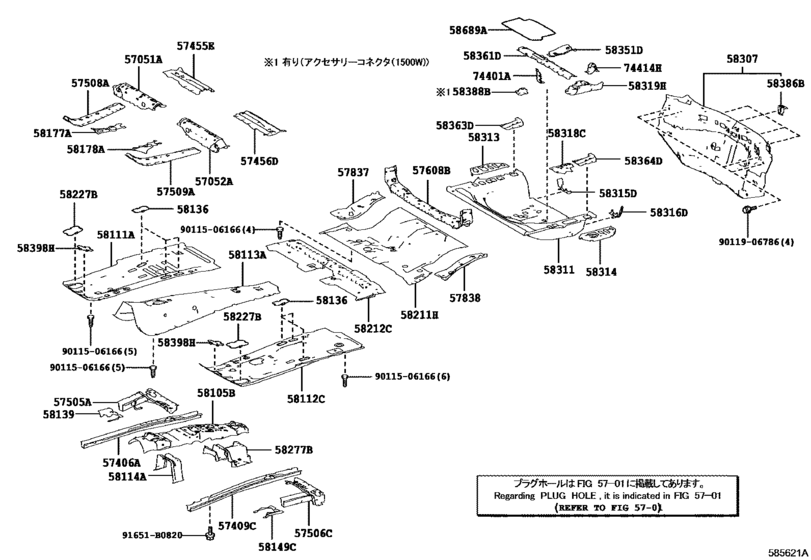

Floor Pan & Lower Back Panel ([01.2014 - ] (1401- )AVU65) Diagram Toyota HARRIER
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- AVU65
- grade
- ELEGC
- body
- WG
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- HARRIER HYBRID
- From
- 01.2014
- To
- 05.2017
- Seating Capacity
- 05S
- Vehicle Model
- Harrier Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-42011 Member Sub-Assy, Front Floor Cross, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57051-42011 |
from US $65.23 |
||
|
57052A
|
57052A
57052-42011 Member Sub-Assy, Front Floor Cross, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57052-42011 |
US $88.82 |
||
|
57406A
|
57406A
57406-42011 Member Sub-Assy, Main Floor Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57406-42011 |
US $109.20 |
||
|
57409C
|
57409C
57409-42010 Member Sub-Assy, Main Floor Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57409-42010 |
US $125.22 |
||
|
57455E
|
57455E
57455-42030 Plate, Front Floor Cross Member, No.3 Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57455-42030 |
US $54.75 |
||
|
57456D
|
57456D
57456-42010
Plate, Front Floor Cross Member, No.3 Lh
[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57456-42010 |
— | ||
|
57505A
|
57505A
57505-42110 Reinforcement Sub-Assy, Front Floor Under[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57505-42110 |
US $90.27 |
||
|
57506C
|
57506C
57506-42050 Reinforcement Sub-Assy, Front Floor Under[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57506-42050 |
US $88.82 |
||
|
57508A
|
57508A
57508-42010 Reinforcement Sub-Assy, Front Floor, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57508-42010 |
US $59.55 |
||
|
57509A
|
57509A
57509-42010 Reinforcement Sub-Assy, Front Floor, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57509-42010 |
US $59.55 |
||
|
57608B
|
57608B
57608-48030 Member Sub-Assy, Rear Floor Cross, No.4[12.2013 - 07.2014] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57608-48030 |
US $221.31 |
||
|
57608B
|
57608B
57608-78010 Member Sub-Assy, Rear Floor Cross, No.4[07.2014 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
57608-78010 |
US $99.01 |
||
|
57837
|
57837
57837-48050 Reinforcement, Rear No.1 Seat Leg, Rear No.3[01.2014 -] AVU65..ELEGC,GRAND,PREM |
57837-48050 |
US $55.33 |
||
|
57838
|
57838
57838-48050 Reinforcement, Rear No.1 Seat Leg, Rear No.4[01.2014 -] AVU65..ELEGC,GRAND,PREM |
57838-48050 |
US $55.33 |
||
|
58105B
|
58105B
58105-48070 Panel Sub-Assy, Front Floor Rear Upper Sub[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58105-48070 |
US $116.48 |
||
|
58111A
|
58111A
58111-42201 Pan, Front Floor, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58111-42201 |
US $155.79 |
||
|
58112C
|
58112C
58112-42011 Pan, Front Floor, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58112-42011 |
US $155.79 |
||
|
58113A
|
58113A
58113-42012 Panel, Front Floor, Center[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58113-42012 |
US $279.55 |
||
|
58114A
|
58114A
58114-42041 Reinforcement, Front Floor Panel[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58114-42041 |
US $20.09 |
||
|
58136
|
58136
58136-42020 Cover, Front Floor Hole[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58136-42020 |
US $2.91 |
||
|
58139
|
58139
58139-42010 Cover, Front Floor Side, Rear[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58139-42010 |
US $11.94 |
||
|
58149C
|
58149C
58149-42011 Plate, Front Floor Side, Rear Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58149-42011 |
US $11.94 |
||
|
58177A
|
58177A
58177-42010 Extension, Front Floor Panel, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58177-42010 |
US $11.94 |
||
|
58178A
|
58178A
58178-42010 Extention, Front Floor Panel, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58178-42010 |
US $15 |
||
|
58211H
|
58211H
58211-48080 Pan, Center Floor[01.2014 -] AVU65..ELEGC,GRAND,PREM |
58211-48080 |
US $196.56 |
||
|
58212C
|
58212C
58202-42020
Pan, Center Floor, Front
[12.2013 - 07.2014] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58202-42020 |
— | ||
| replacement | |||||
|
58212C
|
58212C
58202-78020 Pan Sub-Assy, Center Floor, Front[12.2013 - 07.2014] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58202-78020 |
US $155.79 |
||
|
58212C
|
58212C
58202-78020 Pan Sub-Assy, Center Floor, Front[07.2014 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58202-78020 |
US $155.79 |
||
|
58227B
|
58227B
58227-42010 Plate, Front Floor Panel Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58227-42010 |
US $3.93 |
||
|
58277B
|
58277B
58209-48010 Reinforce Sub-Assy, Drive Shaft Center Support, Rear[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58209-48010 |
US $90.27 |
||
|
58307
|
58307
58307-48100 Panel Sub-Assy, Body Lower Back[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58307-48100 |
US $368.20 |
||
|
58311
|
58311
58311-42130 Pan, Rear Floor[12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58311-42130 |
US $304.30 |
||
| replacement | |||||
|
58311
|
58311
58311-42132 Pan, Rear Floor[12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58311-42132 |
from US $373.80 |
||
|
58311
|
58311
58311-42132 Pan, Rear Floor[05.2015 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58311-42132 |
from US $373.80 |
||
|
58313
|
58313
58313-42040 Panel, Rear Floor Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58313-42040 |
US $19.96 |
||
|
58314
|
58314
58314-42040 Panel, Rear Floor Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58314-42040 |
US $17.50 |
||
|
58315D
|
58315D
58315-42070 Extension, Rear Floor Pan, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58315-42070 |
US $12.16 |
||
|
58316D
|
58316D
58316-42080 Extension, Rear Floor Pan, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58316-42080 |
US $12.16 |
||
|
58318C
|
58318C
58318-42021 Bracket, Rear Floor Crossmember[01.2014 -] AVU65..ELEGC,GRAND,PREM |
58318-42021 |
US $9.32 |
||
|
58319H
|
58319H
58319-48020 Plate, Sub Floor[01.2014 -] AVU65..ELEGC,GRAND,PREM |
58319-48020 |
US $37.71 |
||
|
58351D
|
58351D
58351-48020 Reinforcement, Rear Floor Panel[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58351-48020 |
US $49.55 |
||
|
58361D
|
58361D
58361-42020 Reinforcement, Rear Floor Panel, No.1 Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58361-42020 |
US $49.10 |
||
|
58363D
|
58363D
58363-42010 Reinforcement, Rear Floor Panel, No.2 Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58363-42010 |
US $26.75 |
||
|
58364D
|
58364D
58364-42030 Reinforcement, Rear Floor Panel, No.2 Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58364-42030 |
US $26.75 |
||
|
58386B
|
58386B
58386-74010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58386-74010 |
US $8.32 |
||
|
58388B
|
58388B
58388-48010 Bracket, Plate Rear Floor[01.2014 -] AVU65..ELEGC,GRAND,PREM スペアタイヤ−応急用（１６５／８０Ｄ１７ＳＴ）＆アクセサリー コネクター（ＮＯ．２ ）−有り（１５００Ｗ）; AVU65..ELEGC,GRAND,PREM アクセサリー コネクター（ＮＯ．２）−有り（１５００Ｗ） |
58388-48010 |
US $5.24 |
||
|
58398H
|
58398H
58398-42010 Cover, Floor Under, No.1[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58398-42010 |
US $2.91 |
||
|
58689A
|
58689A
58689-48010 Weight, Rear Floor[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
58689-48010 |
US $110.66 |
||
|
74401A
|
74401A
74401-48010 Bracket Sub-Assy, Battery, Front[01.2014 -] AVU65..ELEGC,GRAND,PREM |
74401-48010 |
US $18.05 |
||
|
74414H
|
74414H
74414-48010 Panel, Battery Carrier, Rear[01.2014 -] AVU65..ELEGC,GRAND,PREM |
74414-48010 |
US $6.55 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
