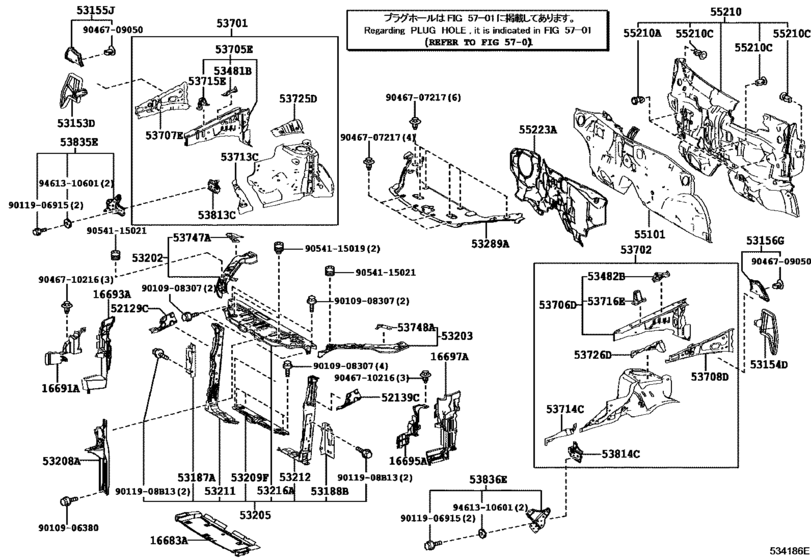

Front Fender Apron & Dash Panel ([12.2013 - ] (1312- )) Diagram Toyota HARRIER
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- AVU65
- grade
- ELEGC
- body
- WG
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- HARRIER HYBRID
- From
- 01.2014
- To
- 05.2017
- Seating Capacity
- 05S
- Vehicle Model
- Harrier Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16683A
|
16683A
16683-36020 Plate, Radiator Lower Air Guide[12.2013 -] 2ARFXE,3ZRFAE..AVU65,ZSU6#..ELEGC,GRAND,PREM |
16683-36020 |
US $105.08 |
||
|
16691A
|
16691A
16691-36020 Plate, Radiator Side Air Guide, Front Rh[01.2014 -] 2ARFXE..AVU65..ELEGC,GRAND,PREM |
16691-36020 |
US $42.56 |
||
|
16693A
|
16693A
16693-36010 Plate, Radiator Side Air Guide, Rear Rh[01.2014 -] 2ARFXE..AVU65..ELEGC,GRAND,PREM |
16693-36010 |
US $78.44 |
||
|
16695A
|
16695A
16695-36020 Plate, Radiator Side Air Guide Front Lh[01.2014 -] 2ARFXE..AVU65..ELEGC,GRAND,PREM |
16695-36020 |
US $42.56 |
||
|
16697A
|
16697A
16697-36010 Plate, Radiator Side Air Guide, Rear Lh[01.2014 -] 2ARFXE..AVU65..ELEGC,GRAND,PREM |
16697-36010 |
US $73.87 |
||
|
52129C
|
52129C
52129-48020 Arm, Front Bumper, Upper No.2 Rh[12.2013 - 08.2016] AVU65,ZSU6#..ELEGC,GRAND,PREM |
52129-48020 |
US $12.67 |
||
| replacement | |||||
|
52129C
|
52129C
52129-48021 Arm, Front Bumper, Upper No.2 Rh[12.2013 - 08.2016] AVU65,ZSU6#..ELEGC,GRAND,PREM |
52129-48021 |
US $19.91 |
||
|
52129C
|
52129C
52129-48021 Arm, Front Bumper, Upper No.2 Rh[09.2016 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
52129-48021 |
US $19.91 |
||
|
52139C
|
52139C
52139-48010 Arm, Front Bumper, Upper No.2 Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
52139-48010 |
US $17.33 |
||
|
53153D
|
53153D
53153-48020 Guide, Radiator Grille Side Air, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53153-48020 |
US $21.58 |
||
|
53154D
|
53154D
53154-48020 Guide, Radiator Grille Side Air, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53154-48020 |
US $21.58 |
||
|
53155J
|
53155J
53155-48020 Seal, Radiator Grille, No.1[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53155-48020 |
US $8 |
||
|
53156G
|
53156G
53156-48010 Seal, Radiator Grille, No.2[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53156-48010 |
US $5.23 |
||
|
53187A
|
53187A
53187-42010 Stay, Radiator Support, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53187-42010 |
from US $26.77 |
||
|
53188B
|
53188B
53188-42010 Stay, Radiator Support, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53188-42010 |
from US $25.45 |
||
|
53202
|
53202
53202-48090 Support Sub-Assy, Radiator, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53202-48090 |
US $82.88 |
||
|
53203
|
53203
53203-48130 Support Sub-Assy, Radiator, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53203-48130 |
US $68.70 |
||
|
53205
|
53205
53205-48030 Support Sub-Assy, Radiator, Upper[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53205-48030 |
US $400.40 |
||
|
53208A
|
53208A
53208-48090 Support Sub-Assy, Hood Lock[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53208-48090 |
US $112.48 |
||
|
53209F
|
53209F
53209-48010 Brace Sub-Assy, Radiator Support To Cross Member, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53209-48010 |
US $100.64 |
||
|
53211
|
53211
53211-48901 Support, Radiator, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53211-48901 |
US $131.72 |
||
|
53212
|
53212
53212-48901 Support, Radiator, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53212-48901 |
US $131.72 |
||
|
53216A
|
53216A
53216-48902 Support, Radiator, Upper[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53216-48902 |
US $195.84 |
||
|
53289A
|
53289A
53289-48020 Cover, Radiator Support Opening[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53289-48020 |
US $100.46 |
||
|
53481B
|
53481B
53481-48050 Bracket, Hood Support, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53481-48050 |
US $8.30 |
||
|
53482B
|
53482B
53482-48040 Bracket, Hood Support Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53482-48040 |
US $8.30 |
||
|
53701
|
53701
53701-48090 Apron Sub-Assy, Front Fender, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53701-48090 |
US $302.85 |
||
|
53702
|
53702
53702-48060 Apron Sub-Assy, Front Fender, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53702-48060 |
US $302.85 |
||
|
53705E
|
53705E
53705-48020 Member Sub-Assy, Front Apron To Cowl Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53705-48020 |
US $61.88 |
||
|
53706D
|
53706D
53706-48010 Member Sub-Assy, Front Apron To Cowl Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53706-48010 |
US $61.88 |
||
|
53707E
|
53707E
53707-42010 Apron Sub-Assy, Fender Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53707-42010 |
US $44.26 |
||
|
53708D
|
53708D
53708-42010 Apron Sub-Assy, Fender Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53708-42010 |
US $48.64 |
||
|
53713C
|
53713C
53713-42040 Extension, Front Fender Apron, Front Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53713-42040 |
US $25.38 |
||
|
53714C
|
53714C
53714-42041 Extension, Front Fender Apron, Front Lh[01.2014 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53714-42041 |
US $24.62 |
||
|
53715E
|
53715E
53715-48010 Extension, Front Fender Apron, Rear Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53715-48010 |
US $11.36 |
||
|
53716E
|
53716E
53716-48010 Extension, Front Fender Apron, Rear Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53716-48010 |
US $11.36 |
||
|
53725D
|
53725D
53725-42010 Reinforcement, Front Spring Support, No.2 Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53725-42010 |
US $16.89 |
||
|
53726D
|
53726D
53726-42010 Apron, Front Fender No.2 Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53726-42010 |
US $16.89 |
||
|
53747A
|
53747A
53747-48010 Extension, Apron Fender Side, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53747-48010 |
from US $6.12 |
||
|
53748A
|
53748A
53748-48010 Extension, Apron Fender Side, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53748-48010 |
US $6.12 |
||
|
53813C
|
53813C
53813-42030 Extension, Front Fender, Rh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53813-42030 |
from US $19.85 |
||
|
53814C
|
53814C
53814-42030 Extension, Front Fender, Lh[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
53814-42030 |
from US $20.12 |
||
|
53835E
|
53835E
53803-48020 Brace, Front Fender To Apron, Rh[12.2013 - 05.2017] AVU65,ZSU6# |
53803-48020 |
US $40.74 |
||
|
53836E
|
53836E
53804-48020 Brace, Front Fender To Apron, Lh[12.2013 - 05.2017] AVU65,ZSU6# |
53804-48020 |
US $31.92 |
||
|
55101
|
55101
55101-48210 Panel Sub-Assy, Dash[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55101-48210 |
US $266.45 |
||
|
55210
|
55210
55210-48180 Insulator Assy, Dash Panel[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55210-48180 |
US $123.76 |
||
|
55210A
|
55210A
90467-11122 Clip[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
90467-11122 |
US $1.60 |
||
|
55210C
|
55210C
90467-13079 Clip[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
90467-13079 |
US $1.92 |
||
|
55223A
|
55223A
55223-48190 Insulator, Dash Panel, Outer[12.2013 - 01.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55223-48190 |
US $82.99 |
||
|
55223A
|
55223A
55223-48220
Insulator, Dash Panel, Outer
[01.2015 - 08.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55223-48220 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-48221 Insulator, Dash Panel, Outer[01.2015 - 08.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55223-48221 |
US $82.99 |
||
|
55223A
|
55223A
55223-48221 Insulator, Dash Panel, Outer[09.2015 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
55223-48221 |
US $82.99 |
||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.44 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9010908307
|
9010908307
90109-08307 New Genuine Part |
90109-08307 |
US $1.28 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $0.84 |
||
|
9046709050
|
9046709050
90467-09050 Clip(For Hood Insulator) |
90467-09050 |
from US $0.86 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.11 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.20 |
||
|
9054115021
|
9054115021
90541-15021 Cushion, Hood Bumper |
90541-15021 |
from US $4.32 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
