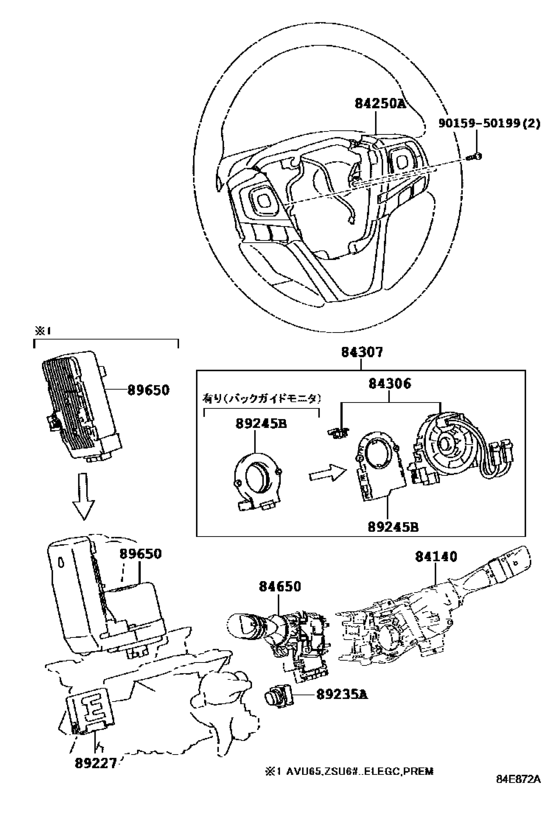

Switch & Relay & Computer ([12.2013 - ] STEERING (1312- )) Diagram Toyota HARRIER
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- AVU65
- grade
- ELEGC
- body
- WG
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- HARRIER HYBRID
- From
- 01.2014
- To
- 05.2017
- Seating Capacity
- 05S
- Vehicle Model
- Harrier Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33220 Switch Assy, Headlamp Dimmer[12.2013 - 11.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM 寒冷地仕様 |
84140-33220 |
US $146.52 |
||
|
84140
|
84140
84140-33221 Switch Assy, Headlamp Dimmer[12.2015 -] AVU65,ZSU6#..ELEGC,GRAND,PREM 寒冷地仕様 |
84140-33221 |
US $121.36 |
||
|
84140
|
84140
84140-33230 Switch Assy, Headlamp Dimmer[12.2013 - 11.2015] AVU65,ZSU6#..ELEGC,GRAND,PREM |
84140-33230 |
US $133.20 |
||
|
84140
|
84140
84140-33231 Switch Assy, Headlamp Dimmer[12.2015 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
84140-33231 |
US $111 |
||
|
84250A
|
84250A
84250-48390 Switch Assy, Steering Pad[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND |
84250-48390 |
US $234.42 |
||
|
84250A
|
84250A
84250-48420 Switch Assy, Steering Pad[12.2013 -] AVU65,ZSU6#..ELEGC クルーズコントロール−有り（レーダークルーズコントロール） |
84250-48420 |
US $241.70 |
||
|
84306
|
84306
84308-12010 Cable Sub-Assy, Spiral[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
84308-12010 |
from US $247.68 |
||
|
84307
|
84307
84307-30160 Cable Sub-Assy, Spiral W/sensor[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND オーディオ−ナビ; AVU65,ZSU6#..ELEGC,PREM オーディオ−ナビ＋ＪＢＬ |
84307-30160 |
from US $310.97 |
||
|
84307
|
84307
84307-33090 Cable Sub-Assy, Spiral W/sensor[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
84307-33090 |
US $530.60 |
||
|
84650
|
84650
84652-12B00 Switch Assy, Windshield Wiper[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND |
84652-12B00 |
US $142.08 |
||
|
89245B
|
89245B
89245-39025
Sensor, Steering
[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
89245-39025 |
— | ||
| replacement | |||||
|
89245B
|
89245B
8924B-33010 Sensor, Steering[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND,PREM |
8924B-33010 |
US $312.20 |
||
|
89245B
|
89245B
89245-39055 Sensor, Steering[12.2013 -] AVU65,ZSU6#..ELEGC,GRAND オーディオ−ナビ; AVU65,ZSU6#..ELEGC,PREM オーディオ−ナビ＋ＪＢＬ |
89245-39055 |
US $196.56 |
||
|
89650
|
89650
89650-48570 Computer Assy, Power Steering[01.2014 - 06.2015] AVU65..ELEGC,GRAND |
89650-48570 |
US $637.73 |
||
|
89650
|
89650
89650-48571 Computer Assy, Power Steering[06.2015 -] AVU65..ELEGC,GRAND |
89650-48571 |
US $579.49 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
