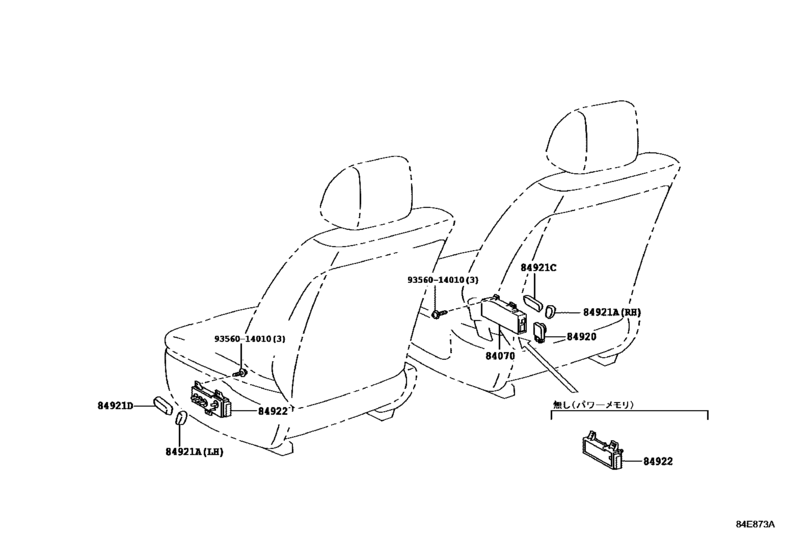

Switch & Relay & Computer ([12.2013 - ] SEAT (1312- )) Diagram Toyota HARRIER
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- AVU65
- grade
- ELEGC
- body
- WG
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- HARRIER HYBRID
- From
- 01.2014
- To
- 05.2017
- Seating Capacity
- 05S
- Vehicle Model
- Harrier Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84070
|
84070
84070-48060
Computer & Switch Assy, Position Control
[12.2013 - 04.2015] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革 |
84070-48060 |
— | ||
| replacement | |||||
|
84070
|
84070
84070-48061 Computer & Switch Assy, Position Control[12.2013 - 04.2015] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革 |
84070-48061 |
US $340.70 |
||
|
84070
|
84070
84070-48061 Computer & Switch Assy, Position Control[05.2015 -] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革 |
84070-48061 |
US $340.70 |
||
|
84920
|
84920
84920-22010-C0 Switch Assy, Power SeatFRONT POWER SEAT(FOR LUMBAR) [12.2013 -] AVU65,ZSU6#..ELEGC シート表皮−本革,BLACK,TRIM2#,4#; AVU65,ZSU6#..PREM シート表皮−本革,BLACK,TRIM1#,2#,4# |
84920-22010-C0 |
from US $69.16 |
||
|
84920
|
84920
84920-60090-C0 Switch Assy, Power SeatPOWER SEAT [12.2013 -] AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4#; AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
84920-60090-C0 |
from US $40.19 |
||
|
84921A
|
84921A
84921-22080-C0 Knob, Power Seat Switch (For Reclining)[06.2015 -] AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4#,右側; AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4#,右側 |
84921-22080-C0 |
US $6.74 |
||
|
84921A
|
84921A
84921-22090-C0 Knob, Power Seat Switch (For Reclining)[06.2015 -] AVU65,ZSU6#..ELEGC シート表皮−本革,BLACK,TRIM2#,4#,左側; AVU65,ZSU6#..PREM シート表皮−本革,BLACK,TRIM1#,2#,4#,左側 |
84921-22090-C0 |
US $8.48 |
||
|
84921A
|
84921A
84921-60170-C0 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4#,右側 |
84921-60170-C0 |
from US $6.86 |
||
|
84921A
|
84921A
84921-60180-C0 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革,BLACK,TRIM2#,4#,左側 |
84921-60180-C0 |
US $8 |
||
|
84921C
|
84921C
84921-22070-C0 Knob, Power Seat Switch (For Slide & Vertical)[06.2015 -] AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4#,スライド＆バーチカル用; AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4#,スライド＆バーチカル用; AVU65,ZSU6#..PREM シート表皮−本革,BLACK,TRIM1#,2#,4#,スライド＆バーチカル用 |
84921-22070-C0 |
US $6.74 |
||
|
84921C
|
84921C
84921-60150-C0 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4#,スライド＆バーチカル用 |
84921-60150-C0 |
from US $10.14 |
||
|
84921D
|
84921D
84921-22100-C0 Knob, Power Seat Switch (For Slide & Vertical)[06.2015 -] AVU65,ZSU6#..ELEGC シート表皮−本革,BLACK,TRIM2#,4#,スライド用; AVU65,ZSU6#..PREM シート表皮−本革,BLACK,TRIM1#,2#,4#,スライド用 |
84921-22100-C0 |
US $8.48 |
||
|
84921D
|
84921D
84921-60200-C0 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [12.2013 - 05.2015] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革,BLACK,TRIM2#,4#,スライド用 |
84921-60200-C0 |
US $11.36 |
||
|
84922
|
84922
84922-60170 Switch, Front Power SeatFRONT POWER SEAT, LH [12.2013 -] AVU65,ZSU6#..ELEGC,PREM シート表皮−本革 |
84922-60170 |
US $86.31 |
||
|
84922
|
84922
84922-60190 Switch, Front Power SeatFRONT POWER SEAT, RH [12.2013 -] AVU65,ZSU6#..ELEGC,PREM 右側 |
84922-60190 |
from US $83.16 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
