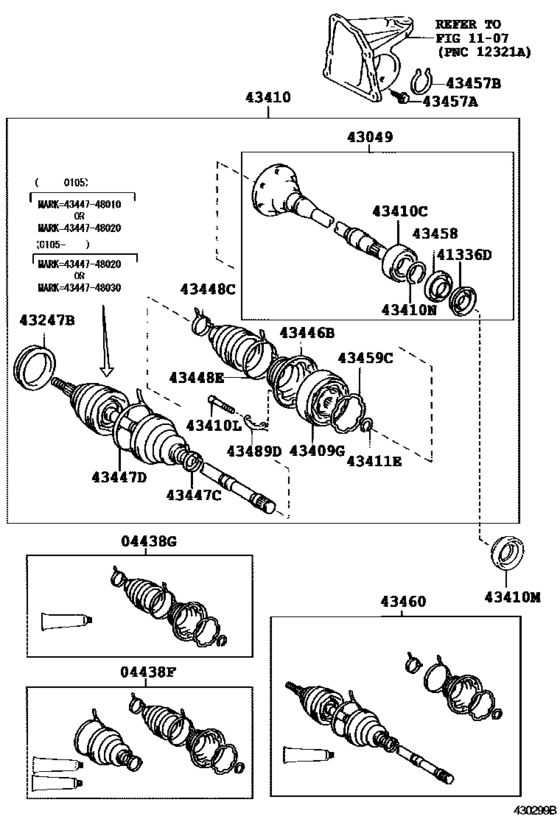

Front Drive Shaft ([12.1997 - ] RH (9712- )MCU10) Diagram Toyota HARRIER
- Year
- 1997 - 2003
- Sales region
- Japan
- Frame
- MCU10
- body
- WG
- ENGINE
- 1MZFE
- Model
- HARRIER
- From
- 12.1997
- To
- 02.2003
- Vehicle Model
- Harrier
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-33090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 -] MCU10 PNC43410:ｲﾗｽﾄｻﾝｼｮｳ |
04438-33090 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04428-33060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 -] MCU10 PNC43410:ｲﾗｽﾄｻﾝｼｮｳ |
04428-33060 |
US $141.52 |
||
|
04438F
|
04438F
04438-48030
Boot Kit, Rear Drive Shaft
[12.1997 - 12.1999] MCU10 |
04438-48030 |
— | ||
|
04438F
|
04438F
04438-48031 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCU10 PNC43410:ｲﾗｽﾄｻﾝｼｮｳ |
04438-48031 |
US $165.98 |
||
| replacement | |||||
|
04438F
|
04438F
04428-48090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCU10 PNC43410:ｲﾗｽﾄｻﾝｼｮｳ |
04428-48090 |
from US $30.50 |
||
|
04438G
|
04438G
04438-33011
Boot Kit, Rear Drive Shaft Inboard Joint
[12.1997 - 12.1999] MCU10 |
04438-33011 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1997 - 12.1999] MCU10 |
04438-33012 |
US $103.81 |
||
|
04438G
|
04438G
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1999 -] MCU10 |
04438-33012 |
US $103.81 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[12.1997 -] ACU10,MCU10,SXU10 |
41336-12020 |
from US $3.51 |
||
|
43049
|
43049
43049-33020 Shaft Sub-Assy, Front Drive Flange[12.1997 - 08.1999] MCU10 |
43049-33020 |
US $396.03 |
||
|
43049
|
43049
43049-33050 Shaft Sub-Assy, Front Drive Flange[08.1999 -] MCU10 |
43049-33050 |
US $410.59 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[12.1997 -] ACU1#,MCU1#,SXU1# |
43247-12010 |
from US $9.50 |
||
|
43409G
|
43409G
43409-17010
Joint Sub-Assy, Front Drive Shaft Cross Groove
[12.1997 - 08.1999] MCU10 |
43409-17010 |
— | ||
|
43409G
|
43409G
43409-28010 Joint Sub-Assy, Front Drive Shaft Cross Groove, Rh[08.1999 -] MCU10 |
43409-28010 |
from US $339.25 |
||
|
43410
|
43410
43410-33150 Shaft Assy, Front Drive, Rh[12.1997 - 08.1999] MCU10 |
43410-33150 |
US $1,071.62 |
||
| replacements | |||||
|
43410
|
43410
43410-33202 Shaft Assy, Front Drive, Rh[12.1997 - 08.1999] MCU10 |
43410-33202 |
US $887.99 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[12.1997 - 08.1999] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43410
|
43410
43410-33200 Shaft Assy, Front Drive, Rh[08.1999 - 08.2000] MCU10 |
43410-33200 |
US $1,071.62 |
||
| replacements | |||||
|
43410
|
43410
43410-33202 Shaft Assy, Front Drive, Rh[08.1999 - 08.2000] MCU10 |
43410-33202 |
US $887.99 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[08.1999 - 08.2000] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43410
|
43410
43410-33201 Shaft Assy, Front Drive, Rh[08.2000 - 05.2001] MCU10 |
43410-33201 |
US $1,071.62 |
||
| replacement | |||||
|
43410
|
43410
43410-33202 Shaft Assy, Front Drive, Rh[08.2000 - 05.2001] MCU10 |
43410-33202 |
US $887.99 |
||
|
43410
|
43410
43410-33202 Shaft Assy, Front Drive, Rh[05.2001 -] MCU10 |
43410-33202 |
US $887.99 |
||
|
43410C
|
43410C
90363-41002 Bearing (For Front Drive Shaft)[11.1999 -] ACU10,MCU10 |
90363-41002 |
US $40.04 |
||
| replacement | |||||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[11.1999 -] ACU10,MCU10 |
90363-41003 |
from US $25.02 |
||
|
43410C
|
43410C
90369-41001
Bearing(For Rear Drive Shaft)
[12.1997 - 11.1999] MCU10 |
90369-41001 |
— | ||
| replacement | |||||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[12.1997 - 11.1999] MCU10 |
90363-41003 |
from US $25.02 |
||
|
43410L
|
43410L
90110-10007
Bolt (For Propeller Shaft)
[12.1997 - 08.1999] MCU10 |
90110-10007 |
— | ||
| replacement | |||||
|
43410L
|
43410L
90110-10015 Bolt(For Rear Drive Shaft)[12.1997 - 08.1999] MCU10 |
90110-10015 |
from US $1.42 |
||
|
43410L
|
43410L
90110-10015 Bolt(For Rear Drive Shaft)[08.1999 -] MCU10 |
90110-10015 |
from US $1.42 |
||
|
43410M
|
43410M
90311-40010 Seal, Oil (For Front Differential Oil Seal Retainer)[12.1997 - 12.2002] MCU10,SXU10 |
90311-40010 |
US $5.82 |
||
| replacement | |||||
|
43410M
|
43410M
90311-40028 Oil Seal, Front Drive Shaft, Rh[12.1997 - 12.2002] MCU10,SXU10 |
90311-40028 |
from US $7.17 |
||
|
43410M
|
43410M
90311-40028 Oil Seal, Front Drive Shaft, Rh[12.2002 -] MCU10 |
90311-40028 |
from US $7.17 |
||
|
43410N
|
43410N
90520-38015 Ring, Shaft Snap(For Rear Drive Shaft)[12.1997 -] ACU10,MCU10,SXU10 |
90520-38015 |
from US $1.79 |
||
|
43411E
|
43411E
90520-26028 Ring, Snap (For Rear Drive Shaft)[12.1997 -] MCU10 |
90520-26028 |
from US $1.97 |
||
|
43446B
|
43446B
43446-17010
Cover, Rear Axle Inboard Joint
[12.1997 - 12.1999] MCU10 |
43446-17010 |
— | ||
|
43446B
|
43446B
43446-28010 Cover, Front Axle Inboard Joint, Rh[12.1999 -] MCU10 |
43446-28010 |
US $16.31 |
||
|
43447C
|
43447C
42345-48030 Clamp (For Rear Drive Shaft Outboard Joint Boot)[12.1997 -] MCU10 内径＝３５．０ |
42345-48030 |
US $5.53 |
||
|
43447D
|
43447D
42345-44010 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCU10 内径＝９８．７ |
42345-44010 |
US $7.43 |
||
| replacement | |||||
|
43447D
|
43447D
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCU10 内径＝９８．７ |
42345-44020 |
US $7.57 |
||
|
43447D
|
43447D
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.2001 -] MCU10 |
42345-44020 |
US $7.57 |
||
|
43447D
|
43447D
42345-48040 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[12.1997 - 05.2001] MCU10 内径＝１０１．２ |
42345-48040 |
US $8.01 |
||
|
43448C
|
43448C
42345-14010 Clamp, Rear Drive Shaft Boot[12.1997 -] MCU10 |
42345-14010 |
US $12.54 |
||
|
43448E
|
43448E
90949-01340 Clamp (For Rear Drive Shaft Inboard Joint Boot)[12.1997 -] MCU10 |
90949-01340 |
US $3.79 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[12.1997 -] MCU10,SXU10 ＊１０−１．２５ＰＸ１９．８−８．３ |
90119-10461 |
from US $1.13 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[12.1997 -] MCU10,SXU10 |
90521-78002 |
from US $2.32 |
||
|
43458
|
43458
43458-12010 Cover, Front Drive Shaft Dust[12.1997 -] ACU10,MCU10,SXU10 |
43458-12010 |
from US $7.62 |
||
|
43459C
|
43459C
43459-17010 Gasket, Rear Axle Inboard Joint End Cover[12.1997 -] MCU10 |
43459-17010 |
US $6.63 |
||
|
43460
|
43460
43470-39207 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCU10 |
43470-39207 |
US $551.82 |
||
| replacements | |||||
|
43460
|
43460
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCU10 |
43470-39366 |
US $604.24 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[12.1997 - 12.1999] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43460
|
43460
43470-39209 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCU10 |
43470-39209 |
US $604.24 |
||
| replacements | |||||
|
43460
|
43460
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCU10 |
43470-39366 |
US $604.24 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[12.1999 - 08.2000] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43460
|
43460
43470-39365 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCU10 |
43470-39365 |
US $604.24 |
||
| replacement | |||||
|
43460
|
43460
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCU10 |
43470-39366 |
US $604.24 |
||
|
43460
|
43460
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[05.2001 -] MCU10 |
43470-39366 |
US $604.24 |
||
|
43489D
|
43489D
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint[12.1997 -] MCU10 |
43489-17010 |
from US $5.73 |
||
