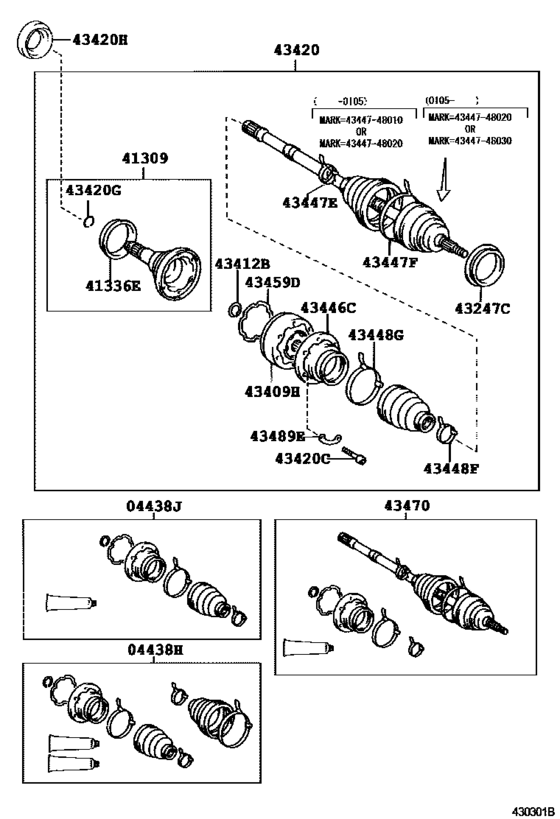

Front Drive Shaft ([12.1997 - ] LH (9712- )MCU10) Diagram Toyota HARRIER
- Year
- 1997 - 2003
- Sales region
- Japan
- Frame
- MCU10
- body
- WG
- ENGINE
- 1MZFE
- Model
- HARRIER
- From
- 12.1997
- To
- 02.2003
- Vehicle Model
- Harrier
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-33090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 -] MCU10 PNC43420:ｲﾗｽﾄｻﾝｼｮｳ |
04438-33090 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-33060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 -] MCU10 PNC43420:ｲﾗｽﾄｻﾝｼｮｳ |
04428-33060 |
US $141.52 |
||
|
04438H
|
04438H
04438-48030
Boot Kit, Rear Drive Shaft
[12.1997 - 12.1999] MCU10 |
04438-48030 |
— | ||
|
04438H
|
04438H
04438-48031 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCU10 PNC43420:ｲﾗｽﾄｻﾝｼｮｳ |
04438-48031 |
US $165.98 |
||
| replacement | |||||
|
04438H
|
04438H
04428-48090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCU10 PNC43420:ｲﾗｽﾄｻﾝｼｮｳ |
04428-48090 |
from US $30.50 |
||
|
04438J
|
04438J
04438-33011
Boot Kit, Rear Drive Shaft Inboard Joint
[12.1997 - 12.1999] MCU10 |
04438-33011 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1997 - 12.1999] MCU10 |
04438-33012 |
US $103.81 |
||
|
04438J
|
04438J
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1999 -] MCU10 |
04438-33012 |
US $103.81 |
||
|
41309
|
41309
41309-28030 Shaft Sub-Assy, Differential Side Gear, Lh[08.1999 -] MCU10 |
41309-28030 |
US $197.43 |
||
|
41309
|
41309
41309-48010 Shaft Sub-Assy, Differential Side Gear, Lh[12.1997 - 08.1999] MCU10 |
41309-48010 |
US $202.38 |
||
|
41336E
|
41336E
41336-17020 Cover, Dust(For Differential Side Gear Shaft)[12.1997 -] ACU15,MCU1#,SXU1# |
41336-17020 |
US $6.29 |
||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[12.1997 -] ACU1#,MCU1#,SXU1# |
43247-12010 |
from US $9.50 |
||
|
43409H
|
43409H
43409-17010
Joint Sub-Assy, Front Drive Shaft Cross Groove
[12.1997 - 08.1999] MCU10 |
43409-17010 |
— | ||
|
43409H
|
43409H
43409-28010 Joint Sub-Assy, Front Drive Shaft Cross Groove, Rh[08.1999 -] MCU10 |
43409-28010 |
from US $339.25 |
||
|
43412B
|
43412B
90520-26028 Ring, Snap (For Rear Drive Shaft)[12.1997 -] MCU10 |
90520-26028 |
from US $1.97 |
||
|
43420
|
43420
43420-48020 Shaft Assy, Front Drive, Lh[12.1997 - 08.1999] MCU10 |
43420-48020 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[12.1997 - 08.1999] MCU10 |
43420-48042 |
— | ||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[12.1997 - 08.1999] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43420
|
43420
43420-48040 Shaft Assy, Front Drive, Lh[08.1999 - 08.2000] MCU10 |
43420-48040 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[08.1999 - 08.2000] MCU10 |
43420-48042 |
— | ||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[08.1999 - 08.2000] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43420
|
43420
43420-48041 Shaft Assy, Front Drive, Lh[08.2000 - 05.2001] MCU10 |
43420-48041 |
US $962.42 |
||
| replacement | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[08.2000 - 05.2001] MCU10 |
43420-48042 |
— | ||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[05.2001 -] MCU10 |
43420-48042 |
— | ||
|
43420C
|
43420C
90110-10007
Bolt (For Propeller Shaft)
[12.1997 - 08.1999] MCU10 |
90110-10007 |
— | ||
| replacement | |||||
|
43420C
|
43420C
90110-10015 Bolt(For Rear Drive Shaft)[12.1997 - 08.1999] MCU10 |
90110-10015 |
from US $1.42 |
||
|
43420C
|
43420C
90110-10015 Bolt(For Rear Drive Shaft)[08.1999 -] MCU10 |
90110-10015 |
from US $1.42 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[12.1997 -] ACU10,MCU10,SXU10 |
90521-33002 |
from US $1.76 |
||
|
43420H
|
43420H
90311-50023
Oil Seal, Front Drive Shaft, Lh
[12.1997 - 12.2002] ACU15,MCU1#,SXU1# |
90311-50023 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50052 Oil Seal, Front Drive Shaft, Lh[12.1997 - 12.2002] ACU15,MCU1#,SXU1# |
90311-50052 |
from US $12.19 |
||
|
43420H
|
43420H
90311-50029 Oil Seal, Front Drive Shaft, Lh[12.2002 -] MCU1# |
90311-50029 |
from US $12.19 |
||
|
43446C
|
43446C
43446-17010
Cover, Rear Axle Inboard Joint
[12.1997 - 12.1999] MCU10 |
43446-17010 |
— | ||
|
43446C
|
43446C
43446-28010 Cover, Front Axle Inboard Joint, Rh[12.1999 -] MCU10 |
43446-28010 |
US $16.31 |
||
|
43447E
|
43447E
42345-48030 Clamp (For Rear Drive Shaft Outboard Joint Boot)[12.1997 -] MCU10 内径＝３５．０ |
42345-48030 |
US $5.53 |
||
|
43447F
|
43447F
42345-44010 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCU10 内径＝９８．７ |
42345-44010 |
US $7.43 |
||
| replacement | |||||
|
43447F
|
43447F
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCU10 内径＝９８．７ |
42345-44020 |
US $7.57 |
||
|
43447F
|
43447F
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.2001 -] MCU10 |
42345-44020 |
US $7.57 |
||
|
43447F
|
43447F
42345-48040 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[12.1997 - 05.2001] MCU10 内径＝１０１．２ |
42345-48040 |
US $8.01 |
||
|
43448F
|
43448F
42345-14010 Clamp, Rear Drive Shaft Boot[12.1997 -] MCU10 |
42345-14010 |
US $12.54 |
||
|
43448G
|
43448G
90949-01340 Clamp (For Rear Drive Shaft Inboard Joint Boot)[12.1997 -] MCU10 |
90949-01340 |
US $3.79 |
||
|
43459D
|
43459D
43459-17010 Gasket, Rear Axle Inboard Joint End Cover[12.1997 -] MCU10 |
43459-17010 |
US $6.63 |
||
|
43470
|
43470
43470-39207 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCU10 |
43470-39207 |
US $551.82 |
||
| replacements | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCU10 |
43470-39366 |
US $604.24 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[12.1997 - 12.1999] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43470
|
43470
43470-39209 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCU10 |
43470-39209 |
US $604.24 |
||
| replacements | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCU10 |
43470-39366 |
US $604.24 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[12.1999 - 08.2000] MCU10 |
90178-22001 |
from US $3.98 |
||
|
43470
|
43470
43470-39365 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCU10 |
43470-39365 |
US $604.24 |
||
| replacement | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCU10 |
43470-39366 |
US $604.24 |
||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[05.2001 -] MCU10 |
43470-39366 |
US $604.24 |
||
|
43489E
|
43489E
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint[12.1997 -] MCU10 |
43489-17010 |
from US $5.73 |
||
