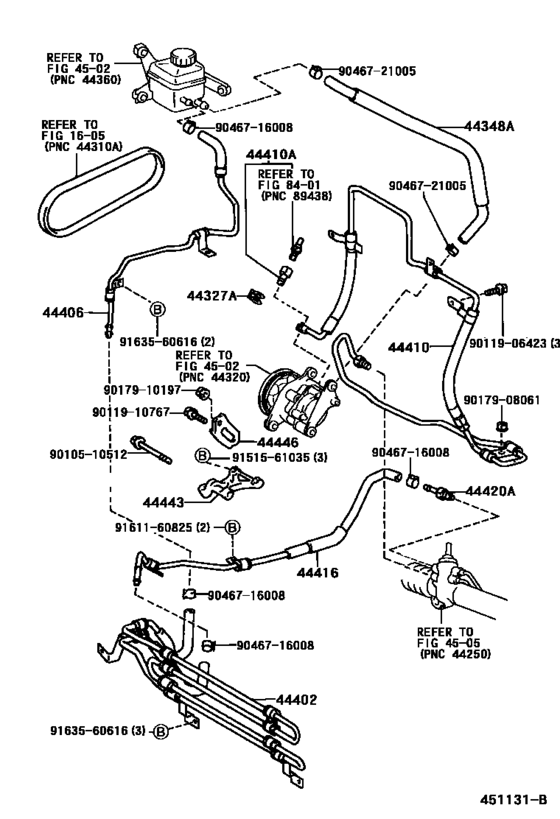

Power Steering Tube ([12.1997 - ] (9712- )MCU10 ; (9801- )MCU15) Diagram Toyota HARRIER
- Year
- 1997 - 2003
- Sales region
- Japan
- Frame
- MCU10
- body
- WG
- ENGINE
- 1MZFE
- Model
- HARRIER
- From
- 12.1997
- To
- 02.2003
- Vehicle Model
- Harrier
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[12.1997 -] ACU1#,MCU1#,SXU1# |
44327-30030 |
from US $2.15 |
||
|
44348A
|
44348A
44348-48010 Hose, Oil Reservoir To Pump, No.1[12.1997 -] MCU1# |
44348-48010 |
US $81.84 |
||
|
44402
|
44402
44402-48010 Cooler Sub-Assy, Power Steering Oil, No.1[12.1997 -] MCU1# |
44402-48010 |
US $232.96 |
||
|
44406
|
44406
44406-48020
Tube Sub-Assy, Return
[12.1997 -] MCU1#,SXU1# |
44406-48020 |
— | ||
|
44410
|
44410
44410-48020 Tube Assy, Pressure Feed[12.1997 - 11.2000] MCU1# |
44410-48020 |
US $492.13 |
||
| replacement | |||||
|
44410
|
44410
44410-48050 Tube Assy, Pressure Feed[12.1997 - 11.2000] MCU1# |
44410-48050 |
US $492.13 |
||
|
44410
|
44410
44410-48050 Tube Assy, Pressure Feed[11.2000 -] MCU1# |
44410-48050 |
US $492.13 |
||
|
44410A
|
44410A
44338-33090 Bolt, Union(For Pressure Feed Tube)[12.1997 -] MCU1#,SXU1# |
44338-33090 |
US $57.79 |
||
|
44416
|
44416
44416-48010
Tube, Return(For Steering Gear Outlet)
[12.1997 -] MCU1#,SXU1# |
44416-48010 |
— | ||
|
44420A
|
44420A
44420-17010 Tube, Return(For Steering Gear Outlet)[12.1997 -] ACU1#,MCU1#,SXU1# |
44420-17010 |
US $13.62 |
||
|
44443
|
44443
44443-33041 Bracket, Pump[12.1997 -] MCU1# |
44443-33041 |
US $49.80 |
||
|
44446
|
44446
44446-33010 Strut, Adjusting[12.1997 -] MCU1# |
44446-33010 |
US $11.36 |
||
|
9010510512
|
9010510512
90105-10512 New Genuine Part |
90105-10512 |
US $4.08 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011910767
|
9011910767
90119-10767 New Genuine Part |
90119-10767 |
US $8.06 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9017910197
|
9017910197
90179-10197 New Genuine Part |
90179-10197 |
US $2.97 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.94 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
