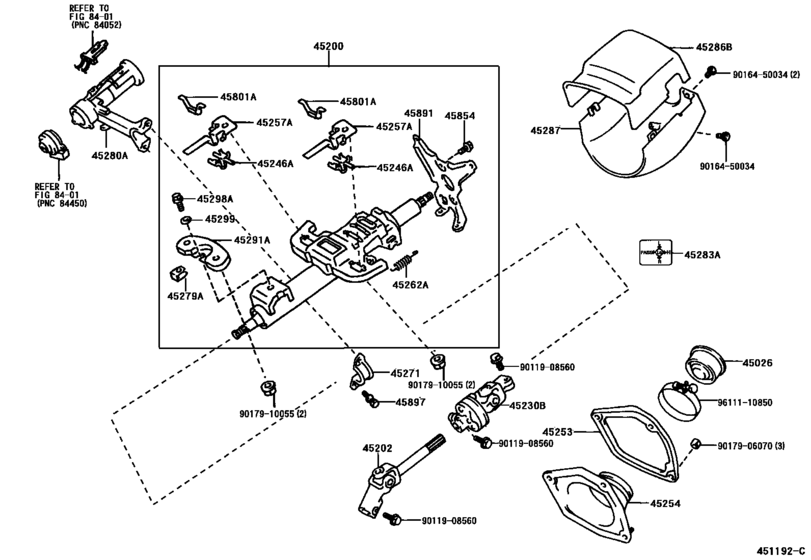

Steering Column & Shaft ([12.1997 - 11.2000] (9712-0011)MCU10 ; (9801-0011)MCU15) Diagram Toyota HARRIER
- Year
- 1997 - 2003
- Sales region
- Japan
- Frame
- MCU10
- body
- WG
- ENGINE
- 1MZFE
- Model
- HARRIER
- From
- 12.1997
- To
- 02.2003
- Vehicle Model
- Harrier
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45026
|
45026
45026-48030 Cover Sub-Assy, Steering Column Hole, No.2[12.1997 - 02.2003] ACU1#,MCU1#,SXU1# |
45026-48030 |
US $26.35 |
||
|
45200
|
45200
45250-48010 Post Assy, Steering[12.1997 -] MCU1# |
45250-48010 |
US $546 |
||
|
45202
|
45202
45202-48010 Shaft Sub-Assy, Steering Intermediate[12.1997 - 02.2003] ACU1#,MCU1#,SXU1# |
45202-48010 |
US $207.92 |
||
|
45230B
|
45230B
45230-33040 Joint Assy, Steering Shaft Universal[09.1998 - 02.2003] ACU1#,MCU1#,SXU1# |
45230-33040 |
from US $59.69 |
||
|
45230B
|
45230B
45230-48010 Joint Assy, Steering Shaft Universal[12.1997 - 09.1998] MCU1#,SXU1# |
45230-48010 |
US $131.04 |
||
| replacement | |||||
|
45230B
|
45230B
45230-33040 Joint Assy, Steering Shaft Universal[12.1997 - 09.1998] MCU1#,SXU1# |
45230-33040 |
from US $59.69 |
||
|
45246A
|
45246A
45246-33030
Guide, Steering Energy Absorbing Plate
[12.1997 - 11.2000] MCU1# |
45246-33030 |
— | ||
|
45253
|
45253
45253-48010 Cover, Steering Column Hole[12.1997 -] ACU1#,MCU1#,SXU1# |
45253-48010 |
US $10.05 |
||
|
45254
|
45254
45254-48010 Shield, Steering Column Hole[12.1997 -] ACU1#,MCU1#,SXU1# |
45254-48010 |
US $46.01 |
||
|
45257A
|
45257A
45257-33040
Plate, Steering Column Energy Absorbing
[12.1997 - 11.2000] MCU1# |
45257-33040 |
— | ||
|
45262A
|
45262A
45262-33010
Spring, Tilt Lever Return
[12.1997 - 11.2000] MCU1# |
45262-33010 |
— | ||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[12.1997 -] ACU1#,MCU1#,SXU1# |
45271-12060 |
US $15.05 |
||
|
45279A
|
45279A
45279-33010 Attachment, Steering Column Tube, Lwr[12.1997 - 11.2000] MCU1# |
45279-33010 |
US $3.20 |
||
|
45280A
|
45280A
45280-33080 Bracket Assy, Steering Column, Upper[12.1997 -] ACU1#,MCU1#,SXU1# |
45280-33080 |
US $179.09 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[12.1997 -] MCU1# |
45283-22010 |
US $2.69 |
||
|
45286B
|
45286B
45286-48010-B0 Cover, Steering Column, Upr[12.1997 - 11.2000] MCU1# SHADOW GRAY,TRIM1# |
45286-48010-B0 |
US $29.12 |
||
| replacement | |||||
|
45286B
|
45286B
45286-48010-C0 Cover, Steering Column, Upr[12.1997 - 11.2000] MCU1# SHADOW GRAY,TRIM1# |
45286-48010-C0 |
US $29.12 |
||
|
45286B
|
45286B
45286-48010-C0 Cover, Steering Column, Upr[11.2000 -] MCU1# BLACK,TRIM2# |
45286-48010-C0 |
US $29.12 |
||
|
45286B
|
45286B
45286-48010-E0 Cover, Steering Column, Upr[12.1997 -] MCU1# SANDAL WOOD,TRIM0# |
45286-48010-E0 |
US $29.12 |
||
| replacement | |||||
|
45286B
|
45286B
45286-48010-C0 Cover, Steering Column, Upr[12.1997 -] MCU1# SANDAL WOOD,TRIM0# |
45286-48010-C0 |
US $29.12 |
||
|
45287
|
45287
45287-48010-B0 Cover, Steering Column, Lwr[12.1997 - 11.2000] MCU1# SHADOW GRAY,TRIM1# |
45287-48010-B0 |
US $45.43 |
||
| replacement | |||||
|
45287
|
45287
45287-48010-C0 Cover, Steering Column, Lwr[12.1997 - 11.2000] MCU1# SHADOW GRAY,TRIM1# |
45287-48010-C0 |
US $45.43 |
||
|
45287
|
45287
45287-48010-C0 Cover, Steering Column, Lwr[11.2000 -] MCU1# BLACK,TRIM2# |
45287-48010-C0 |
US $45.43 |
||
|
45287
|
45287
45287-48010-E0 Cover, Steering Column, Lwr[12.1997 -] MCU1# SANDAL WOOD,TRIM0# |
45287-48010-E0 |
US $45.43 |
||
| replacement | |||||
|
45287
|
45287
45287-48010-C0 Cover, Steering Column, Lwr[12.1997 -] MCU1# SANDAL WOOD,TRIM0# |
45287-48010-C0 |
US $45.43 |
||
|
45291A
|
45291A
45291-33010
Support, Steering Column Tube
[12.1997 - 11.2000] MCU1# |
45291-33010 |
— | ||
|
45298A
|
45298A
45298-33010
Bolt, Steering Column Lower Tube
[12.1997 - 11.2000] MCU1# |
45298-33010 |
— | ||
|
45299
|
45299
45299-33010
Washer, Steering Column Lower Tube
[12.1997 - 11.2000] MCU1# |
45299-33010 |
— | ||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[12.1997 - 11.2000] MCU1#,SXU1# |
45875-12010 |
US $1.31 |
||
|
45854
|
45854
45854-48010 Bolt, Turn Signal Bracket[12.1997 - 11.2000] MCU1# |
45854-48010 |
US $1.16 |
||
|
45891
|
45891
45891-33050
Bracket, Turn Signal
[12.1997 - 11.2000] MCU1# |
45891-33050 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[12.1997 -] ACU1#,MCU1#,SXU1# |
45897-12020 |
from US $2.63 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9016450034
|
9016450034
90164-50034 Direct |
90164-50034 |
US $1.25 |
||
| replacement | |||||
|
9016450034
|
9016450034
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9611110850
|
9611110850
96111-10850 Clamp, Hose(For Air Connector) |
96111-10850 |
from US $4.10 |
||
