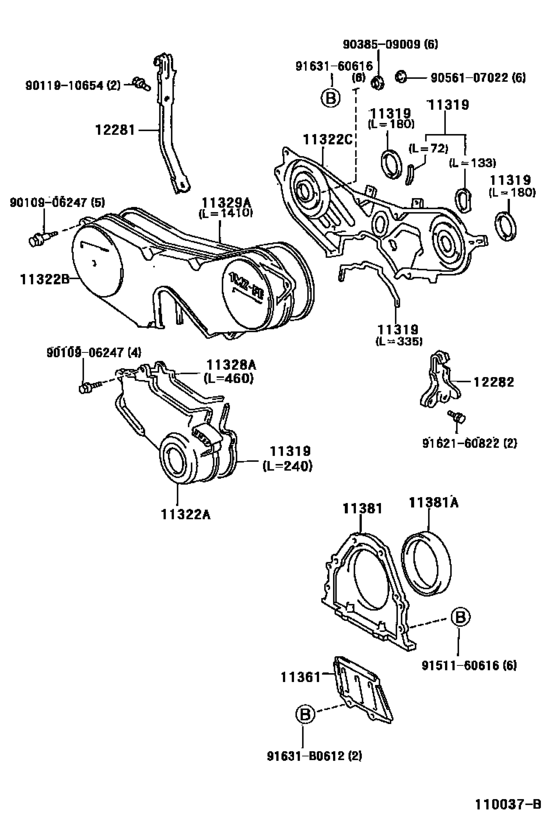

Timing Gear Cover & Rear End Plate ([12.1997 - ] (9712- )1MZFE) Diagram Toyota HARRIER
- Year
- 1997 - 2003
- Sales region
- Japan
- Frame
- MCU10
- body
- WG
- ENGINE
- 1MZFE
- Model
- HARRIER
- From
- 12.1997
- To
- 02.2003
- Vehicle Model
- Harrier
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11319
|
11319
11319-20010 Gasket, Timing Belt Cover, No.3[12.1997 -] 1MZFE..MCU1# |
11319-20010 |
from US $4.88 |
||
|
11322A
|
11322A
11302-20040 Cover, Timing Belt, No.1[04.1999 -] 1MZFE..MCU1# |
11302-20040 |
US $38.61 |
||
|
11322A
|
11322A
11321-20900
Cover, Timing Belt, No.1
[12.1997 - 03.1999] 1MZFE..MCU1# |
11321-20900 |
— | ||
|
11322B
|
11322B
11303-20040 Cover, Timing Belt, No.2[04.1999 -] 1MZFE..MCU1# |
11303-20040 |
US $86.31 |
||
|
11322B
|
11322B
11322-20030 Cover, Timing Belt, No.2[12.1997 - 03.1999] 1MZFE..MCU1# |
11322-20030 |
US $81.54 |
||
|
11322C
|
11322C
11323-20030 Cover, Timing Belt, No.3[12.1997 -] 1MZFE..MCU1# |
11323-20030 |
US $84.45 |
||
|
11328A
|
11328A
11328-20020 Gasket, Timing Belt Cover, No.1[12.1997 -] 1MZFE..MCU1# |
11328-20020 |
from US $4.95 |
||
|
11329A
|
11329A
11329-20010 Gasket, Timing Belt Or Chain Cover, No.2[12.1997 -] 1MZFE..MCU1# |
11329-20010 |
from US $5.87 |
||
|
11361
|
11361
11361-20010 Cover, Flywheel Housing Under[12.1997 - 03.1998] 1MZFE..MCU1# |
11361-20010 |
US $24.32 |
||
| replacement | |||||
|
11361
|
11361
11361-20011 Cover, Flywheel Housing Under[12.1997 - 03.1998] 1MZFE..MCU1# |
11361-20011 |
US $23.41 |
||
|
11361
|
11361
11361-20011 Cover, Flywheel Housing Under[03.1998 -] 1MZFE..MCU1# |
11361-20011 |
US $23.41 |
||
|
11381
|
11381
11381-20010 Retainer, Engine Rear Oil Seal[12.1997 -] 1MZFE..MCU1# |
11381-20010 |
US $74.95 |
||
|
11381A
|
11381A
90311-92008 Seal, Engine Rear Oil[12.1997 -] 1MZFE..MCU1# |
90311-92008 |
from US $25.37 |
||
|
12281
|
12281
12281-20050 Hanger, Engine, No.1[12.1997 -] 1MZFE..MCU1# |
12281-20050 |
US $47.17 |
||
|
12282
|
12282
12282-20020 Hanger, Engine, No.2[12.1997 -] 1MZFE..MCU1# |
12282-20020 |
US $27.43 |
||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9010906247
|
9010906247
90109-06247 New Genuine Part |
90109-06247 |
US $1.61 |
||
|
9011910654
|
9011910654
90119-10654 New Genuine Part |
90119-10654 |
US $1.49 |
||
|
9038509009
|
9038509009
90385-09009 BUSH |
90385-09009 |
US $1.97 |
||
|
9056107022
|
9056107022
90561-07022 New Genuine Part |
90561-07022 |
US $0.55 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9163160616
|
9163160616
91631-60616
BOLT WWASHER
|
91631-60616 |
— | ||
| replacement | |||||
|
9163160616
|
9163160616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
