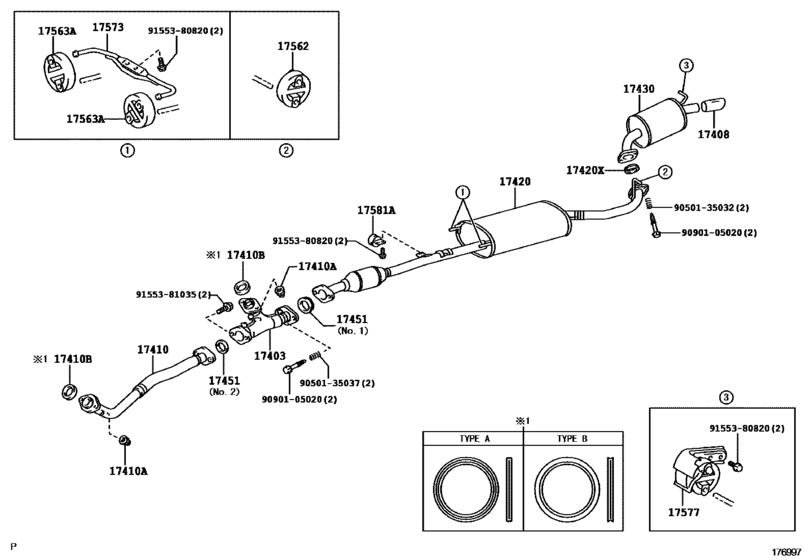

Exhaust Pipe ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17403
|
17403
17403-20180 Pipe Sub-Assy, Exhaust, Front No.3[03.2005 -] 3MZFE..MHU38 |
17403-20180 |
US $190.74 |
||
|
17408
|
17408
17408-16020 Baffle Sub Assy, Exhaust Tail Pipe[03.2005 - 06.2012] 3MZFE..MHU38 |
17408-16020 |
from US $68.76 |
||
|
17410
|
17410
17410-20470 Pipe Assy, Exhaust, Front[03.2005 -] 3MZFE..MHU38 |
17410-20470 |
US $216.94 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[03.2005 -] 3MZFE..MHU38 |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[03.2005 -] 3MZFE..MHU38 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06065 Gasket, Exhaust Pipe[03.2005 -] 3MZFE..MHU38 ＴＹＰＥ Ａ：イラスト参照 |
90917-06065 |
from US $4.60 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[03.2005 -] 3MZFE..MHU38 ＴＹＰＥ Ｂ：イラスト参照 |
90917-06089 |
from US $6.82 |
||
|
17420
|
17420
17420-20390 Pipe Assy, Exhaust, Center[03.2005 - 08.2010] 3MZFE..MHU38 |
17420-20390 |
US $1,422.51 |
||
|
17420
|
17420
17420-20400 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [08.2010 - 06.2012] 3MZFE..MHU38 ＊１１４＝ＴＯＹＯＴＡ／ＵＡ４／Ｙ |
17420-20400 |
US $1,974.34 |
||
|
17420X
|
17420X
17451-22060 Gasket, Exhaust Pipe, Center[03.2005 -] 3MZFE..MHU38 |
17451-22060 |
from US $20.22 |
||
|
17430
|
17430
17430-20100 Pipe Assy, Exhaust, Tail[03.2005 - 05.2007] 3MZFE..MHU38 |
17430-20100 |
US $302.85 |
||
|
17430
|
17430
17430-20101 Pipe Assy, Exhaust, Tail[05.2007 -] 3MZFE..MHU38 |
17430-20101 |
US $284.83 |
||
|
17451
|
17451
17451-22070 Gasket, Exhaust Pipe[03.2005 -] 3MZFE..MHU38 ＮＯ．１ |
17451-22070 |
from US $20.08 |
||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[03.2005 -] 3MZFE..MHU38 ＮＯ．２ |
90917-06046 |
from US $3.63 |
||
|
17562
|
17562
17565-11160 Support, Exhaust Pipe, No.1[03.2005 - 05.2007] 3MZFE..MHU38 |
17565-11160 |
from US $8.21 |
||
|
17562
|
17562
17565-22030 Support, Exhaust Pipe, No.1[05.2007 -] 3MZFE..MHU38 |
17565-22030 |
from US $7.58 |
||
|
17563A
|
17563A
17565-22040 Support, Exhaust Pipe, No.1[03.2005 -] 3MZFE..MHU38 |
17565-22040 |
from US $9.29 |
||
|
17573
|
17573
17573-20080 Bracket, Exhaust Pipe No.1 Support, Lower[03.2005 -] 3MZFE..MHU38 |
17573-20080 |
US $22.28 |
||
|
17577
|
17577
17577-20020 Bracket, Exhaust Pipe Support, No.7[03.2005 - 05.2007] 3MZFE..MHU38 |
17577-20020 |
US $31.45 |
||
|
17577
|
17577
17577-20030 Bracket, Exhaust Pipe Support, No.7[05.2007 -] 3MZFE..MHU38 |
17577-20030 |
US $23.88 |
||
|
17581A
|
17581A
17581-16020 Damper, Exhaust Pipe[03.2005 - 12.2005] 3MZFE..MHU38 |
17581-16020 |
US $32.03 |
||
| replacement | |||||
|
17581A
|
17581A
17581-16030 Damper, Exhaust Pipe[03.2005 - 12.2005] 3MZFE..MHU38 |
17581-16030 |
US $20.68 |
||
|
17581A
|
17581A
17581-16030 Damper, Exhaust Pipe[12.2005 -] 3MZFE..MHU38 |
17581-16030 |
US $20.68 |
||
|
9050135032
|
9050135032
90501-35032 SPRING COMPRESSION |
90501-35032 |
from US $3.33 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.25 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
|
9155380820
|
9155380820
91553-80820 BOLTFLANGE |
91553-80820 |
US $1.43 |
||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.12 |
||
