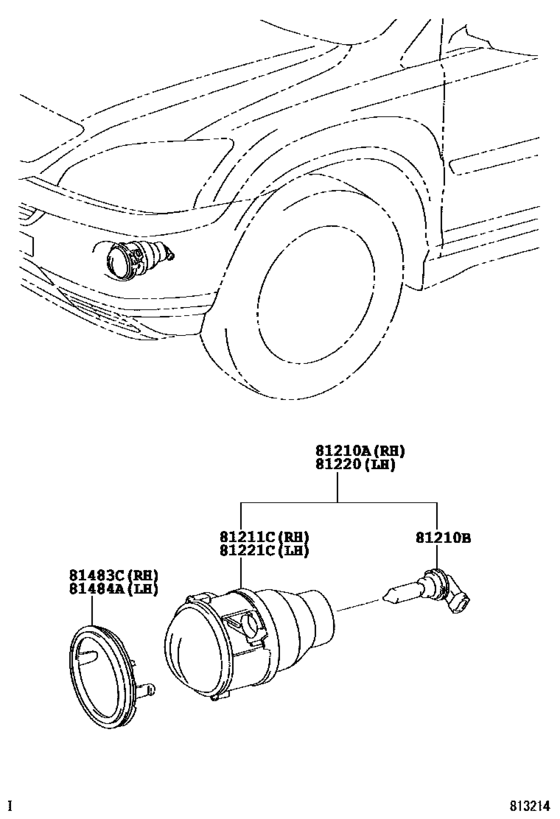

Fog Lamp ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210A
|
81210A
81210-48040 Lamp Assy, Fog, Rh[03.2005 - 10.2006] MHU38 |
81210-48040 |
US $512.51 |
||
| replacement | |||||
|
81210A
|
81210A
81210-48041 Lamp Assy, Fog, Rh[03.2005 - 10.2006] MHU38 |
81210-48041 |
US $426.61 |
||
|
81210A
|
81210A
81210-48041 Lamp Assy, Fog, Rh[11.2006 - 06.2012] MHU38 |
81210-48041 |
US $426.61 |
||
|
81210B
|
81210B
90981-13075 Bulb(For Headlamp, No.1)[03.2005 -] MHU38 １２Ｖ ５５Ｗ，ハロゲン |
90981-13075 |
from US $16 |
||
|
81211C
|
81211C
81211-48040 Lamp Unit, Fog Lamp, Rh[03.2005 - 10.2006] MHU38 |
81211-48040 |
US $436.80 |
||
| replacement | |||||
|
81211C
|
81211C
81211-48041 Lamp Unit, Fog Lamp, Rh[03.2005 - 10.2006] MHU38 |
81211-48041 |
US $364 |
||
|
81211C
|
81211C
81211-48041 Lamp Unit, Fog Lamp, Rh[11.2006 - 06.2012] MHU38 |
81211-48041 |
US $364 |
||
|
81220
|
81220
81220-48040 Lamp Assy, Fog, Lh[03.2005 - 10.2006] MHU38 |
81220-48040 |
US $512.51 |
||
| replacement | |||||
|
81220
|
81220
81220-48041 Lamp Assy, Fog, Lh[03.2005 - 10.2006] MHU38 |
81220-48041 |
US $426.61 |
||
|
81220
|
81220
81220-48041 Lamp Assy, Fog, Lh[11.2006 - 06.2012] MHU38 |
81220-48041 |
US $426.61 |
||
|
81221C
|
81221C
81221-48040 Lamp Unit, Fog Lamp, Lh[03.2005 - 10.2006] MHU38 |
81221-48040 |
US $436.80 |
||
| replacement | |||||
|
81221C
|
81221C
81221-48041 Lamp Unit, Fog Lamp, Lh[03.2005 - 10.2006] MHU38 |
81221-48041 |
US $364 |
||
|
81221C
|
81221C
81221-48041 Lamp Unit, Fog Lamp, Lh[11.2006 - 06.2012] MHU38 |
81221-48041 |
US $364 |
||
|
81483C
|
81483C
81483-48020 Protector, Fog Lamp, Rh[03.2005 - 01.2009] MHU38 |
81483-48020 |
US $12.23 |
||
| replacements | |||||
|
81483C
|
81483C
81483-48021 Protector, Fog Lamp, Rh[03.2005 - 01.2009] MHU38 |
81483-48021 |
from US $9.55 |
||
|
81483C
|
81483C
81483-48040 Protector, Fog Lamp, RhFOG LAMP, RH [03.2005 - 01.2009] MHU38 |
81483-48040 |
US $11.39 |
||
|
81483C
|
81483C
81483-48021 Protector, Fog Lamp, Rh[01.2009 - 06.2012] MHU38 |
81483-48021 |
from US $9.55 |
||
|
81484A
|
81484A
81484-48010
Protector, Fog Lamp, Lh
[03.2005 - 01.2009] MHU38 |
81484-48010 |
— | ||
| replacements | |||||
|
81484A
|
81484A
81484-48011 Protector, Fog Lamp, Lh[03.2005 - 01.2009] MHU38 |
81484-48011 |
from US $9.55 |
||
|
81484A
|
81484A
81484-48020 Protector, Fog Lamp, LhFOG LAMP, LH [03.2005 - 01.2009] MHU38 |
81484-48020 |
US $13.41 |
||
|
81484A
|
81484A
81484-48011 Protector, Fog Lamp, Lh[01.2009 - 06.2012] MHU38 |
81484-48011 |
from US $9.55 |
||
