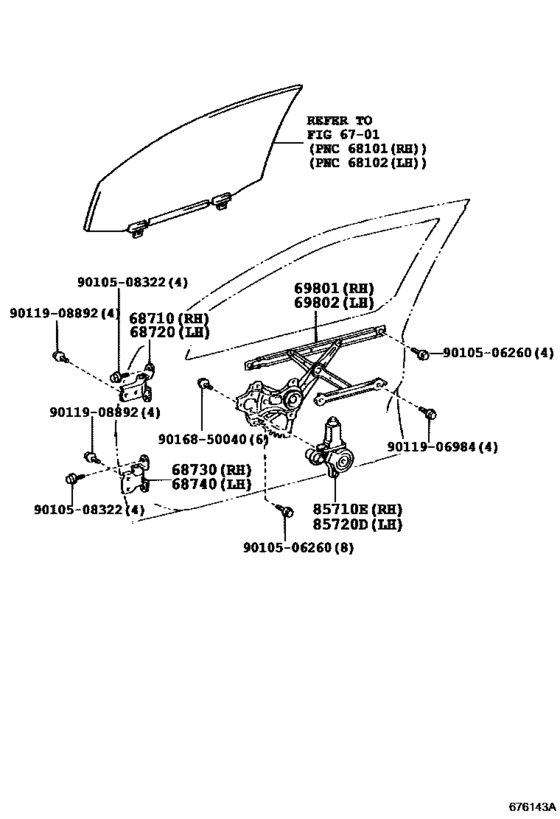

Front Door Window Regulator & Hinge ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-33030 Hinge Assy, Front Door, Upper Rh[03.2005 - 09.2006] MHU38 |
68710-33030 |
US $49.36 |
||
| replacement | |||||
|
68710
|
68710
68710-33031 Hinge Assy, Front Door, Upper Rh[03.2005 - 09.2006] MHU38 |
68710-33031 |
US $40.77 |
||
|
68710
|
68710
68710-33031 Hinge Assy, Front Door, Upper Rh[10.2006 - 06.2012] MHU38 |
68710-33031 |
US $40.77 |
||
|
68720
|
68720
68720-33030 Hinge Assy, Front Door, Upper Lh[03.2005 - 09.2006] MHU38 |
68720-33030 |
US $49.36 |
||
| replacement | |||||
|
68720
|
68720
68720-33031 Hinge Assy, Front Door, Upper Lh[03.2005 - 09.2006] MHU38 |
68720-33031 |
from US $43.80 |
||
|
68720
|
68720
68720-33031 Hinge Assy, Front Door, Upper Lh[10.2006 - 06.2012] MHU38 |
68720-33031 |
from US $43.80 |
||
|
68730
|
68730
68730-33020 Hinge Assy, Front Door, Lower Rh[03.2005 - 09.2006] MHU38 |
68730-33020 |
US $49.36 |
||
| replacement | |||||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[03.2005 - 09.2006] MHU38 |
68730-33021 |
from US $34.03 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[10.2006 - 06.2012] MHU38 |
68730-33021 |
from US $34.03 |
||
|
68740
|
68740
68740-33020
Hinge Assy, Front Door, Lower Lh
[03.2005 - 09.2006] MHU38 |
68740-33020 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[03.2005 - 09.2006] MHU38 |
68740-33021 |
from US $35 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[10.2006 - 06.2012] MHU38 |
68740-33021 |
from US $35 |
||
|
69801
|
69801
69801-33040 Regulator Sub-Assy, Front Door Window, Rh[03.2005 -] MHU38 |
69801-33040 |
US $121.36 |
||
|
69802
|
69802
69802-33040 Regulator Sub-Assy, Front Door Window, Lh[03.2005 -] MHU38 |
69802-33040 |
US $121.36 |
||
|
85710E
|
85710E
85710-58010 Motor Assy, Power Window Regulator, Rh[03.2005 -] MHU38 |
85710-58010 |
from US $292.51 |
||
|
85720D
|
85720D
85720-58010 Motor Assy, Power Window Regulator, Rh[03.2005 -] MHU38 |
85720-58010 |
from US $286.86 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508322
|
9010508322
90105-08322 BOLT WASHER BASED |
90105-08322 |
US $2.87 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9011908892
|
9011908892
90119-08892 BOLT WWASHER |
90119-08892 |
from US $0.95 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
