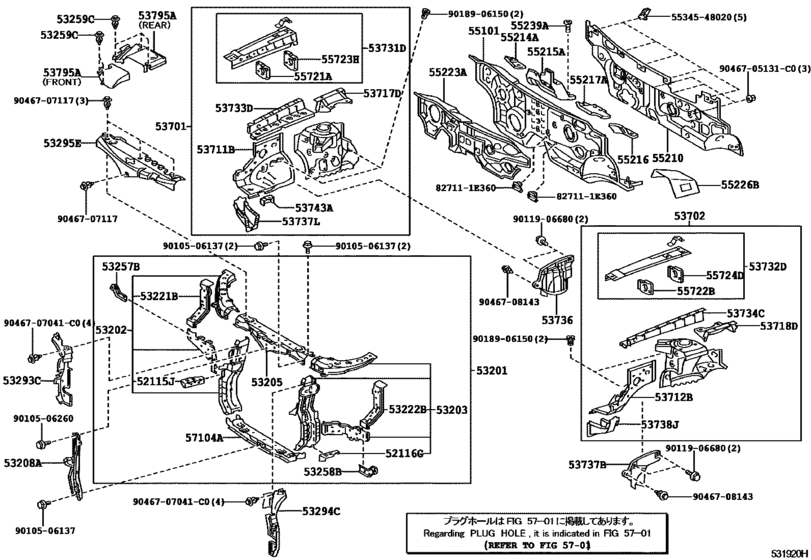

Front Fender Apron & Dash Panel ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115J
|
52115J
52115-48050 Support, Front Bumper Side, Rh[03.2005 -] MHU38 |
52115-48050 |
US $11.65 |
||
|
52116G
|
52116G
52116-48040 Support, Front Bumper Side, Lh[03.2005 -] MHU38 |
52116-48040 |
from US $11.65 |
||
|
53201
|
53201
53201-48030 Support Sub-Assy, Radiator[03.2005 - 07.2005] MHU38 |
53201-48030 |
US $627.54 |
||
| replacement | |||||
|
53201
|
53201
53201-48031 Support Sub-Assy, Radiator[03.2005 - 07.2005] MHU38 |
53201-48031 |
US $522.70 |
||
|
53201
|
53201
53201-48031 Support Sub-Assy, Radiator[08.2005 -] MHU38 |
53201-48031 |
US $522.70 |
||
|
53202
|
53202
53202-48020 Support Sub-Assy, Radiator, Rh[03.2005 - 07.2005] MHU38 |
53202-48020 |
US $198.02 |
||
| replacement | |||||
|
53202
|
53202
53202-48021 Support Sub-Assy, Radiator, Rh[03.2005 - 07.2005] MHU38 |
53202-48021 |
from US $163.07 |
||
|
53202
|
53202
53202-48021 Support Sub-Assy, Radiator, Rh[08.2005 -] MHU38 |
53202-48021 |
from US $163.07 |
||
|
53203
|
53203
53203-48020 Support Sub-Assy, Radiator, Lh[03.2005 - 07.2005] MHU38 |
53203-48020 |
US $198.02 |
||
| replacement | |||||
|
53203
|
53203
53203-48021 Support Sub-Assy, Radiator, Lh[03.2005 - 07.2005] MHU38 |
53203-48021 |
US $163.07 |
||
|
53203
|
53203
53203-48021 Support Sub-Assy, Radiator, Lh[08.2005 -] MHU38 |
53203-48021 |
US $163.07 |
||
|
53205
|
53205
53205-48040 Support Sub-Assy, Radiator, Upper[03.2005 -] MHU38 |
53205-48040 |
US $107.74 |
||
|
53208A
|
53208A
53208-48010 Support Sub-Assy, Hood Lock[03.2005 -] MHU38 |
53208-48010 |
US $39.89 |
||
|
53221B
|
53221B
53221-48010 Brace, Radiator Support Apron, Rh[03.2005 - 07.2005] MHU38 |
53221-48010 |
US $26.50 |
||
| replacement | |||||
|
53221B
|
53221B
53221-48011 Brace, Radiator Support Apron, Rh[03.2005 - 07.2005] MHU38 |
53221-48011 |
US $21.84 |
||
|
53221B
|
53221B
53221-48011 Brace, Radiator Support Apron, Rh[08.2005 -] MHU38 |
53221-48011 |
US $21.84 |
||
|
53222B
|
53222B
53222-48010 Brace, Radiator Support Apron, Lh[03.2005 - 07.2005] MHU38 |
53222-48010 |
US $27.81 |
||
| replacement | |||||
|
53222B
|
53222B
53222-48011 Brace, Radiator Support Apron, Lh[03.2005 - 07.2005] MHU38 |
53222-48011 |
US $23 |
||
|
53222B
|
53222B
53222-48011 Brace, Radiator Support Apron, Lh[08.2005 -] MHU38 |
53222-48011 |
US $23 |
||
|
53257B
|
53257B
53257-48040 Bracket, Radiator Support To Front Fender[03.2005 -] MHU38 |
53257-48040 |
US $9.17 |
||
|
53258B
|
53258B
53258-48040 Bracket, Radiator Support To Front Fender, Lh[03.2005 -] MHU38 |
53258-48040 |
US $9.17 |
||
|
53259C
|
53259C
53259-48010 Clip, Radiator Support To Frame Seal[03.2005 - 12.2008] MHU38 |
53259-48010 |
from US $1.39 |
||
|
53293C
|
53293C
53293-48040 Deflector, Radiator Side, Rh[03.2005 -] MHU38 |
53293-48040 |
from US $44.12 |
||
|
53294C
|
53294C
53294-48040 Deflector, Radiator Side, Lh[03.2005 -] MHU38 |
53294-48040 |
US $37.86 |
||
|
53295E
|
53295E
53295-48010 Seal, Cool Air Intake Duct[03.2005 -] MHU38 |
53295-48010 |
US $62.32 |
||
|
53701
|
53701
53701-48041 Apron Sub-Assy, Front Fender, Rh[03.2005 -] MHU38 |
53701-48041 |
US $401.86 |
||
|
53702
|
53702
53702-48030 Apron Sub-Assy, Front Fender, Lh[03.2005 -] MHU38 |
53702-48030 |
from US $330.51 |
||
|
53711B
|
53711B
53711-48030 Apron, Front Fender, Front Rh[03.2005 -] MHU38 |
53711-48030 |
US $72.36 |
||
|
53712B
|
53712B
53712-48030 Apron, Front Fender, Front Lh[03.2005 -] MHU38 |
53712-48030 |
from US $72.36 |
||
|
53717D
|
53717D
53717-48030 Gusset, Fender Apron, Rh[03.2005 -] MHU38 |
53717-48030 |
US $29.41 |
||
|
53718D
|
53718D
53718-48030 Gusset, Fender Apron, Lh[03.2005 -] MHU38 |
53718-48030 |
US $29.41 |
||
|
53731D
|
53731D
53731-48902 Member, Front Apron To Cowl Side, Upper Rh[03.2005 -] MHU38 |
53731-48902 |
US $61.88 |
||
|
53732D
|
53732D
53732-48903 Member, Front Apron To Cowl Side, Upper Lh[03.2005 -] MHU38 |
53732-48903 |
from US $51.40 |
||
|
53733D
|
53733D
53733-48020 Member, Front Apron To Cowl Side, Lower Front Rh[03.2005 -] MHU38 |
53733-48020 |
from US $33.20 |
||
|
53734C
|
53734C
53734-48020 Member, Front Apron To Cowl Side, Lower Front Lh[03.2005 -] MHU38 |
53734-48020 |
from US $33.20 |
||
|
53736
|
53736
53736-33030 Seal, Front Fender Apron, Rh[03.2005 - 03.2006] MHU38 |
53736-33030 |
US $49.21 |
||
|
53736
|
53736
53736-33040 Seal, Front Fender Apron, Rh[03.2006 -] MHU38 |
53736-33040 |
from US $35.64 |
||
|
53737B
|
53737B
53737-48030 Seal, Front Fender Apron, Lh[03.2005 -] MHU38 |
53737-48030 |
US $27.37 |
||
|
53737L
|
53737L
53737-48040 Gusset, Front Fender Apron Wind Guide, Rh[03.2005 -] MHU38 |
53737-48040 |
US $24.32 |
||
|
53738J
|
53738J
53738-48020 Gusset, Front Fender Apron Wind Guide, Lh[03.2005 -] MHU38 |
53738-48020 |
US $24.32 |
||
|
53743A
|
53743A
53743-48010 Reinforcement, Front Fender Apron, Front Rh[03.2005 -] MHU38 |
53743-48010 |
US $5.10 |
||
|
53795A
|
53795A
53795-48030 Cover, Engine Room, SideENGINE ROOM, SIDE [03.2005 - 12.2008] MHU38 フロント |
53795-48030 |
US $60.63 |
||
|
53795A
|
53795A
53795-48040 Cover, Engine Room, SideENGINE ROOM, SIDE [03.2005 - 12.2008] MHU38 リヤ |
53795-48040 |
US $60.63 |
||
|
55101
|
55101
55101-48100 Panel Sub-Assy, Dash[03.2005 - 06.2012] MHU38 |
55101-48100 |
US $527.07 |
||
|
55210
|
55210
55210-48090 Insulator Assy, Dash Panel[03.2005 -] MHU38 |
55210-48090 |
US $148.51 |
||
|
55214A
|
55214A
55214-48010 Pad, Dash Panel Insulator, No.2[03.2005 -] MHU38 |
55214-48010 |
US $85.90 |
||
|
55215A
|
55215A
55215-48010 Pad, Dash Panel Insulator, No.3[03.2005 -] MHU38 |
55215-48010 |
US $37.13 |
||
|
55216
|
55216
55216-48020 Pad, Dash Panel Insulator, No.4[03.2005 -] MHU38 |
55216-48020 |
US $17.91 |
||
|
55217A
|
55217A
55217-48020 Retainer, Dash Panel Silencer[03.2005 -] MHU38 |
55217-48020 |
US $22.28 |
||
|
55223A
|
55223A
55223-48090 Insulator, Dash Panel, Outer[03.2005 -] MHU38 |
55223-48090 |
US $119.39 |
||
|
55226B
|
55226B
55226-48010 Sheet, Dash Panel Insulator, No.5[03.2005 -] MHU38 |
55226-48010 |
US $33.78 |
||
|
55239A
|
55239A
55239-48020 Plate, Dash Panel Insulator, No.3[03.2005 -] MHU38 |
55239-48020 |
US $2.33 |
||
|
55721A
|
55721A
55721-48010 Brace, Cowl Top To Cowl, Inner No.1[03.2005 -] MHU38 |
55721-48010 |
US $5.53 |
||
|
55722B
|
55722B
55722-48030 Brace, Cowl Top To Cowl, Inner No.2[03.2005 -] MHU38 |
55722-48030 |
US $5.53 |
||
|
55723H
|
55723H
55723-48020 Reinforcement, Cowl Top Side, Rh[03.2005 -] MHU38 |
55723-48020 |
US $9.17 |
||
|
55724D
|
55724D
55724-48020 Reinforcement, Cowl Top Side, Lh[03.2005 -] MHU38 |
55724-48020 |
US $9.17 |
||
|
57104A
|
57104A
57104-48040 Member Sub-Assy, Front Cross[03.2005 -] MHU38 |
57104-48040 |
US $148.51 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
5534548020
|
5534548020
55345-48020 Garnish, Glove Compartment, Upper |
55345-48020 |
US $4.80 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.82 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9011906680
|
9011906680
90119-06680 BOLT WWASHER |
90119-06680 |
US $0.83 |
||
|
9018906150
|
9018906150
90189-06150 BUSH |
90189-06150 |
from US $0.44 |
||
|
9046705131C0
|
9046705131C0
90467-05131-C0 Clip |
90467-05131-C0 |
US $2.62 |
||
|
9046707041C0
|
9046707041C0
90467-07041-C0 Clip(For Steering Column Cover) |
90467-07041-C0 |
from US $0.89 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.87 |
||
|
9046708143
|
9046708143
90467-08143 CLIP |
90467-08143 |
US $2.87 |
||
