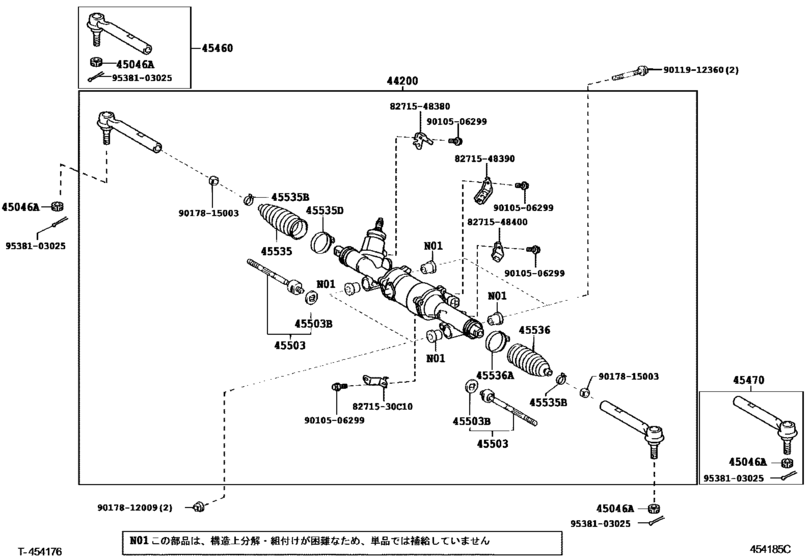

Front Steering Gear & Link ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-48110
Link Assy, Power Steering
[03.2005 - 01.2006] MHU38 |
44200-48110 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-48113 Link Assy, Power Steering[03.2005 - 01.2006] MHU38 |
44200-48113 |
US $1,799.62 |
||
|
44200
|
44200
44200-48111
Link Assy, Power Steering
[02.2006 - 08.2006] MHU38 |
44200-48111 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-48113 Link Assy, Power Steering[02.2006 - 08.2006] MHU38 |
44200-48113 |
US $1,799.62 |
||
|
44200
|
44200
44200-48112
Link Assy, Power Steering
[09.2006 - 09.2011] MHU38 |
44200-48112 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-48113 Link Assy, Power Steering[09.2006 - 09.2011] MHU38 |
44200-48113 |
US $1,799.62 |
||
|
44200
|
44200
44200-48113 Link Assy, Power Steering[10.2011 -] MHU38 |
44200-48113 |
US $1,799.62 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[03.2005 -] MHU38 |
90171-12028 |
from US $1.33 |
||
|
45460
|
45460
45460-29435 Tie Rod End Assy[03.2005 - 05.2007] MHU38 |
45460-29435 |
from US $70.51 |
||
|
45460
|
45460
45460-49075 Rod Assy, Tie, Rh[06.2007 -] MHU38 |
45460-49075 |
from US $71.74 |
||
|
45470
|
45470
45460-29435 Tie Rod End Assy[03.2005 - 05.2007] MHU38 |
45460-29435 |
from US $70.51 |
||
|
45470
|
45470
45460-49075 Rod Assy, Tie, Rh[06.2007 -] MHU38 |
45460-49075 |
from US $71.74 |
||
|
45503
|
45503
45503-49135 End Sub-Assy, Steering Rack[03.2005 -] MHU38 |
45503-49135 |
US $101.34 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[03.2005 -] MHU38 外径＝３８ |
90214-14007 |
from US $1.41 |
||
|
45535
|
45535
45535-30030
Boot, Steering Rack, No.1
[03.2005 - 02.2012] MHU38 |
45535-30030 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[03.2005 - 02.2012] MHU38 |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59045
Boot, Steering Rack, No.1
[02.2012 - 06.2012] MHU38 |
45535-59045 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[02.2012 - 06.2012] MHU38 |
45535-59065 |
from US $17.64 |
||
|
45535B
|
45535B
90467-19019 Clip[03.2005 -] MHU38 |
90467-19019 |
from US $4.09 |
||
|
45535D
|
45535D
90460-55016 Clamp(For Power Steering Rack Boot)[03.2005 -] MHU38 |
90460-55016 |
from US $4.30 |
||
|
45536
|
45536
45535-30030
Boot, Steering Rack, No.1
[03.2005 - 02.2012] MHU38 |
45535-30030 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[03.2005 - 02.2012] MHU38 |
45535-59065 |
from US $17.64 |
||
|
45536
|
45536
45535-59045
Boot, Steering Rack, No.1
[02.2012 - 06.2012] MHU38 |
45535-59045 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[02.2012 - 06.2012] MHU38 |
45535-59065 |
from US $17.64 |
||
|
45536A
|
45536A
90460-55016 Clamp(For Power Steering Rack Boot)[03.2005 -] MHU38 |
90460-55016 |
from US $4.30 |
||
|
8271530C10
|
8271530C10
82715-30C10 Bracket,wiring Harness Clamp |
82715-30C10 |
US $2.27 |
||
|
8271548380
|
8271548380
82715-48380 Bracket,wiring Harness Clamp |
82715-48380 |
US $2.48 |
||
|
8271548390
|
8271548390
82715-48390 Bracket,wiring Harness Clamp |
82715-48390 |
US $3.93 |
||
|
8271548400
|
8271548400
82715-48400 Bracket,wiring Harness Clamp |
82715-48400 |
US $2.91 |
||
|
9010506299
|
9010506299
90105-06299 New Genuine Part |
90105-06299 |
US $0.44 |
||
|
9011912360
|
9011912360
90119-12360 BOLT WWASHER |
90119-12360 |
US $4.08 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.03 |
||
|
9017815003
|
9017815003
90178-15003 Nut, Rack End Lock |
90178-15003 |
from US $1.10 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
