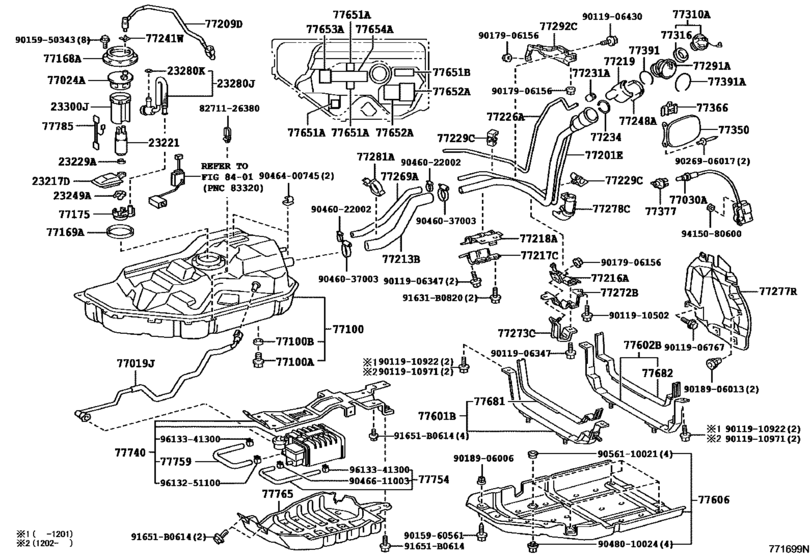

Fuel Tank & Tube ([03.2005 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217D
|
23217D
23217-20060
Filter, Fuel Pump
[03.2005 -] 3MZFE..MHU38 |
23217-20060 |
— | ||
|
23221
|
23221
23221-20030 Pump Assy, Fuel[03.2005 -] 3MZFE..MHU38 |
23221-20030 |
from US $388.32 |
||
|
23229A
|
23229A
23229-16010 Clip(For Fuel Pump Filter)[03.2005 -] 3MZFE..MHU38 |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229A
|
23229A
23219-03010 Clip(For Fuel Pump Filter)[03.2005 -] 3MZFE..MHU38 |
23219-03010 |
US $2.55 |
||
|
23249A
|
23249A
23249-46180 Rubber, Cushion(For Fuel Pump)[03.2005 - 06.2012] 3MZFE..MHU38 |
23249-46180 |
from US $9.18 |
||
|
23280J
|
23280J
23020-20010 Regulator Assy, Fuel Pressure[03.2005 - 06.2012] 3MZFE..MHU38 |
23020-20010 |
US $84.45 |
||
|
23280K
|
23280K
90301-07020 Ring, O(For Fuel Pressure Regulator)[03.2005 -] 3MZFE..MHU38 |
90301-07020 |
from US $2.53 |
||
|
23300J
|
23300J
23300-21010 Filter Assy, Fuel[03.2005 - 06.2012] 3MZFE..MHU38 |
23300-21010 |
from US $60.61 |
||
|
77019J
|
77019J
77019-48020 Tube Sub-Assy, Fuel Tank To Canister[03.2005 -] MHU38 |
77019-48020 |
US $31.89 |
||
|
77024A
|
77024A
77024-48030 Plate Sub-Assy, Fuel Suction[03.2005 -] MHU38 |
77024-48030 |
US $27.96 |
||
|
77030A
|
77030A
77030-48010 Lock Assy, Fuel Lid W/motor[03.2005 -] MHU38 |
77030-48010 |
US $104.83 |
||
|
77100
|
77100
77001-48120 Tank Assy, Fuel[03.2005 - 03.2007] MHU38 |
77001-48120 |
US $678.50 |
||
| replacement | |||||
|
77100
|
77100
77001-48121 Tank Assy, Fuel[03.2005 - 03.2007] MHU38 |
77001-48121 |
US $468.83 |
||
|
77100
|
77100
77001-48121 Tank Assy, Fuel[04.2007 -] MHU38 |
77001-48121 |
US $468.83 |
||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[03.2005 -] MHU38 |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[03.2005 -] MHU38 |
90430-12245 |
from US $0.86 |
||
|
77168A
|
77168A
77168-52010 Plate, Fuel Tank Vent Tube Set[03.2005 -] MHU38 |
77168-52010 |
from US $12.16 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[03.2005 -] MHU38 |
77169-33020 |
from US $7.88 |
||
|
77175
|
77175
77175-30050 Support, Fuel Suction, No.2[03.2005 -] MHU38 |
77175-30050 |
US $19.66 |
||
|
77201E
|
77201E
77201-48160 Pipe Sub-Assy, Fuel Tank Filler[03.2005 -] MHU38 |
77201-48160 |
US $160.74 |
||
|
77209D
|
77209D
77209-48040 Tube Sub-Assy, Fuel Tank Main[03.2005 -] MHU38 |
77209-48040 |
US $25.63 |
||
|
77213B
|
77213B
77213-48080 Hose, Fuel Tank To Filler Pipe[03.2005 -] MHU38 |
77213-48080 |
US $39.17 |
||
|
77216A
|
77216A
77216-48030 Support, Fuel Tank Filler Pipe, No.1[03.2005 -] MHU38 |
77216-48030 |
US $16.07 |
||
|
77217C
|
77217C
77217-48050 Support, Fuel Tank Filler Pipe, No.2[03.2005 -] MHU38 |
77217-48050 |
US $20.97 |
||
|
77218A
|
77218A
77218-48080 Support, Fuel Tank Filler Pipe, No.3[03.2005 -] MHU38 |
77218-48080 |
US $16.60 |
||
|
77219
|
77219
77219-48020 Cover, Fuel Tank Filler Pipe[03.2005 -] MHU38 |
77219-48020 |
US $7.86 |
||
|
77226A
|
77226A
77226-48040 Tube, Fuel Tank Breather, No.6[03.2005 -] MHU38 |
77226-48040 |
US $32.32 |
||
|
77229C
|
77229C
77229-48050 Clamp, Breather Tube[03.2005 -] MHU38 |
77229-48050 |
US $5.38 |
||
|
77231A
|
77231A
77232-48010 Connector, Fuel Tank Breather Tube[03.2005 -] MHU38 |
77232-48010 |
from US $4.02 |
||
|
77234
|
77234
77234-48010 Seal, Fuel Tube Connector[03.2005 -] MHU38 |
77234-48010 |
US $1.69 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[03.2005 -] MHU38 |
77241-33011 |
from US $0.84 |
||
|
77248A
|
77248A
77248-48010 Holder, Fuel Tank Filler Pipe Cover[03.2005 -] MHU38 |
77248-48010 |
US $6.46 |
||
|
77269A
|
77269A
77269-48020 Hose, Fuel Tank Breather[03.2005 -] MHU38 |
77269-48020 |
US $30.14 |
||
|
77272B
|
77272B
77272-48020 Support, Breather Tube, No.1[03.2005 -] MHU38 |
77272-48020 |
US $32.32 |
||
|
77273C
|
77273C
77273-48020 Support, Breather Tube, No.2[03.2005 - 06.2012] MHU38 |
77273-48020 |
US $45.08 |
||
|
77277R
|
77277R
77277-48040 Protector, Fuel Tank Filler Pipe[03.2005 - 06.2012] MHU38 |
77277-48040 |
US $32.27 |
||
|
77278C
|
77278C
77278-48010 Protector, Fuel Tank Filler Pipe, No.2[03.2005 -] MHU38 |
77278-48010 |
US $10.66 |
||
|
77281A
|
77281A
77281-48060 Clamp, Fuel Filler Pipe[03.2005 -] MHU38 |
77281-48060 |
US $7.57 |
||
|
77291A
|
77291A
77291-48020 Shield, Fuel Tank Filler Pipe[03.2005 -] MHU38 |
77291-48020 |
US $27.37 |
||
|
77292C
|
77292C
77292-48030 Shield, Fuel Tank Filler Pipe, No.2[03.2005 -] MHU38 |
77292-48030 |
US $64.94 |
||
|
77310A
|
77310A
77300-28010 Cap Assy, Fuel Tank[03.2005 - 08.2006] MHU38 |
77300-28010 |
from US $28.25 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[08.2006 -] MHU38 |
77300-52030 |
from US $25.57 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[03.2005 - 08.2006] MHU38 |
77316-16010 |
from US $10.77 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2006 -] MHU38 |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-48040 Lid Assy, Fuel Filler Opening[03.2005 - 10.2005] MHU38 |
77350-48040 |
US $54.45 |
||
| replacement | |||||
|
77350
|
77350
77350-48041 Lid Assy, Fuel Filler Opening[03.2005 - 10.2005] MHU38 |
77350-48041 |
US $46.65 |
||
|
77350
|
77350
77350-48041 Lid Assy, Fuel Filler Opening[11.2005 - 06.2012] MHU38 |
77350-48041 |
US $46.65 |
||
|
77366
|
77366
77360-21010 Spring, Fuel Filler Opening Lid Hinge[09.2007 -] MHU38 |
77360-21010 |
from US $4.01 |
||
|
77366
|
77366
77360-35010 Spring, Fuel Filler Opening Lid Hinge[03.2005 - 08.2007] MHU38 |
77360-35010 |
from US $2.51 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[03.2005 -] MHU38 |
77377-12050 |
from US $3.90 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[03.2005 -] MHU38 |
77391-12020 |
from US $1.92 |
||
|
77391A
|
77391A
77391-33010 Ring, Fuel Inlet Box[03.2005 -] MHU38 |
77391-33010 |
US $3.84 |
||
|
77601B
|
77601B
77601-48050 Band Sub-Assy, Fuel Tank, No.1 Rh[03.2005 -] MHU38 |
77601-48050 |
US $36.34 |
||
|
77602B
|
77602B
77602-48050 Band Sub-Assy, Fuel Tank, No.1 Lh[03.2005 -] MHU38 |
77602-48050 |
US $31.16 |
||
|
77606
|
77606
77606-48080 Protector Sub-Assy, Fuel Tank, No.1[03.2005 -] MHU38 |
77606-48080 |
US $169.11 |
||
|
77651A
|
77651A
77651-12070 Cushion, Fuel Tank, No.1[03.2005 -] MHU38 |
77651-12070 |
US $4.12 |
||
|
77651B
|
77651B
77651-44010 Packing, Fuel Tank Bracket[03.2005 -] MHU38 |
77651-44010 |
US $9.46 |
||
|
77652A
|
77652A
77652-20110 Cushion, Fuel Tank, No.2[03.2005 - 06.2012] MHU38 |
77652-20110 |
US $9.61 |
||
|
77653A
|
77653A
77653-36010 Cushion, Fuel Tank, No.3[03.2005 -] MHU38 |
77653-36010 |
US $10.75 |
||
|
77654A
|
77654A
77651-26070 Cushion, Fuel Tank, No.1[03.2005 -] MHU38 |
77651-26070 |
US $17.74 |
||
|
77681
|
77681
77616-48020 Seat, Fuel Tank Band, Rh[03.2005 -] MHU38 |
77616-48020 |
US $4.22 |
||
|
77682
|
77682
77616-48030 Seat, Fuel Tank Band, Lh[03.2005 -] MHU38 |
77616-48030 |
US $4.22 |
||
|
77740
|
77740
77740-48130 Canister Assy, Charcoal[03.2005 -] MHU38 |
77740-48130 |
US $132.50 |
||
|
77754
|
77754
77754-48060 Hose, Charcoal Canister Outlet, No.1[03.2005 - 06.2012] MHU38 |
77754-48060 |
US $8.30 |
||
|
77759
|
77759
77759-48030 Hose, Charcoal Canister[03.2005 -] MHU38 |
77759-48030 |
US $8.74 |
||
|
77765
|
77765
77765-48030 Protector, Charcoal Canister[03.2005 -] MHU38 |
77765-48030 |
US $78.62 |
||
|
77785
|
77785
77785-52020 Harness, Fuel Pump[03.2005 -] MHU38 |
77785-52020 |
from US $3.80 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.76 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
8271126380
|
8271126380
82711-26380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26380 |
US $2.15 |
||
|
9011906347
|
9011906347
90119-06347 New Genuine Part |
90119-06347 |
US $1.43 |
||
|
9011906430
|
9011906430
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.67 |
||
|
9011910502
|
9011910502
90119-10502 BOLT WWASHER |
90119-10502 |
US $2.69 |
||
|
9011910922
|
9011910922
90119-10922 BOLT WWASHER |
90119-10922 |
US $3.05 |
||
|
9011910971
|
9011910971
90119-10971 Bolt, Fuel Tank Band Set |
90119-10971 |
US $2.15 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.67 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.68 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046037003
|
9046037003
90460-37003 Clamp, Fuel Hose |
90460-37003 |
US $3.40 |
||
|
9046400745
|
9046400745
90464-00745 Clamp, Fuel Tube, No.4 |
90464-00745 |
US $3.58 |
||
|
9046611003
|
9046611003
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
9046611003
|
9046611003
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-A0001 |
US $3.15 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.79 |
||
|
9056110021
|
9056110021
90561-10021 SPACER |
90561-10021 |
US $1.25 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613341300
|
9613341300
96133-41300 Clip(For Air Hose No.6) |
96133-41300 |
US $1.61 |
||
