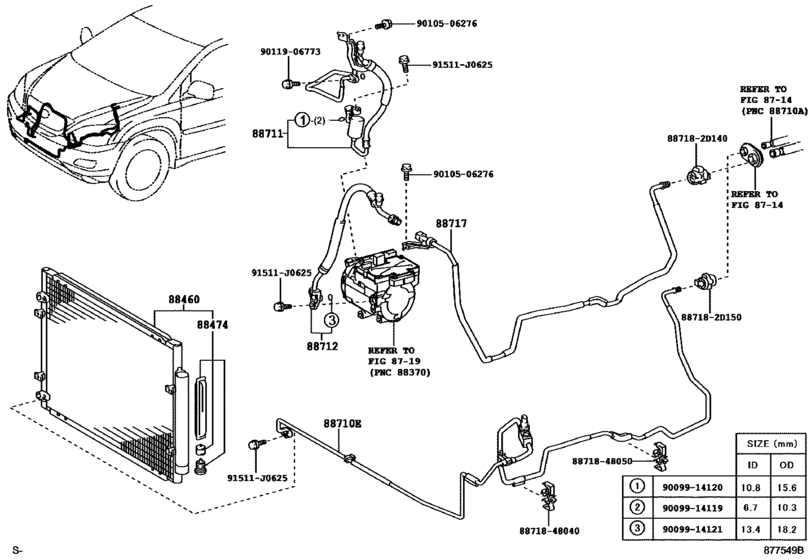

Heating & Air Conditioning - Cooler Piping ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-48060 Condenser Assy, Cooler[03.2005 - 09.2006] MHU38 |
88460-48060 |
US $851.76 |
||
| replacement | |||||
|
88460
|
88460
88460-48061 Condenser Assy, Cooler[03.2005 - 09.2006] MHU38 |
88460-48061 |
US $707.62 |
||
|
88460
|
88460
88460-48061 Condenser Assy, Cooler[10.2006 - 06.2012] MHU38 |
88460-48061 |
US $707.62 |
||
|
88474
|
88474
88474-47020
Dryer, Cooler
[03.2005 -] MHU38 |
88474-47020 |
— | ||
|
88710E
|
88710E
88710-48181 Tube & Accessory Assy, Air Conditioner[03.2005 -] MHU38 |
88710-48181 |
US $365.46 |
||
|
88711
|
88711
88703-48090 Hose, Cooler Refrigerant Discharge, No.1[03.2005 - 08.2005] MHU38 |
88703-48090 |
US $257.71 |
||
| replacement | |||||
|
88711
|
88711
88703-48091 Hose, Cooler Refrigerant Discharge, No.1[03.2005 - 08.2005] MHU38 |
88703-48091 |
US $240.24 |
||
|
88711
|
88711
88703-48091 Hose, Cooler Refrigerant Discharge, No.1[09.2005 - 07.2007] MHU38 |
88703-48091 |
US $240.24 |
||
|
88711
|
88711
88703-48092 Hose, Cooler Refrigerant Discharge, No.1[08.2007 -] MHU38 |
88703-48092 |
US $198.02 |
||
|
88712
|
88712
88712-48150 Hose, Cooler Refrigerant Suction, No.1[03.2005 -] MHU38 |
88712-48150 |
US $168.90 |
||
|
88717
|
88717
88707-48061 Pipe, Cooler Refrigerant Suction, No.1[03.2005 -] MHU38 |
88707-48061 |
US $224.22 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.55 |
||
|
8871848040
|
8871848040
88718-48040
Pipe, Cooler Refrigerant Suction, No.2
|
88718-48040 |
— | ||
|
8871848050
|
8871848050
88718-48050
Pipe, Cooler Refrigerant Suction, No.2
|
88718-48050 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9010506276
|
9010506276
90105-06276 New Genuine Part |
90105-06276 |
US $0.87 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
