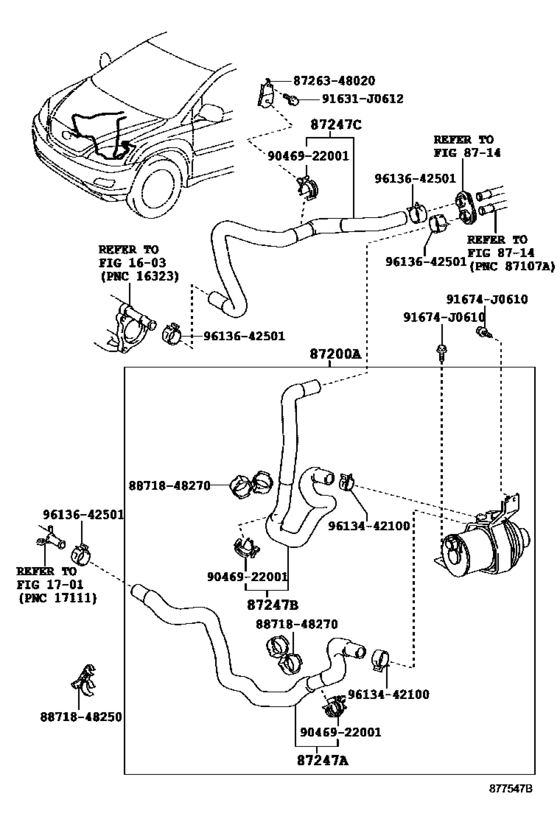

Heating & Air Conditioning - Water Piping ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87200A
|
87200A
87200-48010 Pump Assy, Water(For Heater)[03.2005 - 06.2012] MHU38 |
87200-48010 |
US $556.19 |
||
|
87247A
|
87247A
87245-48710 Hose, Heater Water, A[03.2005 -] MHU38 |
87245-48710 |
US $47.17 |
||
|
87247B
|
87247B
87245-48720 Hose, Heater Water, B[03.2005 -] MHU38 |
87245-48720 |
US $47.90 |
||
|
87247C
|
87247C
87245-48730 Hose, Heater Water, C[03.2005 -] MHU38 |
87245-48730 |
US $37.86 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91674J0610
|
91674J0610
91674-J0610 New Genuine Part |
91674-J0610 |
US $0.87 |
||
|
8726348020
|
8726348020
87263-48020
Bracket, Heater Water Pipe, No.1
|
87263-48020 |
— | ||
|
8871848250
|
8871848250
88718-48250
Pipe, Cooler Refrigerant Suction, No.2
|
88718-48250 |
— | ||
|
8871848270
|
8871848270
88718-48270
Pipe, Cooler Refrigerant Suction, No.2
|
88718-48270 |
— | ||
|
9046922001
|
9046922001
90469-22001 Clamp, Piping |
90469-22001 |
US $3.23 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.17 |
