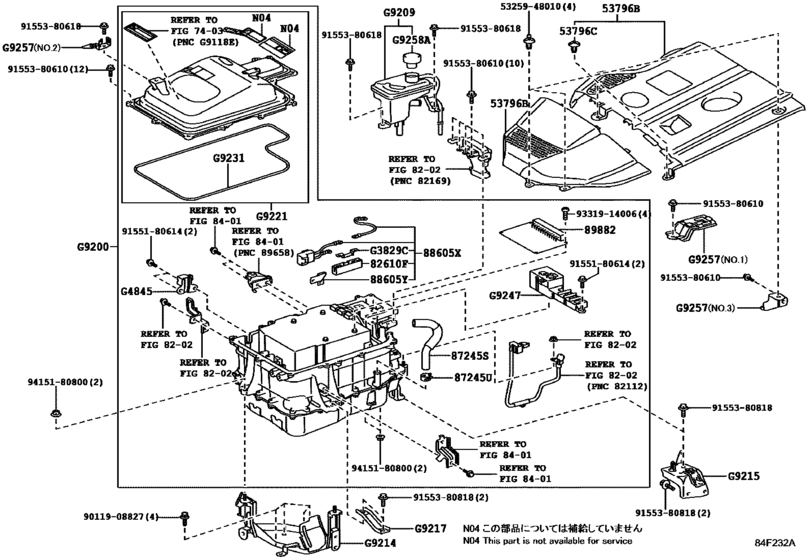

Hv Inverter ([03.2005 - ] ｲﾝﾊﾞｰﾀASSY (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53796B
|
53796B
53796-48010 Cover, Engine Room Side, Lh No.2[03.2005 -] MHU38 フロント |
53796-48010 |
US $84.82 |
||
|
53796B
|
53796B
53796-48020 Cover, Engine Room Side, Lh No.2[03.2005 -] MHU38 リヤ |
53796-48020 |
US $100.46 |
||
|
53796C
|
53796C
90467-07210-C0 Clip(For Engine Room Side Cover Lh)[03.2005 - 08.2006] MHU38 BLACK |
90467-07210-C0 |
US $0.61 |
||
|
82610F
|
82610F
82610-48010
Block Assy, Fuse
[03.2005 -] MHU38 |
82610-48010 |
— | ||
|
87245S
|
87245S
87245-48700 Hose, Inverter Water, No.1[08.2006 - 06.2012] MHU38 |
87245-48700 |
US $11.36 |
||
|
87245U
|
87245U
90467-21010 Clip(For Ventilation Hose No.2)[08.2006 - 06.2012] MHU38 |
90467-21010 |
from US $2.43 |
||
|
88605X
|
88605X
88605-48011 Harness Sub-Assy, Wiring Air Conditioner[03.2005 - 06.2012] MHU38 |
88605-48011 |
US $43.24 |
||
|
88605Y
|
88605Y
88688-48141
Bracket, Cooler
[03.2005 -] MHU38 |
88688-48141 |
— | ||
|
89882
|
89882
89882-48051 Computer, Motor Generator Control[03.2005 - 06.2012] MHU38 |
89882-48051 |
US $479.02 |
||
|
5325948010
|
5325948010
53259-48010 Clip, Radiator Support To Frame Seal |
53259-48010 |
from US $1.39 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9155380818
|
9155380818
91553-80818 BOLT FLANGE |
91553-80818 |
US $1.43 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
G3829C
|
G3829C
G3829-48010 Fuse, Electric Vehicle[03.2005 -] MHU38 |
G3829-48010 |
US $23.15 |
||
|
G4845
|
G4845
G4845-48010 Sensor, Circuit Breaker, No.1[03.2005 - 06.2012] MHU38 |
G4845-48010 |
US $96.10 |
||
|
G9200
|
G9200
G92A0-48020
Inverter Assy, W/converter
[03.2005 - 07.2007] MHU38 |
G92A0-48020 |
— | ||
| replacement | |||||
|
G9200
|
G9200
G92A0-48080 Inverter Assy, W/converter[03.2005 - 07.2007] MHU38 |
G92A0-48080 |
US $10,970.67 |
||
|
G9200
|
G9200
G92A0-48080 Inverter Assy, W/converter[08.2007 -] MHU38 |
G92A0-48080 |
US $10,970.67 |
||
|
G9209
|
G9209
G9209-48010 Tank Sub-Assy, Inverter Reserve[03.2005 -] MHU38 |
G9209-48010 |
US $71.88 |
||
|
G9214
|
G9214
G9214-48010 Bracket, Inverter, No.1[03.2005 - 07.2006] MHU38 |
G9214-48010 |
US $40.77 |
||
| replacements | |||||
|
G9214
|
G9214
87245-48671 Hose, Water[03.2005 - 07.2006] MHU38 |
87245-48671 |
US $36.11 |
||
|
G9214
|
G9214
G9214-48012 Bracket, Inverter, No.1[03.2005 - 07.2006] MHU38 |
G9214-48012 |
US $33.78 |
||
|
G9214
|
G9214
G9214-48011 Bracket, Inverter, No.1[08.2006 - 08.2007] MHU38 |
G9214-48011 |
US $40.77 |
||
| replacements | |||||
|
G9214
|
G9214
87245-48671 Hose, Water[08.2006 - 08.2007] MHU38 |
87245-48671 |
US $36.11 |
||
|
G9214
|
G9214
G9214-48012 Bracket, Inverter, No.1[08.2006 - 08.2007] MHU38 |
G9214-48012 |
US $33.78 |
||
|
G9214
|
G9214
G9214-48012 Bracket, Inverter, No.1[08.2007 -] MHU38 |
G9214-48012 |
US $33.78 |
||
|
G9215
|
G9215
G9215-48010 Bracket, Inverter, No.2[03.2005 -] MHU38 |
G9215-48010 |
US $20.38 |
||
|
G9217
|
G9217
G9217-48010 Bracket, Inverter, No.4[03.2005 -] MHU38 |
G9217-48010 |
US $7.28 |
||
|
G9221
|
G9221
G9022-48010 Cover, Inverter[03.2005 -] MHU38 |
G9022-48010 |
US $84.45 |
||
|
G9231
|
G9231
G9231-48010 Gasket, Inverter Cover[03.2005 -] MHU38 |
G9231-48010 |
US $8.21 |
||
|
G9247
|
G9247
G9247-48011 Sensor, Inverter Current, No.1[03.2005 - 06.2012] MHU38 |
G9247-48011 |
US $104.83 |
||
|
G9257
|
G9257
G9257-48020 Bracket, Inverter, No.5[03.2005 -] MHU38 ＮＯ．１ |
G9257-48020 |
US $8.44 |
||
|
G9257
|
G9257
G9257-48040 Bracket, Inverter, No.5[03.2005 -] MHU38 ＮＯ．３ |
G9257-48040 |
US $4.80 |
||
|
G9257
|
G9257
G9257-48050 Bracket, Inverter, No.5[03.2005 -] MHU38 ＮＯ．２ |
G9257-48050 |
US $3.49 |
||
|
G9258A
|
G9258A
G9258-47011 Cap, Inverter Reserve Tank[03.2005 -] MHU38 |
G9258-47011 |
US $15.72 |
||
