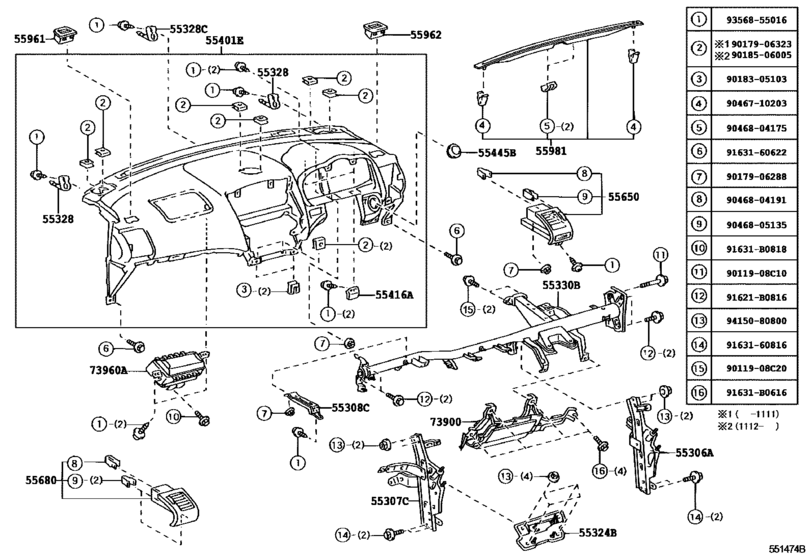

Instrument Panel & Glove Compartment ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-48050 Brace Sub-Assy, Instrument Panel, No.1[03.2005 -] MHU38 |
55306-48050 |
US $72.36 |
||
|
55307C
|
55307C
55307-48050 Brace Sub-Assy, Instrument Panel, No.2[03.2005 -] MHU38 |
55307-48050 |
US $72.36 |
||
|
55308C
|
55308C
55308-48050 Bracket Sub-Assy, Instrument Panel, Center[03.2005 -] MHU38 |
55308-48050 |
US $13.98 |
||
|
55324B
|
55324B
55324-48030 Bracket, Instrument Panel, No.4[03.2005 -] MHU38 |
55324-48030 |
US $29.70 |
||
|
55328
|
55328
55328-48040 Pin, Instrument Panel, No.1[03.2005 - 06.2011] MHU38 |
55328-48040 |
US $5.10 |
||
|
55328
|
55328
55328-48041
Pin, Instrument Panel, No.1
[07.2011 -] MHU38 |
55328-48041 |
— | ||
| replacement | |||||
|
55328
|
55328
55328-48040 Pin, Instrument Panel, No.1[07.2011 -] MHU38 |
55328-48040 |
US $5.10 |
||
|
55328C
|
55328C
55328-48040 Pin, Instrument Panel, No.1[03.2005 - 06.2011] MHU38 |
55328-48040 |
US $5.10 |
||
|
55328C
|
55328C
55328-48041
Pin, Instrument Panel, No.1
[07.2011 -] MHU38 |
55328-48041 |
— | ||
| replacement | |||||
|
55328C
|
55328C
55328-48040 Pin, Instrument Panel, No.1[07.2011 -] MHU38 |
55328-48040 |
US $5.10 |
||
|
55330B
|
55330B
55330-48120 Reinforcement Assy, Instrument Panel[03.2005 - 06.2012] MHU38 |
55330-48120 |
US $301.39 |
||
|
55401E
|
55401E
55401-48070-C0 Pad Sub-Assy, Instrument Panel Safety[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55401-48070-C0 |
US $966.78 |
||
|
55401E
|
55401E
55401-48080-B0 Pad Sub-Assy, Instrument Panel Safety[03.2005 - 08.2006] MHU38 Ｌパッケージ,SADDLE GRAY,TRIM0#; MHU38 プレミアムＳパッケージ,SADDLE GRAY,TRIM0# |
55401-48080-B0 |
US $966.78 |
||
|
55401E
|
55401E
55401-48080-C0 Pad Sub-Assy, Instrument Panel Safety[03.2005 - 08.2006] MHU38 Ｌパッケージ,BLACK,TRIM2#; MHU38 プレミアムＳパッケージ,BLACK,TRIM2# |
55401-48080-C0 |
US $966.78 |
||
|
55416A
|
55416A
55416-30140 Retainer, Meter Hood, No.1[03.2005 -] MHU38 |
55416-30140 |
US $2.04 |
||
|
55445B
|
55445B
55445-48010-B0 Plate, Instrument Panel Finish[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55445-48010-B0 |
US $3.93 |
||
|
55445B
|
55445B
55445-48010-C0 Plate, Instrument Panel Finish[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55445-48010-C0 |
US $3.93 |
||
|
55650
|
55650
55650-48040-B0 Register Assy, Instrument Panel, No.1[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55650-48040-B0 |
US $216 |
||
|
55650
|
55650
55650-48040-C0 Register Assy, Instrument Panel, No.1[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55650-48040-C0 |
US $216 |
||
|
55680
|
55680
55680-48040-B0 Register Assy, Instrument Panel, Lower No.1[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55680-48040-B0 |
US $93.18 |
||
|
55680
|
55680
55680-48040-C0 Register Assy, Instrument Panel, Lower No.1[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55680-48040-C0 |
US $93.18 |
||
|
55961
|
55961
55961-48020-B0 Nozzle, Side Defroster, No.1[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55961-48020-B0 |
US $10.34 |
||
|
55961
|
55961
55961-48020-C0 Nozzle, Side Defroster, No.1[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55961-48020-C0 |
US $10.34 |
||
|
55962
|
55962
55962-48020-B0 Nozzle, Side Defroster, No.2[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55962-48020-B0 |
US $10.34 |
||
|
55962
|
55962
55962-48020-C0 Nozzle, Side Defroster, No.2[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55962-48020-C0 |
US $10.34 |
||
|
55981
|
55981
55981-48020-B0 Garnish, Defroster Nozzle, No.1[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
55981-48020-B0 |
US $38 |
||
|
55981
|
55981
55981-48020-C0 Garnish, Defroster Nozzle, No.1[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
55981-48020-C0 |
US $35.64 |
||
|
73900
|
73900
73900-48010-A0 Air Bag Assy, Instrument Panel, Lower No.1[03.2005 - 06.2012] MHU38 IVORY,TRIM0# |
73900-48010-A0 |
US $419.33 |
||
|
73900
|
73900
73900-48010-B0 Air Bag Assy, Instrument Panel, Lower No.1[01.2008 - 11.2008] MHU38 ＡＬＣＡＮＴＡＲＡ Ｐｒｉｍｅ Ｖｅｒｓｉｏｎ ＊（Ｄ）,LT.GRAY,TRIM11 |
73900-48010-B0 |
US $503.78 |
||
|
73900
|
73900
73900-48010-C0 Air Bag Assy, Instrument Panel, Lower No.1[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
73900-48010-C0 |
US $419.33 |
||
|
73960A
|
73960A
73960-48010 Air Bag Assy, Instrument Panel Passenger W/o Door[03.2005 -] MHU38 |
73960-48010 |
US $1,345.34 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
91631B0818
|
91631B0818
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.33 |
||
|
9011908C10
|
9011908C10
90119-08C10 BOLT WWASHER |
90119-08C10 |
US $2.48 |
||
|
9011908C20
|
9011908C20
90119-08C20 BOLT WWASHER |
90119-08C20 |
from US $0.78 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.84 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9018506005
|
9018506005
90185-06005 New Genuine Part |
90185-06005 |
US $3.40 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804175
|
9046804175
90468-04175 Retainer, Side Defroster |
90468-04175 |
US $0.58 |
||
|
9046804191
|
9046804191
90468-04191 CLIP |
90468-04191 |
US $1.61 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.76 |
||
