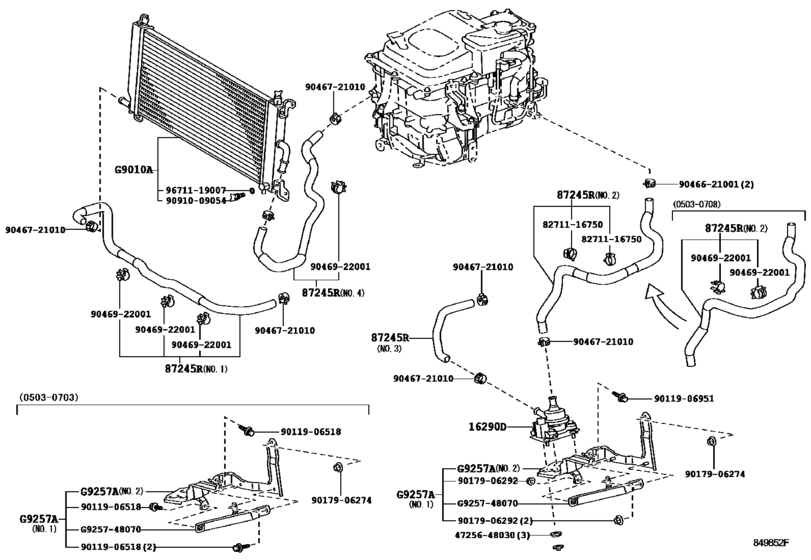

Inverter Cooling ([03.2005 - 10.2007] (0503-0710)) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16290D
|
16290D
G9040-48080 Pump Assy, Water W/motor[03.2005 - 06.2012] 3MZFE..MHU38 |
G9040-48080 |
from US $345.80 |
||
|
87245R
|
87245R
87245-48640 Hose, Water[03.2005 -] MHU38 ＮＯ．１ |
87245-48640 |
US $41.41 |
||
|
87245R
|
87245R
87245-48670 Hose, Water[03.2005 - 08.2007] MHU38 ＮＯ．２ |
87245-48670 |
US $43.39 |
||
|
87245R
|
87245R
87245-48671 Hose, Water[08.2007 -] MHU38 ＮＯ．２ |
87245-48671 |
US $36.11 |
||
|
87245R
|
87245R
87245-48680 Hose, Water[03.2005 -] MHU38 ＮＯ．３ |
87245-48680 |
US $11.65 |
||
|
87245R
|
87245R
87245-48690 Hose, Water[03.2005 -] MHU38 ＮＯ．４ |
87245-48690 |
US $26.79 |
||
|
4725648030
|
4725648030
47256-48030 Grommet, Cap |
47256-48030 |
US $5.82 |
||
|
8271116750
|
8271116750
82711-16750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-16750 |
US $5.42 |
||
|
9011906518
|
9011906518
90119-06518 BOLT W-WASHER |
90119-06518 |
from US $0.15 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9046922001
|
9046922001
90469-22001 Clamp, Piping |
90469-22001 |
US $3.23 |
||
|
9091009054
|
9091009054
90910-09054
Plug, Radiator Drain Cock
|
90910-09054 |
— | ||
| replacement | |||||
|
9091009054
|
9091009054
90910090541
Drain Plug
|
90910090541 |
— | ||
|
9671119007
|
9671119007
96711-19007 Packing(For Radiator Drain Cock) |
96711-19007 |
from US $2.09 |
||
|
G925748070
|
G925748070
G9257-48070 Bracket, Hybrid Water Pump, No.2 |
G9257-48070 |
US $13.83 |
||
|
G9010A
|
G9010A
G9010-48010 Radiator Assy[03.2005 -] MHU38 |
G9010-48010 |
US $487.47 |
||
|
G9257A
|
G9257A
G9257-48060 Bracket, Inverter, No.5[03.2005 - 03.2007] MHU38 ＮＯ．２ |
G9257-48060 |
US $39.31 |
||
| replacements | |||||
|
G9257A
|
G9257A
90179-06299 Nut, Wire Adjusting, No.1[03.2005 - 03.2007] MHU38 ＮＯ．２ |
90179-06299 |
from US $0.65 |
||
|
G9257A
|
G9257A
G9257-48150 Bracket, Inverter, No.5[03.2005 - 03.2007] MHU38 ＮＯ．２ |
G9257-48150 |
US $38.88 |
||
|
G9257A
|
G9257A
G9257-48080 Bracket Sub-Assy, Hv Water Pump[03.2005 - 08.2007] MHU38 ＮＯ．１ |
G9257-48080 |
US $60.28 |
||
| replacement | |||||
|
G9257A
|
G9257A
G9257-48081 Bracket, Inverter, No.5[03.2005 - 08.2007] MHU38 ＮＯ．１ |
G9257-48081 |
US $48.05 |
||
|
G9257A
|
G9257A
G9257-48081 Bracket, Inverter, No.5[08.2007 - 06.2012] MHU38 ＮＯ．１ |
G9257-48081 |
US $48.05 |
||
|
G9257A
|
G9257A
G9257-48150 Bracket, Inverter, No.5[03.2007 - 06.2012] MHU38 ＮＯ．２ |
G9257-48150 |
US $38.88 |
||
