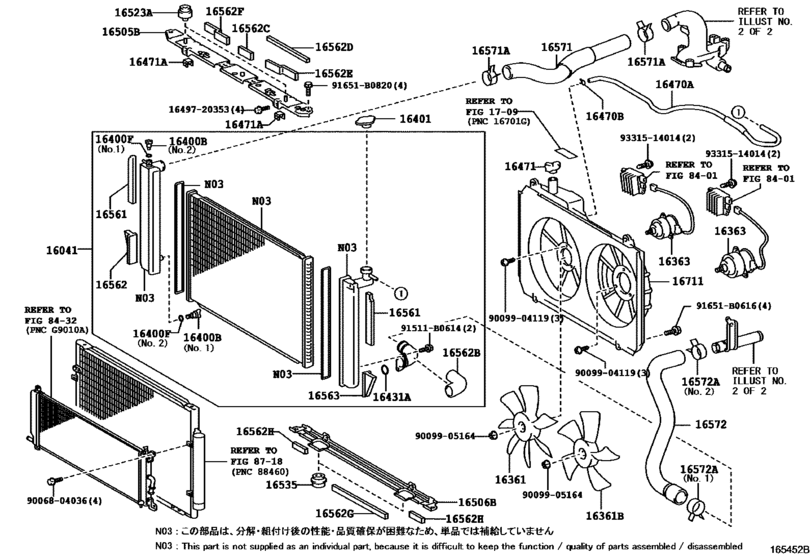

Radiator & Water Outlet ([03.2005 - 09.2005] (0503-0509)) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16041
|
16041
16041-20351 Radiator Assy, No.2[03.2005 - 09.2005] 3MZFE..MHU38 |
16041-20351 |
US $691.60 |
||
| replacements | |||||
|
16041
|
16041
16041-20354 Radiator Assy, No.2[03.2005 - 09.2005] 3MZFE..MHU38 |
16041-20354 |
US $741 |
||
|
16041
|
16041
16377-20142
Hose Or Pipe(For Radiator Reserve Tank)
[03.2005 - 09.2005] 3MZFE..MHU38 |
16377-20142 |
— | ||
|
16041
|
16041
16041-20352 Radiator Assy, No.2[09.2005 - 07.2006] 3MZFE..MHU38 |
16041-20352 |
US $665.39 |
||
| replacement | |||||
|
16041
|
16041
16041-20354 Radiator Assy, No.2[09.2005 - 07.2006] 3MZFE..MHU38 |
16041-20354 |
US $741 |
||
|
16041
|
16041
16041-20353 Radiator Assy, No.2[08.2006 -] 3MZFE..MHU38 |
16041-20353 |
US $489.22 |
||
| replacement | |||||
|
16041
|
16041
16041-20354 Radiator Assy, No.2[08.2006 -] 3MZFE..MHU38 |
16041-20354 |
US $741 |
||
|
16361
|
16361
16361-20220 Fan[03.2005 -] 3MZFE..MHU38 |
16361-20220 |
from US $75.26 |
||
|
16361B
|
16361B
16361-20230 Fan, No.2[03.2005 -] 3MZFE..MHU38 |
16361-20230 |
US $103.32 |
||
|
16363
|
16363
16363-20400 Motor, Cooling Fan[03.2005 -] 3MZFE..MHU38 |
16363-20400 |
from US $332.90 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[03.2005 -] 3MZFE..MHU38 ＮＯ．１ |
16417-21280 |
from US $3.46 |
||
|
16400B
|
16400B
16417-28530 Plug, Radiator Drain Cock[03.2005 -] 3MZFE..MHU38 ＮＯ．２ |
16417-28530 |
from US $4.69 |
||
|
16400F
|
16400F
16418-20290 Packing(For Radiator Drain Cock)[03.2005 -] 3MZFE..MHU38 ＮＯ．１ |
16418-20290 |
from US $1.48 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[03.2005 -] 3MZFE..MHU38 ＮＯ．２ |
16492-21050 |
from US $2.13 |
||
|
16401
|
16401
16401-20353
Cap Sub-Assy, Radiator
[08.2006 -] 3MZFE..MHU38 |
16401-20353 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-36030 Cap Sub-Assy, Radiator[08.2006 -] 3MZFE..MHU38 |
16401-36030 |
from US $16.13 |
||
|
16401
|
16401
16401-72090
Cap Sub-Assy, Radiator
[03.2005 - 07.2006] 3MZFE..MHU38 |
16401-72090 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-20353
Cap Sub-Assy, Radiator
[03.2005 - 07.2006] 3MZFE..MHU38 |
16401-20353 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-36030 Cap Sub-Assy, Radiator[03.2005 - 07.2006] 3MZFE..MHU38 |
16401-36030 |
from US $16.13 |
||
|
16401
|
16401
16401-36030 Cap Sub-Assy, Radiator[03.2005 - 07.2006] 3MZFE..MHU38 |
16401-36030 |
from US $16.13 |
||
|
16431A
|
16431A
16492-31480 Ring, O(For Radiator Water Inlet)[03.2005 -] 3MZFE..MHU38 |
16492-31480 |
from US $5.95 |
||
|
16470A
|
16470A
16377-20142
Hose Or Pipe(For Radiator Reserve Tank)
[09.2005 - 06.2012] 3MZFE..MHU38 |
16377-20142 |
— | ||
|
16470A
|
16470A
16377-20190
Hose Or Pipe(For Radiator Reserve Tank)
[03.2005 - 09.2005] 3MZFE..MHU38 |
16377-20190 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[03.2005 - 06.2012] 3MZFE..MHU38 |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16471-20020 Cap Sub-Assy, Reserve Tank[03.2005 -] 3MZFE..MHU38 |
16471-20020 |
from US $6.31 |
||
|
16471A
|
16471A
16406-20300 Support Sub-Assy[03.2005 -] 3MZFE..MHU38 |
16406-20300 |
US $6.99 |
||
|
16505B
|
16505B
16505-20120 Support Sub-Assy, Radiator, Upper Rh[03.2005 -] 3MZFE..MHU38 |
16505-20120 |
US $71.93 |
||
|
16506B
|
16506B
16506-20080 Support Sub-Assy, Radiator, Lower Rh[03.2005 -] 3MZFE..MHU38 |
16506-20080 |
US $84.91 |
||
|
16523A
|
16523A
16523-20020 Cushion, Radiator Support[03.2005 -] 3MZFE..MHU38 |
16523-20020 |
from US $5.89 |
||
|
16535
|
16535
16535-20030 Support, Radiator, Lower[03.2005 -] 3MZFE..MHU38 |
16535-20030 |
from US $7.05 |
||
|
16561
|
16561
16563-20010 Seal, Radiator To Support, No.1[03.2005 - 06.2012] 3MZFE..MHU38 |
16563-20010 |
US $4.02 |
||
|
16562
|
16562
16563-20020 Seal, Radiator To Support, No.2[03.2005 - 06.2012] 3MZFE..MHU38 |
16563-20020 |
US $4.02 |
||
|
16562B
|
16562B
16563-20040 Seal, Radiator To Support, No.4[03.2005 - 06.2012] 3MZFE..MHU38 |
16563-20040 |
US $1.46 |
||
|
16562C
|
16562C
16561-20010 Seal, Radiator To Support, No.5[03.2005 - 06.2012] 3MZFE..MHU38 |
16561-20010 |
US $2.91 |
||
|
16562D
|
16562D
16561-20020 Seal, Radiator To Support, No.6[03.2005 - 06.2012] 3MZFE..MHU38 |
16561-20020 |
US $3.32 |
||
|
16562E
|
16562E
16561-20030 Seal, Radiator To Support, No.7[03.2005 - 06.2012] 3MZFE..MHU38 |
16561-20030 |
US $4.66 |
||
|
16562F
|
16562F
16561-20040 Seal, Radiator To Support, No.8[03.2005 - 06.2012] 3MZFE..MHU38 |
16561-20040 |
US $4.66 |
||
|
16562G
|
16562G
16562-20010 Seal, Radiator To Support, No.9[03.2005 - 06.2012] 3MZFE..MHU38 |
16562-20010 |
US $4.02 |
||
|
16562H
|
16562H
16562-20020 Seal, Radiator To Support, No.10[03.2005 - 06.2012] 3MZFE..MHU38 |
16562-20020 |
US $1.14 |
||
|
16563
|
16563
16563-20030 Seal, Radiator To Support, No.3[03.2005 - 06.2012] 3MZFE..MHU38 |
16563-20030 |
US $3.32 |
||
|
16571
|
16571
16571-20091 Hose, Radiator, Inlet[03.2005 -] 3MZFE..MHU38 |
16571-20091 |
US $32.76 |
||
|
16571A
|
16571A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[03.2005 -] 3MZFE..MHU38 |
90466-35001 |
from US $5.38 |
||
|
16572
|
16572
16572-20121 Hose, Radiator, Outlet[03.2005 -] 3MZFE..MHU38 |
16572-20121 |
US $32.76 |
||
|
16572A
|
16572A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[03.2005 -] 3MZFE..MHU38 ＮＯ．２ |
90466-35001 |
from US $5.38 |
||
|
16572A
|
16572A
90466-41006 Clamp Or Clip, Hose(For Radiator Inlet)[03.2005 -] 3MZFE..MHU38 ＮＯ．１ |
90466-41006 |
from US $7.77 |
||
|
16711
|
16711
16711-20171 Shroud, Fan[03.2005 -] 3MZFE..MHU38 |
16711-20171 |
US $171.20 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
1649720353
|
1649720353
16497-20353 Bolt |
16497-20353 |
US $8.24 |
||
|
9006804036
|
9006804036
90068-04036 BOLT |
90068-04036 |
US $3.05 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
