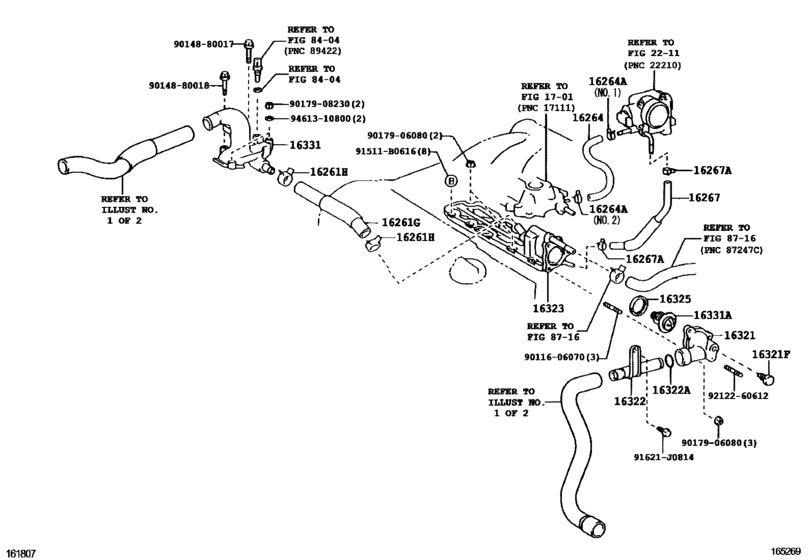

Radiator & Water Outlet ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261G
|
16261G
16261-20010 Hose, Water By-Pass, No.1[03.2005 -] 3MZFE..MHU38 |
16261-20010 |
from US $18.15 |
||
|
16261H
|
16261H
90467-28007 Clip Or Clamp(For Ventilation Hose)[03.2005 -] 3MZFE..MHU38 |
90467-28007 |
from US $2.98 |
||
|
16264
|
16264
16264-20050 Hose, Water By-Pass, No.2[03.2005 -] 3MZFE..MHU38 |
16264-20050 |
from US $6.41 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[03.2005 -] 3MZFE..MHU38 ＮＯ．１ |
96135-51300 |
from US $1.86 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2005 -] 3MZFE..MHU38 ＮＯ．２ |
96137-41501 |
from US $2.09 |
||
|
16267
|
16267
16267-20050 Hose, Water By-Pass, No.3[03.2005 -] 3MZFE..MHU38 |
16267-20050 |
US $6.41 |
||
|
16267A
|
16267A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2005 -] 3MZFE..MHU38 |
96137-41501 |
from US $2.09 |
||
|
16321
|
16321
16321-20030 Inlet, Water[03.2005 -] 3MZFE..MHU38 |
16321-20030 |
from US $48.70 |
||
|
16321F
|
16321F
90341-16094 Plug, W/head Taper Screw, No.1[03.2005 -] 3MZFE..MHU38 |
90341-16094 |
US $6.81 |
||
|
16322
|
16322
16322-20031 Pipe, Water Inlet[03.2005 -] 3MZFE..MHU38 |
16322-20031 |
from US $29.36 |
||
|
16322A
|
16322A
96761-35031 Ring, O(For Water Inlet Pipe)[03.2005 -] 3MZFE..MHU38 |
96761-35031 |
from US $2.51 |
||
|
16323
|
16323
16323-20020 Housing, Water Inlet[03.2005 - 06.2012] 3MZFE..MHU38 |
16323-20020 |
from US $120.57 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[03.2005 -] 3MZFE..MHU38 |
16325-62010 |
from US $3.95 |
||
|
16331
|
16331
16331-20080 Outlet, Water[03.2005 -] 3MZFE..MHU38 |
16331-20080 |
US $126.67 |
||
|
16331A
|
16331A
90916-03129 Thermostat[03.2005 -] 3MZFE..MHU38 ＊ＷＡＸ ８２−９５ |
90916-03129 |
from US $19.38 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
9011606070
|
9011606070
90116-06070 BOLT |
90116-06070 |
US $2.33 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9014880018
|
9014880018
90148-80018 New Genuine Part |
90148-80018 |
US $1.49 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
