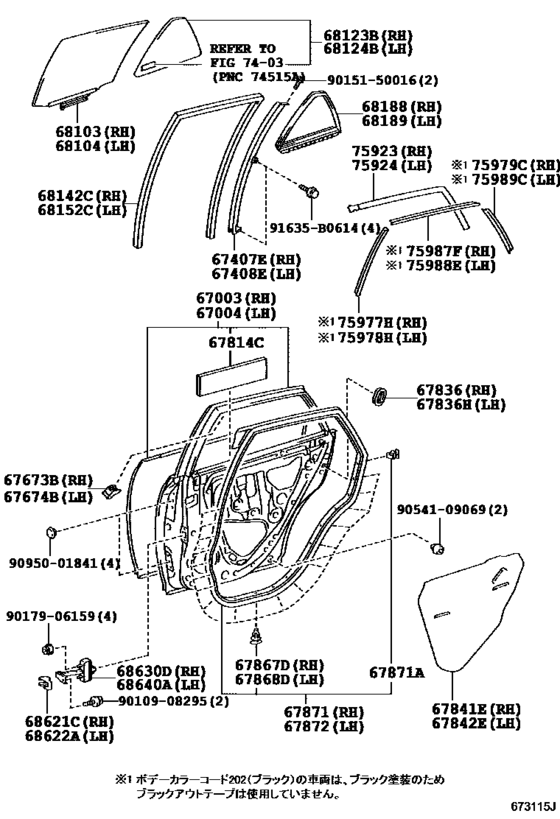

Rear Door Panel & Glass ([03.2005 - ] ﾄﾞｱﾊﾟﾈﾙ (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-48080 Panel Sub-Assy, Rear Door, Rh[03.2005 - 06.2012] MHU38 |
67003-48080 |
from US $898.53 |
||
|
67004
|
67004
67004-48080 Panel Sub-Assy, Rear Door, Lh[03.2005 - 06.2012] MHU38 |
67004-48080 |
US $1,081.08 |
||
|
67407E
|
67407E
67407-48030 Bar Sub-Assy, Rear Door Window Division, Rh[03.2005 -] MHU38 |
67407-48030 |
US $42.66 |
||
|
67408E
|
67408E
67408-48030 Bar Sub-Assy, Rear Door Window Division, Lh[03.2005 -] MHU38 |
67408-48030 |
US $42.66 |
||
|
67673B
|
67673B
67673-48010 Garnish, Rear Door Frame, Rh[03.2005 -] MHU38 |
67673-48010 |
from US $2.15 |
||
|
67674B
|
67674B
67674-48010 Garnish, Rear Door Frame, Lh[03.2005 -] MHU38 |
67674-48010 |
from US $2.07 |
||
|
67814C
|
67814C
67813-44010 Lining, Door Outside Panel Reinforcement[03.2005 -] MHU38 |
67813-44010 |
US $17.18 |
||
|
67836
|
67836
67836-12040 Cover, Rear Door Lock Child Protection, Rh[03.2005 -] MHU38 |
67836-12040 |
from US $3.76 |
||
|
67836H
|
67836H
67836-12040 Cover, Rear Door Lock Child Protection, Rh[03.2005 -] MHU38 |
67836-12040 |
from US $3.76 |
||
|
67841E
|
67841E
67841-48030 Cover, Rear Door Service Hole, Rh[03.2005 -] MHU38 |
67841-48030 |
US $17.63 |
||
|
67842E
|
67842E
67842-48030 Cover, Rear Door Service Hole, Lh[03.2005 -] MHU38 |
67842-48030 |
US $24.70 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.2005 -] MHU38 |
67867-12150 |
from US $1.79 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.2005 -] MHU38 |
67867-12150 |
from US $1.79 |
||
|
67871
|
67871
67871-48030 Weatherstrip, Rear Door, Rh[03.2005 -] MHU38 |
67871-48030 |
US $96.10 |
||
|
67871A
|
67871A
90467-04034 Clip[03.2005 -] MHU38 |
90467-04034 |
US $1.08 |
||
|
67872
|
67872
67872-48030 Weatherstrip, Rear Door, Lh[03.2005 -] MHU38 |
67872-48030 |
US $89.76 |
||
|
68103
|
68103
68103-48120 Glass Sub-Assy, Rear Door, Rh[03.2005 - 06.2012] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68103-48120 |
US $238.78 |
||
|
68104
|
68104
68104-48100 Glass Sub-Assy, Rear Door, Lh[03.2005 - 06.2012] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68104-48100 |
US $238.78 |
||
|
68123B
|
68123B
68123-48100
Glass, Rear Door Quarter Window, Rh
[03.2005 - 01.2010] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68123-48100 |
— | ||
|
68123B
|
68123B
68123-48101
Glass, Rear Door Quarter Window, Rh
[01.2010 -] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68123-48101 |
— | ||
|
68124B
|
68124B
68124-48100
Glass, Rear Door Quarter Window, Lh
[03.2005 - 01.2010] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68124-48100 |
— | ||
|
68124B
|
68124B
68124-48101
Glass, Rear Door Quarter Window, Lh
[01.2010 -] MHU38 ＊ＳＥＲＴ，厚さ＝４．０，ダークグレー |
68124-48101 |
— | ||
|
68142C
|
68142C
68142-48030 Run, Rear Door Glass, Rh[03.2005 -] MHU38 |
68142-48030 |
US $49.65 |
||
|
68152C
|
68152C
68152-48030 Run, Rear Door Glass, Lh[03.2005 -] MHU38 |
68152-48030 |
from US $49.65 |
||
|
68188
|
68188
68188-48030 Weatherstrip, Rear Door Quarter Window, Rh[03.2005 -] MHU38 |
68188-48030 |
US $30.87 |
||
|
68189
|
68189
68189-48030 Weatherstrip, Rear Door Quarter Window, Lh[03.2005 -] MHU38 |
68189-48030 |
US $30.87 |
||
|
68621C
|
68621C
68621-53010 Cover, Front Door Check, Rh[03.2005 -] MHU38 |
68621-53010 |
from US $2.20 |
||
|
68622A
|
68622A
68622-53010 Cover, Front Door Check, Lh[03.2005 -] MHU38 |
68622-53010 |
from US $2.20 |
||
|
68630D
|
68630D
68630-48030 Check Assy, Rear Door, Rh[03.2005 -] MHU38 |
68630-48030 |
US $63.07 |
||
|
68640A
|
68640A
68640-48020 Check Assy, Rear Door, Lh[03.2005 -] MHU38 |
68640-48020 |
US $63.07 |
||
|
75923
|
75923
75923-48020 Tape, Black Out, No.2 Rh[03.2005 -] MHU38 |
75923-48020 |
US $43.29 |
||
|
75924
|
75924
75924-48020 Tape, Black Out, No.2 Lh[03.2005 -] MHU38 |
75924-48020 |
US $59.47 |
||
|
75977H
|
75977H
75977-48020 Stripe, Rear Door Outside, Lower Rh[03.2005 -] MHU38 |
75977-48020 |
US $17.50 |
||
|
75978H
|
75978H
75978-48020 Stripe, Rear Door Outside, Lower Lh[03.2005 -] MHU38 |
75978-48020 |
US $24.19 |
||
|
75979C
|
75979C
75979-48010 Stripe, Rear Door, Outside Upper Rh[03.2005 -] MHU38 |
75979-48010 |
US $17.50 |
||
|
75987F
|
75987F
75987-48020 Stripe, Rear Door, Outside, Rh[03.2005 -] MHU38 |
75987-48020 |
US $20.38 |
||
|
75988E
|
75988E
75988-48020 Stripe, Rear Door, Outside Lh[03.2005 -] MHU38 |
75988-48020 |
US $29.90 |
||
|
75989C
|
75989C
75989-48010 Stripe, Rear Door, Outside Upper Lh[03.2005 -] MHU38 |
75989-48010 |
US $24.19 |
||
|
91635B0614
|
91635B0614
91635-B0614 New Genuine Part |
91635-B0614 |
US $0.69 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9015150016
|
9015150016
90151-50016 New Genuine Part |
90151-50016 |
US $1.43 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.17 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.94 |
||
