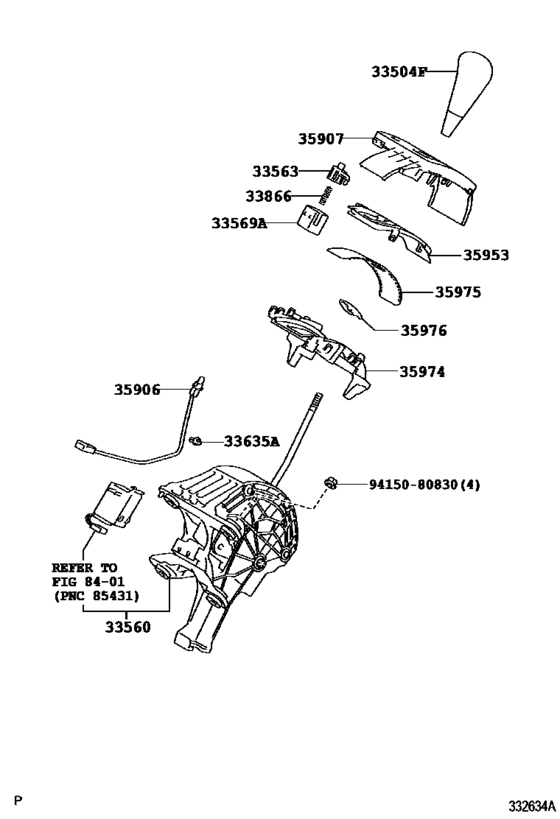

Shift Lever & Retainer ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-48010-B0 Knob Sub-Assy, Shift Lever[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
33504-48010-B0 |
US $80.08 |
||
|
33504F
|
33504F
33504-48010-C0 Knob Sub-Assy, Shift Lever[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
33504-48010-C0 |
US $80.08 |
||
|
33504F
|
33504F
33504-48040-B0 Knob Sub-Assy, Shift Lever[03.2005 - 12.2008] MHU38 プレミアムＳパッケージ,SADDLE GRAY,TRIM0# |
33504-48040-B0 |
US $139.78 |
||
| replacement | |||||
|
33504F
|
33504F
33504-48040-C0 Knob Sub-Assy, Shift Lever[03.2005 - 12.2008] MHU38 プレミアムＳパッケージ,SADDLE GRAY,TRIM0# |
33504-48040-C0 |
US $116.48 |
||
|
33504F
|
33504F
33504-48040-C0 Knob Sub-Assy, Shift Lever[03.2005 - 06.2012] MHU38 プレミアムＳパッケージ,BLACK,TRIM2# |
33504-48040-C0 |
US $116.48 |
||
|
33560
|
33560
33560-48260 Unit Assy, Shift Lock Control[03.2005 -] MHU38 |
33560-48260 |
US $361.09 |
||
|
33563
|
33563
33563-48050 Button, Shift Lock Release[03.2005 -] MHU38 |
33563-48050 |
US $5.24 |
||
|
33569A
|
33569A
33569-48010 Guide, Shift Lock Release Button[03.2005 -] MHU38 |
33569-48010 |
US $7.43 |
||
|
33635A
|
33635A
33635-48030 Guide, Wire, No.1 (For Shift Lever)[03.2005 -] MHU38 |
33635-48030 |
US $2.91 |
||
|
33866
|
33866
33866-48010 Spring, Shift Lock Release[03.2005 -] MHU38 |
33866-48010 |
US $0.73 |
||
|
35906
|
35906
35906-48070 Wire Sub-Assy, Indicator Lamp[03.2005 -] MHU38 |
35906-48070 |
US $10.34 |
||
|
35907
|
35907
35907-48080 Housing Sub-Assy, Position Indicator (For Floor Shift)[03.2005 -] MHU38 |
35907-48080 |
US $160.16 |
||
|
35953
|
35953
35953-48060 Guide, Position Indicator Light[03.2005 -] MHU38 |
35953-48060 |
US $18.78 |
||
|
35974
|
35974
35974-48040 Housing, Position Indicator, Lower[03.2005 -] MHU38 |
35974-48040 |
US $34.36 |
||
|
35975
|
35975
35975-48040 Cover, Slide (For Position Indicator)[03.2005 -] MHU38 |
35975-48040 |
US $8.15 |
||
|
35976
|
35976
35976-48020 Cover, Slide, No.2 (For Position Indicator)[03.2005 -] MHU38 |
35976-48020 |
US $4.22 |
||
|
9415080830
|
9415080830
94150-80830
New Genuine Part
|
94150-80830 |
— | ||
| replacement | |||||
|
9415080830
|
9415080830
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
