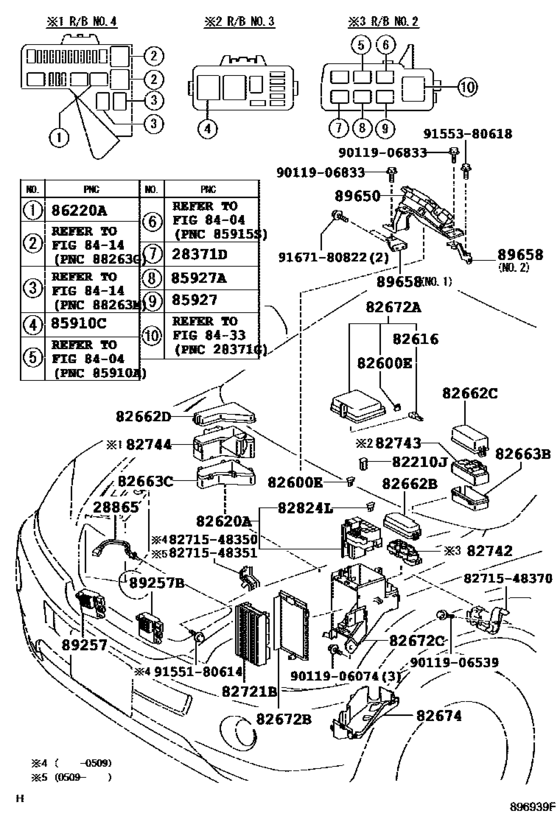

Switch & Relay & Computer ([03.2005 - ] ｴﾝｼﾞﾝﾙｰﾑ (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371D
|
28371D
90987-02027 Relay[03.2005 -] 3MZFE..MHU38 シート表皮−本皮 |
90987-02027 |
from US $47.82 |
||
|
28865
|
28865
28865-23010
Sensor, Battery Thermometer
[03.2005 - 06.2012] 3MZFE..MHU38 |
28865-23010 |
— | ||
|
82210J
|
82210J
90982-08254 Fusible Link[03.2005 - 06.2012] MHU38 １２０Ａ，オス端子 |
90982-08254 |
US $7.88 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[03.2005 - 06.2012] MHU38 ３０Ａ，メス端子 |
90982-08283 |
from US $1.35 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[03.2005 - 06.2012] MHU38 ４０Ａ，メス端子 |
90982-08284 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[03.2005 - 06.2012] MHU38 ５０Ａ，メス端子 |
90982-08285 |
from US $7.88 |
||
|
82600E
|
82600E
90982-09008 Fusible Link[03.2005 - 06.2012] MHU38 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.87 |
||
|
82600E
|
82600E
90982-09009 Fusible Link[03.2005 - 06.2012] MHU38 １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.25 |
||
|
82600E
|
82600E
90982-09010 Fusible Link[03.2005 - 06.2012] MHU38 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.48 |
||
|
82600E
|
82600E
90982-09011 Fusible Link[03.2005 - 06.2012] MHU38 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.91 |
||
|
82600E
|
82600E
90982-09012 Fusible Link[03.2005 - 06.2012] MHU38 ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.87 |
||
|
82600E
|
82600E
90982-09013 Fusible Link[03.2005 - 06.2012] MHU38 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.91 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2005 -] MHU38 |
82616-58010 |
from US $2.22 |
||
|
82620A
|
82620A
82620-48050 Block Assy, Fusible Link[03.2005 - 06.2012] MHU38 |
82620-48050 |
US $81.54 |
||
|
82662B
|
82662B
82677-48020 Cover, Relay Block, Upper, No.2[03.2005 -] MHU38 |
82677-48020 |
from US $4.95 |
||
|
82662C
|
82662C
82662-48040 Cover, Relay Block, Upper, No.3[03.2005 -] MHU38 |
82662-48040 |
US $14.56 |
||
|
82662D
|
82662D
82662-48050 Cover, Relay Block, Upper, No.4[03.2005 -] MHU38 |
82662-48050 |
US $16.31 |
||
|
82663B
|
82663B
82663-48020 Cover, Relay Block, Lower, No.3[03.2005 - 06.2012] MHU38 |
82663-48020 |
US $14.56 |
||
|
82663C
|
82663C
82663-48030 Cover, Relay Block Lower, No.4[03.2005 - 06.2012] MHU38 |
82663-48030 |
US $14.56 |
||
|
82672A
|
82672A
82672-48130 Cover, Junction Block[03.2005 -] MHU38 |
82672-48130 |
US $28.54 |
||
|
82672B
|
82672B
82672-48050 Cover, Junction Block[03.2005 - 06.2012] MHU38 |
82672-48050 |
US $17.33 |
||
|
82672C
|
82672C
82672-48120 Cover, Junction Block[03.2005 - 06.2012] MHU38 |
82672-48120 |
US $46.01 |
||
|
82674
|
82674
82674-48030 Cover, Junction Block Lower[03.2005 - 06.2012] MHU38 |
82674-48030 |
US $23.88 |
||
|
82721B
|
82721B
82721-48070 Block, Engine Room Junction[03.2005 - 02.2007] MHU38 |
82721-48070 |
US $168.90 |
||
| replacement | |||||
|
82721B
|
82721B
82721-48071 Block, Engine Room Junction[03.2005 - 02.2007] MHU38 |
82721-48071 |
US $139.78 |
||
|
82721B
|
82721B
82721-48071 Block, Engine Room Junction[03.2007 - 06.2012] MHU38 |
82721-48071 |
US $139.78 |
||
|
82742
|
82742
82741-48050 Block, Engine Room Relay[03.2005 - 06.2012] MHU38 |
82741-48050 |
US $19.80 |
||
|
82743
|
82743
82602-48030 Block Sub-Assy, Relay[03.2005 - 06.2012] MHU38 |
82602-48030 |
US $41.06 |
||
|
82744
|
82744
82602-48070 Block, Engine Room Relay, No.4[03.2005 - 06.2012] MHU38 |
82602-48070 |
US $28.39 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[03.2005 - 06.2012] MHU38 |
82824-20140 |
US $2.48 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[03.2005 - 06.2012] MHU38 |
90987-04010 |
from US $46.95 |
||
|
85927
|
85927
90987-02027 Relay[03.2005 -] MHU38 |
90987-02027 |
from US $47.82 |
||
|
85927A
|
85927A
90987-02027 Relay[03.2005 -] MHU38 |
90987-02027 |
from US $47.82 |
||
|
86220A
|
86220A
90987-02027 Relay[03.2005 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
90987-02027 |
from US $47.82 |
||
|
89257
|
89257
89257-26020 Computer, Cooling Fan[03.2005 - 06.2012] MHU38 |
89257-26020 |
from US $213.88 |
||
|
89257B
|
89257B
89257-26020 Computer, Cooling Fan[03.2005 - 06.2012] MHU38 |
89257-26020 |
from US $213.88 |
||
|
89650
|
89650
89650-48010 Computer Assy, Power Steering[03.2005 -] MHU38 |
89650-48010 |
from US $553.28 |
||
|
89658
|
89658
89658-48020 Bracket, Power Steering Computer[03.2005 - 06.2012] MHU38 ＮＯ．３ |
89658-48020 |
US $74.26 |
||
|
89658
|
89658
89658-48030 Bracket, Power Steering Computer[03.2005 - 06.2012] MHU38 ＮＯ．１ |
89658-48030 |
US $20.82 |
||
|
89658
|
89658
89658-48040 Bracket, Power Steering Computer[03.2005 - 06.2012] MHU38 ＮＯ．２ |
89658-48040 |
US $16.31 |
||
|
8271548350
|
8271548350
82715-48350 Bracket,wiring Harness Clamp |
82715-48350 |
US $11.21 |
||
|
8271548351
|
8271548351
82715-48351 Bracket,wiring Harness Clamp |
82715-48351 |
US $9.61 |
||
|
8271548370
|
8271548370
82715-48370 Bracket,wiring Harness Clamp |
82715-48370 |
US $9.61 |
||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $2.15 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.38 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9167180822
|
9167180822
91671-80822 New Genuine Part |
91671-80822 |
US $1.43 |
||
