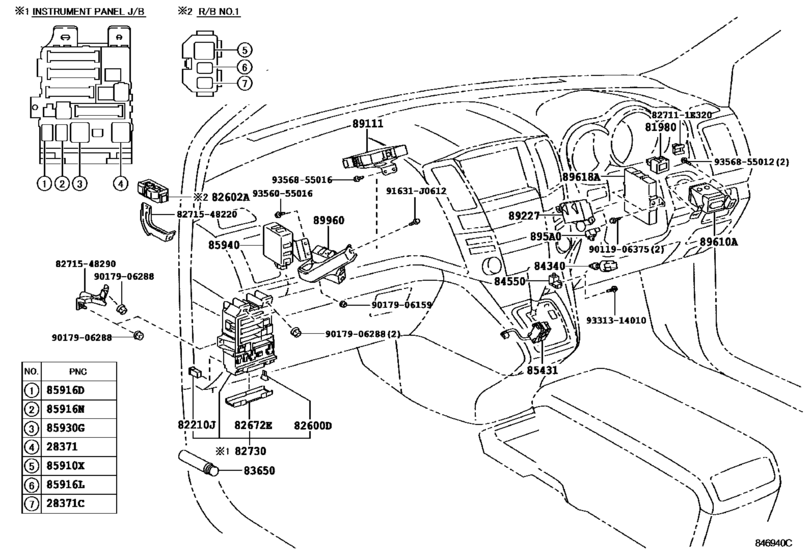

Switch & Relay & Computer ([03.2005 - ] ｶｳﾙ (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[12.2008 -] MHU38 |
895A0-46020 |
US $82.66 |
||
|
28371
|
28371
90987-02025 Relay[03.2005 - 02.2007] 3MZFE..MHU38 |
90987-02025 |
from US $48.62 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[03.2007 -] 3MZFE..MHU38 |
90987-02030 |
from US $49.22 |
||
|
28371C
|
28371C
90987-02027 Relay[03.2005 -] 3MZFE..MHU38 |
90987-02027 |
from US $47.82 |
||
|
81980
|
81980
81980-53020 Flasher Assy, Turn Signal[03.2005 -] MHU38 |
81980-53020 |
US $69.31 |
||
|
82210J
|
82210J
90982-08254 Fusible Link[03.2005 - 06.2012] MHU38 １２０Ａ，オス端子 |
90982-08254 |
US $7.88 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[03.2005 - 06.2012] MHU38 ３０Ａ，メス端子 |
90982-08283 |
from US $1.35 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[03.2005 - 06.2012] MHU38 ４０Ａ，メス端子 |
90982-08284 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[03.2005 - 06.2012] MHU38 ５０Ａ，メス端子 |
90982-08285 |
from US $7.88 |
||
|
82600D
|
82600D
90080-82050
Instrument Panel Fuse
[03.2005 - 06.2006] MHU38 ７．５Ａ，ミニ ヒューズ |
90080-82050 |
— | ||
|
82600D
|
82600D
90080-82051 Instrument Panel Fuse[03.2005 - 06.2006] MHU38 １０Ａ，ミニ ヒューズ |
90080-82051 |
US $1.46 |
||
|
82600D
|
82600D
90080-82052
Instrument Panel Fuse
[03.2005 - 06.2006] MHU38 １５Ａ，ミニ ヒューズ |
90080-82052 |
— | ||
|
82600D
|
82600D
90080-82053
Instrument Panel Fuse
[03.2005 - 06.2006] MHU38 ２０Ａ，ミニ ヒューズ |
90080-82053 |
— | ||
|
82600D
|
82600D
90080-82054 Instrument Panel Fuse[03.2005 - 06.2006] MHU38 ３０Ａ，ミニ ヒューズ |
90080-82054 |
US $1.60 |
||
|
82600D
|
82600D
90080-82055
Instrument Panel Fuse
[03.2005 - 06.2006] MHU38 ２５Ａ，ミニ ヒューズ |
90080-82055 |
— | ||
|
82600D
|
82600D
90982-09020 Fusible Link[06.2006 -] MHU38 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[06.2006 -] MHU38 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.78 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[06.2006 -] MHU38 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.80 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[06.2006 -] MHU38 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[06.2006 -] MHU38 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.82 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[06.2006 -] MHU38 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.76 |
||
|
82602A
|
82602A
82602-48050 Block Sub-Assy, Relay[03.2005 - 06.2012] MHU38 |
82602-48050 |
US $22.13 |
||
|
82672E
|
82672E
82672-0E020 Cover, Junction Block[03.2005 - 06.2006] MHU38 |
82672-0E020 |
US $5.82 |
||
|
82672E
|
82672E
82672-48200 Cover, Junction Block[06.2006 -] MHU38 |
82672-48200 |
US $4.80 |
||
|
82730
|
82730
82730-0W520 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 |
82730-0W520 |
US $543.09 |
||
| replacement | |||||
|
82730
|
82730
82730-48460 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 |
82730-48460 |
US $864.86 |
||
|
82730
|
82730
82730-0W521 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 |
82730-0W521 |
US $864.86 |
||
| replacement | |||||
|
82730
|
82730
82730-48460 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 |
82730-48460 |
US $864.86 |
||
|
82730
|
82730
82730-0W530 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 プレミアムＳパッケージ |
82730-0W530 |
US $543.09 |
||
| replacement | |||||
|
82730
|
82730
82730-48470 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 プレミアムＳパッケージ |
82730-48470 |
US $861.95 |
||
|
82730
|
82730
82730-0W531 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 プレミアムＳパッケージ |
82730-0W531 |
US $864.86 |
||
| replacement | |||||
|
82730
|
82730
82730-48470 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 プレミアムＳパッケージ |
82730-48470 |
US $861.95 |
||
|
82730
|
82730
82730-0W540 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 寒冷地仕様 |
82730-0W540 |
US $543.09 |
||
| replacement | |||||
|
82730
|
82730
82730-48480 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 寒冷地仕様 |
82730-48480 |
US $719.26 |
||
|
82730
|
82730
82730-0W541 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 寒冷地仕様 |
82730-0W541 |
US $719.26 |
||
| replacement | |||||
|
82730
|
82730
82730-48480 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 寒冷地仕様 |
82730-48480 |
US $719.26 |
||
|
82730
|
82730
82730-0W550 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-0W550 |
US $543.09 |
||
| replacement | |||||
|
82730
|
82730
82730-48490 Block Assy, Instrument Panel Junction[03.2005 - 10.2005] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48490 |
US $543.09 |
||
|
82730
|
82730
82730-0W551 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-0W551 |
US $543.09 |
||
| replacement | |||||
|
82730
|
82730
82730-48490 Block Assy, Instrument Panel Junction[11.2005 - 06.2006] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48490 |
US $543.09 |
||
|
82730
|
82730
82730-48460 Block Assy, Instrument Panel Junction[06.2006 - 08.2006] MHU38 |
82730-48460 |
US $864.86 |
||
|
82730
|
82730
82730-48470 Block Assy, Instrument Panel Junction[06.2006 - 08.2006] MHU38 プレミアムＳパッケージ |
82730-48470 |
US $861.95 |
||
|
82730
|
82730
82730-48480 Block Assy, Instrument Panel Junction[06.2006 - 08.2006] MHU38 寒冷地仕様 |
82730-48480 |
US $719.26 |
||
|
82730
|
82730
82730-48490 Block Assy, Instrument Panel Junction[06.2006 - 08.2006] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48490 |
US $543.09 |
||
|
82730
|
82730
82730-48660 Block Assy, Instrument Panel Junction[08.2006 - 08.2007] MHU38 |
82730-48660 |
US $864.86 |
||
|
82730
|
82730
82730-48661 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 |
82730-48661 |
US $640.64 |
||
| replacement | |||||
|
82730
|
82730
82730-48662 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 |
82730-48662 |
US $640.64 |
||
|
82730
|
82730
82730-48670 Block Assy, Instrument Panel Junction[08.2006 - 08.2007] MHU38 プレミアムＳパッケージ |
82730-48670 |
US $864.86 |
||
|
82730
|
82730
82730-48671 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 プレミアムＳパッケージ |
82730-48671 |
US $640.64 |
||
| replacement | |||||
|
82730
|
82730
82730-48672 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 プレミアムＳパッケージ |
82730-48672 |
US $640.64 |
||
|
82730
|
82730
82730-48680 Block Assy, Instrument Panel Junction[08.2006 - 08.2007] MHU38 寒冷地仕様 |
82730-48680 |
US $864.86 |
||
|
82730
|
82730
82730-48681 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 寒冷地仕様 |
82730-48681 |
US $640.64 |
||
| replacement | |||||
|
82730
|
82730
82730-48682 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 寒冷地仕様 |
82730-48682 |
US $640.64 |
||
|
82730
|
82730
82730-48690 Block Assy, Instrument Panel Junction[08.2006 - 08.2007] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48690 |
US $864.86 |
||
|
82730
|
82730
82730-48691 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48691 |
US $640.64 |
||
| replacement | |||||
|
82730
|
82730
82730-48692 Block Assy, Instrument Panel Junction[08.2007 -] MHU38 プレミアムＳパッケージ＆寒冷地仕様 |
82730-48692 |
US $640.64 |
||
|
83650
|
83650
90986-01005
Fusee
[03.2005 -] MHU38 |
90986-01005 |
— | ||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[12.2008 - 06.2012] MHU38 |
84340-30110 |
from US $19.82 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[03.2005 - 12.2008] MHU38 |
84340-47020 |
from US $48.30 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[03.2005 - 06.2012] MHU38 |
84550-16060 |
from US $19.32 |
||
|
85431
|
85431
85431-58010 Solenoid, Shift Lock[03.2005 - 06.2012] MHU38 |
85431-58010 |
US $44.18 |
||
|
85910X
|
85910X
90987-02009 Relay Assy[03.2005 -] MHU38 寒冷地仕様 |
90987-02009 |
from US $25.48 |
||
|
85916D
|
85916D
90987-02027 Relay[03.2005 -] MHU38 |
90987-02027 |
from US $47.82 |
||
|
85916L
|
85916L
90987-02027 Relay[03.2005 -] MHU38 寒冷地仕様 |
90987-02027 |
from US $47.82 |
||
|
85916N
|
85916N
90987-02027 Relay[03.2005 -] MHU38 |
90987-02027 |
from US $47.82 |
||
|
85930G
|
85930G
90987-02025 Relay[03.2005 - 02.2007] MHU38 |
90987-02025 |
from US $48.62 |
||
|
85930G
|
85930G
90987-02030 Relay, Ignition, No.1[03.2007 -] MHU38 |
90987-02030 |
from US $49.22 |
||
|
85940
|
85940
85940-48020
Relay Assy, Windshield Wiper
[03.2005 - 07.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
85940-48020 |
— | ||
| replacement | |||||
|
85940
|
85940
85940-48030 Relay Assy, Windshield Wiper[03.2005 - 07.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
85940-48030 |
US $120.56 |
||
|
85940
|
85940
85940-48030 Relay Assy, Windshield Wiper[08.2006 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
85940-48030 |
US $120.56 |
||
|
89111
|
89111
89111-48040 Computer, Network Gateway[03.2005 - 08.2006] MHU38 |
89111-48040 |
US $541.63 |
||
|
89111
|
89111
89111-48100 Computer, Network Gateway[08.2006 -] MHU38 |
89111-48100 |
US $451.36 |
||
|
89227
|
89227
89227-48020 Computer, Multiplex Tilt & Telescopic[03.2005 - 06.2012] MHU38 |
89227-48020 |
US $356.72 |
||
|
89610A
|
89610A
89610-48010 Holder Assy, Electrical Key[03.2005 -] MHU38 |
89610-48010 |
US $183.46 |
||
| replacement | |||||
|
89610A
|
89610A
89610-48011 Holder Assy, Electrical Key[03.2005 -] MHU38 |
89610-48011 |
US $183.46 |
||
|
89618A
|
89618A
89670-48010 Computer, Power Source Control[03.2005 - 08.2006] MHU38 |
89670-48010 |
US $576.58 |
||
|
89618A
|
89618A
89670-48020 Computer, Power Source Control[08.2006 -] MHU38 |
89670-48020 |
US $479.02 |
||
|
89960
|
89960
89940-48060 Computer Assy, Headlamp Leveling[03.2005 - 07.2007] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89940-48060 |
US $719.26 |
||
| replacement | |||||
|
89960
|
89960
89940-48061 Computer Assy, Headlamp Leveling[03.2005 - 07.2007] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89940-48061 |
US $596.96 |
||
|
89960
|
89960
89940-48061 Computer Assy, Headlamp Leveling[08.2007 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89940-48061 |
US $596.96 |
||
|
89960
|
89960
89960-48170 Computer Assy, Headlamp Leveling[03.2005 -] MHU38 |
89960-48170 |
US $358.18 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
8271548220
|
8271548220
82715-48220 Bracket,wiring Harness Clamp |
82715-48220 |
US $7.43 |
||
|
8271548290
|
8271548290
82715-48290 Bracket,wiring Harness Clamp |
82715-48290 |
US $10.05 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.25 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.84 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.65 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
