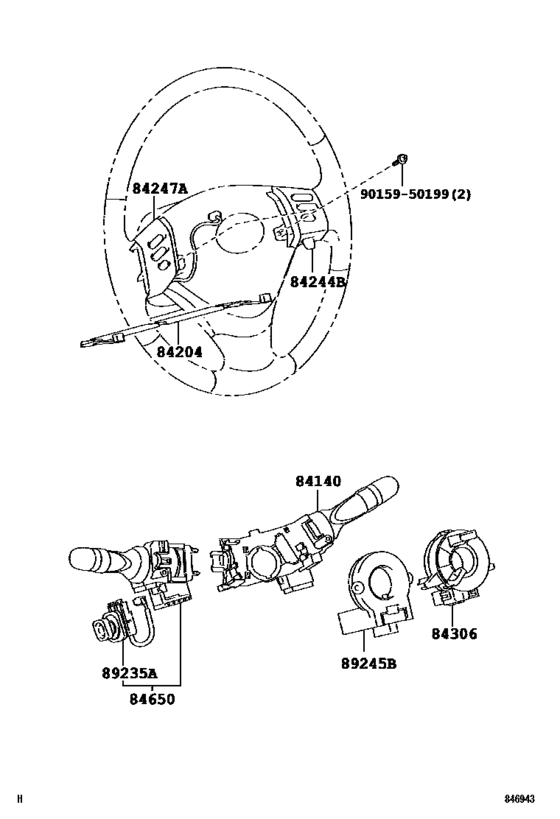

Switch & Relay & Computer ([03.2005 - ] ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30290 Switch Assy, Headlamp Dimmer[08.2006 -] MHU38 寒冷地仕様 |
84140-30290 |
US $133.43 |
||
|
84140
|
84140
84140-30300 Switch Assy, Headlamp Dimmer[08.2006 -] MHU38 |
84140-30300 |
US $182.40 |
||
|
84140
|
84140
84140-48030 Switch Assy, Headlamp Dimmer[03.2005 - 07.2006] MHU38 |
84140-48030 |
US $173.26 |
||
|
84140
|
84140
84140-48060 Switch Assy, Headlamp Dimmer[03.2005 - 07.2006] MHU38 寒冷地仕様 |
84140-48060 |
US $186.37 |
||
|
84204
|
84204
84204-48010 Cable Sub-Assy, Steering Pad Switch[03.2005 -] MHU38 |
84204-48010 |
US $33.78 |
||
| replacement | |||||
|
84204
|
84204
84204-33010 Cable Sub-Assy, Steering Pad Switch[03.2005 -] MHU38 |
84204-33010 |
US $40.77 |
||
|
84244B
|
84244B
84244-48060-B0 Switch, Steering Pad, Rh[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
84244-48060-B0 |
US $54.75 |
||
|
84244B
|
84244B
84244-48060-C0 Switch, Steering Pad, Rh[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
84244-48060-C0 |
US $54.75 |
||
|
84244B
|
84244B
84244-48080-B0 Switch, Steering Pad, Rh[08.2006 - 06.2012] MHU38 ＥＭＶ＆ナビゲーションシステム−有り（０５ＥＭＶ ＆ ０５ナビゲーション）／ＨＤＤ ,SADDLE GRAY,TRIM0# |
84244-48080-B0 |
US $90.27 |
||
|
84244B
|
84244B
84244-48080-C0 Switch, Steering Pad, Rh[08.2006 - 06.2012] MHU38 ＥＭＶ＆ナビゲーションシステム−有り（０５ＥＭＶ ＆ ０５ナビゲーション）／ＨＤＤ ,BLACK,TRIM2# |
84244-48080-C0 |
US $90.27 |
||
|
84247A
|
84247A
84247-48010-B0 Switch, Steering Pad, Lh[03.2005 - 06.2012] MHU38 SADDLE GRAY,TRIM0# |
84247-48010-B0 |
US $90.27 |
||
|
84247A
|
84247A
84247-48010-C0 Switch, Steering Pad, Lh[03.2005 - 06.2012] MHU38 BLACK,TRIM2# |
84247-48010-C0 |
US $90.27 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[03.2005 -] MHU38 |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[03.2005 -] MHU38 |
84306-48031 |
from US $141.19 |
||
|
84650
|
84650
84652-48020 Switch Assy, Windshield Wiper[03.2005 - 07.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
84652-48020 |
US $208.21 |
||
| replacement | |||||
|
84650
|
84650
84652-48091 Switch Assy, Windshield Wiper[03.2005 - 07.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
84652-48091 |
US $152.88 |
||
|
84650
|
84650
84652-48050 Switch Assy, Windshield Wiper[03.2005 - 07.2006] MHU38 |
84652-48050 |
US $199.47 |
||
| replacement | |||||
|
84650
|
84650
84652-48081 Switch Assy, Windshield Wiper[03.2005 - 07.2006] MHU38 |
84652-48081 |
US $155.38 |
||
|
84650
|
84650
84652-48080 Switch Assy, Windshield Wiper[08.2006 -] MHU38 |
84652-48080 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-48081 Switch Assy, Windshield Wiper[08.2006 -] MHU38 |
84652-48081 |
US $155.38 |
||
|
84650
|
84650
84652-48090 Switch Assy, Windshield Wiper[08.2006 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
84652-48090 |
US $152.88 |
||
| replacement | |||||
|
84650
|
84650
84652-48091 Switch Assy, Windshield Wiper[08.2006 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
84652-48091 |
US $152.88 |
||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[03.2005 -] MHU38 |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-48030 Sensor, Steering[03.2005 - 06.2012] MHU38 |
89245-48030 |
US $260.62 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
