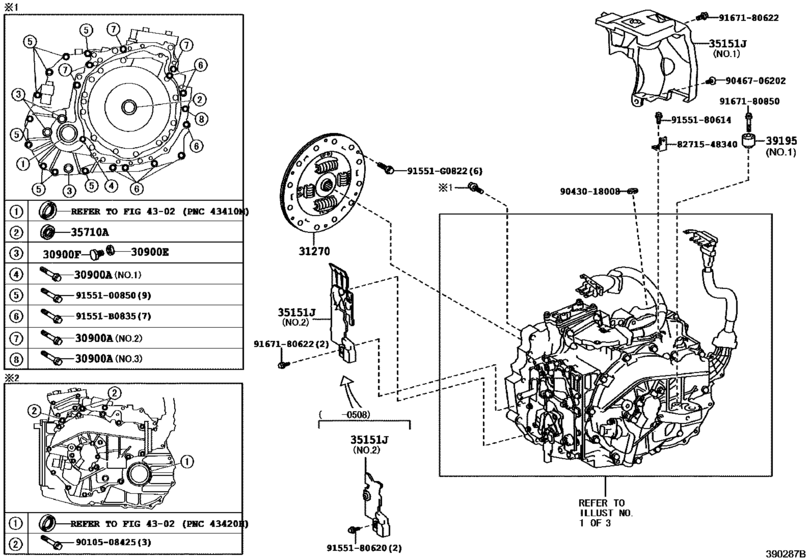

Transaxle Assy, Hv Or Fcv ([03.2005 - ] ﾊｲﾌﾞﾘｯﾄﾞﾋﾞｰｸﾙﾄﾗﾝｽｱｸｽﾙ ASSY (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30900A
|
30900A
90119-12168 Bolt(For Transaxle & Engine Setting)[03.2005 - 06.2012] MHU38 ＊１２−１．２５ＰＸ５５−３０,ＮＯ．２ |
90119-12168 |
from US $1.96 |
||
|
30900A
|
30900A
91619-61265 Bolt(For Transaxle & Engine Setting)[03.2005 - 06.2012] MHU38 ＊１２−１．２５ＰＸ６５−３０,ＮＯ．３ |
91619-61265 |
US $4.12 |
||
|
30900A
|
30900A
92412-H1055 Bolt(For Transaxle & Engine Setting)[03.2005 - 06.2012] MHU38 ＊１０−１．２５ＰＸ５５−３０,ＮＯ．１ |
92412-H1055 |
US $2.77 |
||
|
30900E
|
30900E
90430-18008 Gasket[03.2005 - 05.2012] MHU38 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
30900E
|
30900E
90430-T0021 Gasket(For Manual Transmission Filler Plug)[03.2005 - 05.2012] MHU38 |
90430-T0021 |
US $0.99 |
||
|
30900F
|
30900F
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[03.2005 - 05.2012] MHU38 |
90341-18016 |
from US $1.92 |
||
|
31270
|
31270
31270-48010 Damper Assy, Transmission Input[03.2005 -] MHU38 |
31270-48010 |
US $688.40 |
||
|
35151J
|
35151J
35151-48010 Cover, Automatic Transmission Case[03.2005 - 04.2007] MHU38 ＮＯ．１ |
35151-48010 |
US $189.28 |
||
| replacement | |||||
|
35151J
|
35151J
35151-48011 Cover, Automatic Transmission Case[03.2005 - 04.2007] MHU38 ＮＯ．１ |
35151-48011 |
US $157.25 |
||
|
35151J
|
35151J
35151-48011 Cover, Automatic Transmission Case[05.2007 - 06.2012] MHU38 ＮＯ．１ |
35151-48011 |
US $157.25 |
||
|
35151J
|
35151J
35151-48021 Cover, Automatic Transmission Case[03.2005 - 08.2005] MHU38 ＮＯ．２ |
35151-48021 |
US $27.96 |
||
|
35151J
|
35151J
35151-48022 Cover, Automatic Transmission Case[08.2005 - 06.2012] MHU38 ＮＯ．２ |
35151-48022 |
US $23 |
||
|
35710A
|
35710A
90311-25027 Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)[03.2005 - 12.2008] MHU38 |
90311-25027 |
from US $4.84 |
||
|
39195
|
39195
33183-48010 Damper, Dynamic[03.2005 - 06.2012] MHU38 ＮＯ．１ |
33183-48010 |
US $23.44 |
||
|
39195
|
39195
39195-28011 Damper, Hv Transaxle Mass[03.2005 - 06.2012] MHU38 ＮＯ．２ |
39195-28011 |
US $49.50 |
||
|
39195
|
39195
39195-48020 Damper, Hv Transaxle Mass[06.2011 - 06.2012] MHU38 ＮＯ．３ |
39195-48020 |
US $31.62 |
||
|
91551B0835
|
91551B0835
91551-B0835 New Genuine Part |
91551-B0835 |
US $2.04 |
||
|
91551G0822
|
91551G0822
91551-G0822 BOLT FLANGE |
91551-G0822 |
from US $0.82 |
||
|
8271548340
|
8271548340
82715-48340 Bracket,wiring Harness Clamp |
82715-48340 |
US $3.93 |
||
|
9010508425
|
9010508425
90105-08425 New Genuine Part |
90105-08425 |
US $1.31 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046706202
|
9046706202
90467-06202 CLIP |
90467-06202 |
from US $0.87 |
||
|
9155100850
|
9155100850
91551-00850 Flange bolt |
91551-00850 |
US $1.97 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9167180622
|
9167180622
91671-80622 Bolt |
91671-80622 |
US $1.61 |
||
|
9167180850
|
9167180850
91671-80850 BOLT FLANGE |
91671-80850 |
US $1.31 |
||
