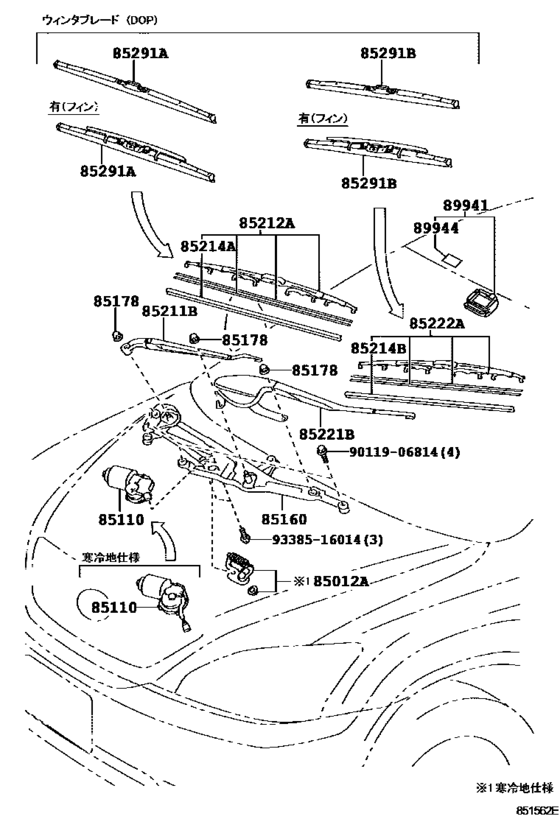

Windshield Wiper ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85012A
|
85012A
85012-28010
Crank Sub-Assy, Front Wiper
[03.2005 - 06.2012] MHU38 寒冷地仕様 |
85012-28010 |
— | ||
|
85110
|
85110
85110-48090 Motor Assy, Windshield Wiper[03.2005 -] MHU38 |
85110-48090 |
US $293.88 |
||
|
85110
|
85110
85110-48100 Motor Assy, Windshield Wiper[03.2005 -] MHU38 寒冷地仕様 |
85110-48100 |
US $318.86 |
||
|
85160
|
85160
85150-48090 Link Assy, Windshield Wiper[03.2005 -] MHU38 |
85150-48090 |
US $157.25 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[03.2005 -] MHU38 |
90176-10005 |
from US $1.03 |
||
|
85211B
|
85211B
85211-48070 Arm, Front Wiper, Rh[03.2005 -] MHU38 |
85211-48070 |
US $58.32 |
||
|
85212A
|
85212A
85212-48080 Blade, Fr Wiper, Rh[03.2005 -] MHU38 |
85212-48080 |
US $42.81 |
||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[03.2005 -] MHU38 |
85214-44140 |
from US $13.41 |
||
|
85214B
|
85214B
85214-48010 Rubber, Wiper, Rh[03.2005 -] MHU38 |
85214-48010 |
from US $11.50 |
||
|
85221B
|
85221B
85221-48070 Arm, Front Wiper, Lh[03.2005 -] MHU38 |
85221-48070 |
US $174.40 |
||
|
85222A
|
85222A
85222-48070 Blade, Fr Wiper, Lh[03.2005 -] MHU38 |
85222-48070 |
US $31.80 |
||
|
85291A
|
85291A
85291-48010 Blade, Front Wiper, Winter, Rh[03.2005 -] MHU38 ウィンタブレード（ＤＯＰ）; MHU38 |
85291-48010 |
from US $87.36 |
||
|
85291A
|
85291A
85291-48020 Blade, Front Wiper, Winter, Rh[03.2005 -] MHU38 ウィンタブレード（ＤＯＰ）; MHU38 有り（フィン） |
85291-48020 |
US $104.83 |
||
|
85291B
|
85291B
85291-22090 Blade, Front Wiper, Winter, Rh[03.2005 -] MHU38 ウィンタブレード（ＤＯＰ）; MHU38 |
85291-22090 |
US $88.56 |
||
|
85291B
|
85291B
85291-22100 Blade, Front Wiper, Winter, Rh[03.2005 -] MHU38 ウィンタブレード（ＤＯＰ）; MHU38 有り（フィン） |
85291-22100 |
from US $94.64 |
||
|
89941
|
89941
89941-48031 Sensor, Rain[08.2006 - 08.2007] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89941-48031 |
US $495.04 |
||
|
89941
|
89941
89941-48033 Sensor, Rain[08.2007 - 10.2008] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89941-48033 |
US $493.58 |
||
|
89941
|
89941
89941-48040 Sensor, Rain[03.2005 - 08.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89941-48040 |
US $495.04 |
||
| replacement | |||||
|
89941
|
89941
89941-48031 Sensor, Rain[03.2005 - 08.2006] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89941-48031 |
US $495.04 |
||
|
89941
|
89941
89941-48060 Sensor, Rain[10.2008 -] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89941-48060 |
US $410.59 |
||
|
89944
|
89944
89944-50011 Tape, Rain Sensor[03.2005 - 06.2012] MHU38 Ｌパッケージ; MHU38 プレミアムＳパッケージ |
89944-50011 |
from US $18.98 |
||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.05 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
