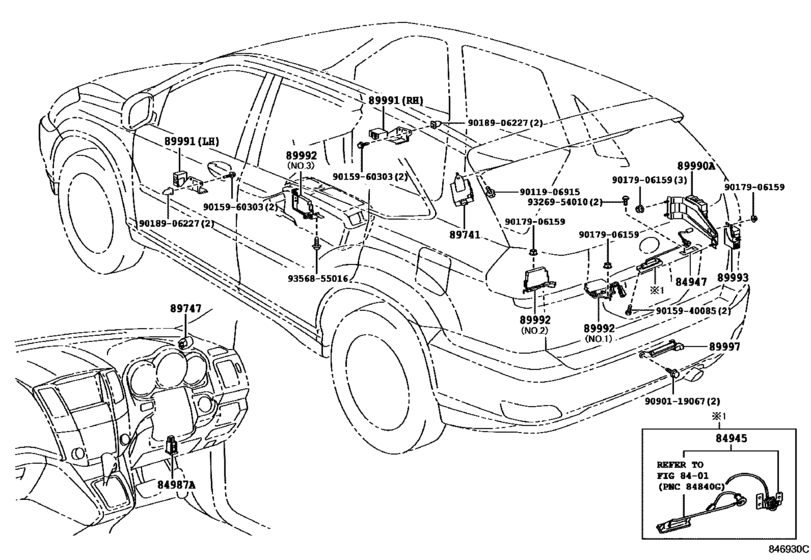

Wireless Door Lock ([03.2005 - ] (0503- )) Diagram Toyota HARRIER
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- MHU38
- body
- WG
- ENGINE
- 3MZFE
- Model
- HARRIER HYBRID
- From
- 03.2005
- To
- 06.2012
- Vehicle Model
- Harrier Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84905-48010 Switch, Luggage Electrical Key[03.2005 - 06.2012] MHU38 |
84905-48010 |
US $89.76 |
||
|
84947
|
84947
84947-50010 Cover, Door Electrical Key Switch[03.2005 - 06.2012] MHU38 |
84947-50010 |
US $6.27 |
||
|
84987A
|
84987A
84987-50060 Switch, Keyless Entry Cancel[03.2005 - 06.2012] MHU38 |
84987-50060 |
US $41.35 |
||
|
89741
|
89741
89740-48010 Receiver, Door Control[03.2005 -] MHU38 |
89740-48010 |
US $208.21 |
||
|
89747
|
89747
89747-48020 Buzzer, Clearance Warning, No.2[03.2005 - 09.2006] MHU38 |
89747-48020 |
US $39.02 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[10.2006 -] MHU38 |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-48010 Computer Assy, Smart Key[03.2005 -] MHU38 |
89990-48010 |
US $414.96 |
||
|
89991
|
89991
89991-48010 Oscillator, Door Electrical Key[03.2005 -] MHU38 右側 |
89991-48010 |
US $164.53 |
||
|
89991
|
89991
89991-48020 Oscillator, Door Electrical Key[03.2005 -] MHU38 左側 |
89991-48020 |
US $164.53 |
||
|
89992
|
89992
89992-48010 Oscillator, Indoor Electrical Key[03.2005 - 06.2012] MHU38 ＮＯ．１ |
89992-48010 |
US $216.94 |
||
|
89992
|
89992
89992-48020 Oscillator, Indoor Electrical Key[03.2005 - 06.2012] MHU38 ＮＯ．２ |
89992-48020 |
US $216.94 |
||
|
89992
|
89992
89992-48030 Oscillator, Indoor Electrical Key[03.2005 - 06.2012] MHU38 ＮＯ．３ |
89992-48030 |
US $216.94 |
||
|
89993
|
89993
89993-48010 Oscillator, Luggage Electrical Key[03.2005 -] MHU38 |
89993-48010 |
US $164.53 |
||
|
89997
|
89997
89997-48010 Antenna, Electrical Key[03.2005 -] MHU38 |
89997-48010 |
US $171.81 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.70 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9090119067
|
9090119067
90901-19067 New Genuine Part |
90901-19067 |
US $1.46 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $1.08 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
