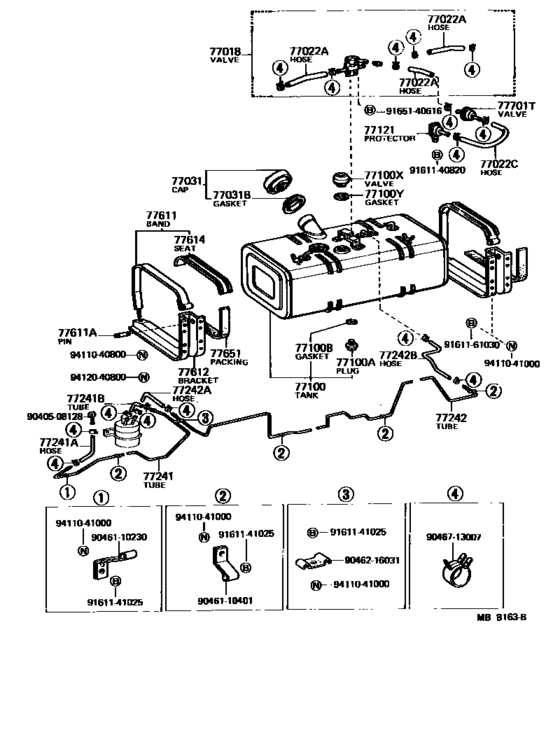

Fuel Tank & Tube ([02.1980 - ] (8002- )ARL) Diagram Toyota HEAVY DUTY TRUCK
- Year
- 1988 - 2001
- Sales region
- General
- Frame
- DA115
- body
- BTR
- ENGINE
- 2D
- DESTINATION
- ARL
- From
- 09.1988
- To
- 12.2001
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Rear Axle
- 2SR
- Transmission Model
- 5FD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77018
|
77018
77018-55010 Valve Sub-Assy, Fuel Vapour SeparateFUEL VAPOUR SEPARATE [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77018-55010 |
US $56.93 |
||
|
77022A
|
77022A
95332-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1979 - 12.2001] DA115..RHD *H,L=70,ID=8,AUSTRALIA SPEC |
95332-08010 |
US $2.69 |
||
| replacement | |||||
|
77022A
|
77022A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1979 - 12.2001] DA115..RHD *H,L=70,ID=8,AUSTRALIA SPEC |
95333-08010 |
— | ||
|
77022A
|
77022A
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1979 - 12.2001] DA115..RHD *H,L=280,ID=7.6,AUSTRALIA SPEC |
95332-08030 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1979 - 12.2001] DA115..RHD *H,L=280,ID=7.6,AUSTRALIA SPEC |
95333-08030 |
US $11.83 |
||
|
77022C
|
77022C
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1979 - 12.2001] DA115..RHD *H,L=240,AUSTRALIA SPEC |
95332-08030 |
— | ||
| replacement | |||||
|
77022C
|
77022C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1979 - 12.2001] DA115..RHD *H,L=240,AUSTRALIA SPEC |
95333-08030 |
US $11.83 |
||
|
77031
|
77031
77031-95010 Cap Assy, Fuel TankFUEL TANK [08.1978 - 12.2001] DA11# W/KEY |
77031-95010 |
US $46.88 |
||
| replacement | |||||
|
77031
|
77031
69058-95213 Cylinder & Key Set, Fuel Inlet Lock[08.1978 - 12.2001] DA11# W/KEY |
69058-95213 |
US $75.71 |
||
|
77031
|
77031
77310-55080
Cap Assy, Fuel Tank
[07.1975 - 09.1988] DA115..RHD AUSTRALIA SPEC |
77310-55080 |
— | ||
| replacement | |||||
|
77031
|
77031
77310-60100 Cap Assy, Fuel Tank[07.1975 - 09.1988] DA115..RHD AUSTRALIA SPEC |
77310-60100 |
from US $22.21 |
||
|
77031
|
77031
77310-55090
Cap Assy, Fuel Tank
[02.1973 - 12.2001] DA11#,DB10# |
77310-55090 |
— | ||
| replacement | |||||
|
77031
|
77031
77310-60100 Cap Assy, Fuel Tank[02.1973 - 12.2001] DA11#,DB10# |
77310-60100 |
from US $22.21 |
||
|
77031B
|
77031B
77316-27010
Gasket (For Fuel Tank Cap)
[02.1973 - 12.2001] DA11#,DB10#,FA100,11#,FC100 |
77316-27010 |
— | ||
|
77100
|
77100
77001-55110 Tank Assy, Fuel[10.1977 - 12.2001] DA11# IV3 |
77001-55110 |
US $294.11 |
||
|
77100
|
77100
77001-55160
Tank Assy, Fuel
[10.1977 - 12.2001] DA11# IV1,IV5 |
77001-55160 |
— | ||
|
77100
|
77100
77001-55181 Tank Assy, Fuel[10.1977 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77001-55181 |
US $770.22 |
||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[08.1969 - 12.2001] DA11#,DB10#,FA100,11#,FC100 |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
90430-12245 |
from US $0.86 |
||
|
77100X
|
77100X
90917-10041 Valve, CheckCHECK [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
90917-10041 |
US $133.95 |
||
|
77100Y
|
77100Y
90430-37001 Gasket(For Fuel Tank)[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
90430-37001 |
US $15.14 |
||
|
77121
|
77121
77258-36010 Protector, Fuel Tube[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77258-36010 |
US $18.93 |
||
|
77241
|
77241
77251-55070 Tube, Fuel Main, No.1FUEL MAIN, NO.1 [02.1980 - 12.2001] DA11# W/FUEL SEDIMENTER |
77251-55070 |
US $24.32 |
||
|
77241A
|
77241A
95332-08020
Hose, Fuel Pipe, No.1
[04.1979 - 12.2001] DA11# *H,L=160,ID=7.6 |
95332-08020 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [04.1979 - 12.2001] DA11# *H,L=160,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
77241B
|
77241B
77260-55010 Hose, Fuel, No.2 (For Main Tube, No.1)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [05.1980 - 12.2001] DA11# W/FUEL SEDIMENTER |
77260-55010 |
US $23.44 |
||
|
77241B
|
77241B
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1979 - 12.2001] DA11#,FA100,115 *H,L=380,ID=8,W/O FUEL SEDIMENTER |
95332-08040 |
— | ||
| replacement | |||||
|
77241B
|
77241B
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[04.1979 - 12.2001] DA11#,FA100,115 *H,L=380,ID=8,W/O FUEL SEDIMENTER |
95337-08040 |
US $9.32 |
||
|
77242
|
77242
77252-55020 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [02.1980 - 12.2001] DA115..RHD AUSTRALIA,W/FUEL SEDIMENTER |
77252-55020 |
US $33.49 |
||
|
77242
|
77242
77252-55030 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [02.1980 - 12.2001] DA11# W/SEDIMENTER & AIR OVER BRAKE |
77252-55030 |
US $19.80 |
||
|
77242
|
77242
77252-55050 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [02.1980 - 12.2001] DA11# W/FUEL SEDIMENTER |
77252-55050 |
US $25.19 |
||
|
77242A
|
77242A
77260-55020 Hose, Fuel, No.1 (For Main Tube, No.2)FUEL, NO.1 (FOR MAIN TUBE, NO.2) [01.1983 - 12.2001] DA11# W/FUEL SEDIMENTER |
77260-55020 |
US $29.70 |
||
|
77242B
|
77242B
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[02.1980 - 12.2001] DA11# *H,L=380,ID=8,W/FUEL SEDIMENTER |
95332-08040 |
— | ||
| replacement | |||||
|
77242B
|
77242B
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[02.1980 - 12.2001] DA11# *H,L=380,ID=8,W/FUEL SEDIMENTER |
95337-08040 |
US $9.32 |
||
|
77242B
|
77242B
95332-08100 Hose(For Carburetor)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [02.1980 - 12.2001] DA115..RHD *H,L=900,ID=8,AUSTRALIA,W/FUEL SEDIMENTER; DA110..RHD..BTR *H,L=950,ID=8,INDONESIA,W/FUEL SEDIMENTER |
95332-08100 |
US $27.23 |
||
| replacement | |||||
|
77242B
|
77242B
95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)[02.1980 - 12.2001] DA115..RHD *H,L=900,ID=8,AUSTRALIA,W/FUEL SEDIMENTER; DA110..RHD..BTR *H,L=950,ID=8,INDONESIA,W/FUEL SEDIMENTER |
95333-08100 |
US $33.94 |
||
|
77611
|
77611
77601-36051 Band, Fuel TankFUEL TANK [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77601-36051 |
US $31.74 |
||
|
77611
|
77611
77601-57011
Band, Fuel Tank
[04.1977 - 12.2001] DA11#,FA100,115 IV1,IV5 |
77601-57011 |
— | ||
|
77611
|
77611
77611-55020 Band, Fuel TankFUEL TANK [04.1977 - 12.2001] DA11#,FA100,115 IV3 |
77611-55020 |
US $40.91 |
||
|
77611A
|
77611A
77629-36010 Pin (For Fuel Tank Band)[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77629-36010 |
US $2.51 |
||
|
77612
|
77612
77616-55021
Bracket Sub-Assy, Fuel Tank
[04.1977 - 12.2001] DA11#,FA100,115 IV1,IV5 |
77616-55021 |
— | ||
|
77612
|
77612
77633-36050 Bracket Sub-Assy, Fuel TankFUEL TANK [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77633-36050 |
US $36.11 |
||
|
77614
|
77614
77614-36040 Seat, Fuel Tank BandFUEL TANK BAND [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77614-36040 |
US $8.88 |
||
| replacement | |||||
|
77614
|
77614
77681-22010 Seat, Fuel Tank Band[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77681-22010 |
US $18.05 |
||
|
77614
|
77614
77614-55010 Seat, Fuel Tank BandFUEL TANK BAND [03.1969 - 12.2001] DA11#,FA100,11#,FC100 |
77614-55010 |
US $6.12 |
||
|
77651
|
77651
77651-36050 Packing, Fuel Tank BracketFUEL TANK BRACKET [07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
77651-36050 |
US $7.43 |
||
|
77651
|
77651
77651-55010 Packing, Fuel Tank BracketFUEL TANK BRACKET [03.1969 - 12.2001] DA11#,FA100,11#,FC100 |
77651-55010 |
US $9.17 |
||
|
77701T
|
77701T
90917-10012
Valve, Check (For Main Fuel Tank)
[07.1975 - 12.2001] DA115..RHD AUSTRALIA SPEC |
90917-10012 |
— | ||
|
9040508128
|
9040508128
90405-08128 Union, Fuel Front Tube HoseFUEL FRONT TUBE HOSE |
90405-08128 |
US $12.23 |
||
|
9046110230
|
9046110230
90461-10230 New Genuine Part |
90461-10230 |
US $7.28 |
||
|
9046110401
|
9046110401
90461-10401 New Genuine Part |
90461-10401 |
US $3.06 |
||
|
9046216031
|
9046216031
90462-16031 New Genuine Part |
90462-16031 |
US $2.33 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
