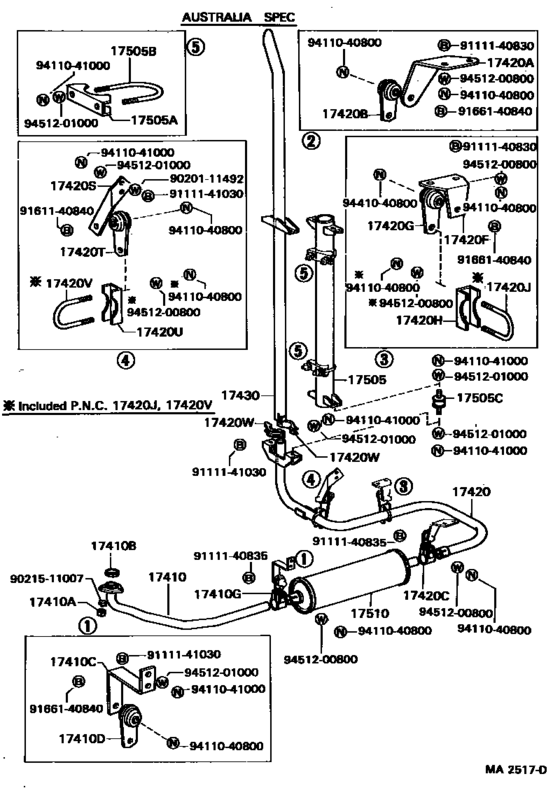

Exhaust Pipe ([08.1976 - 02.1980] (7608-8002)2D..DA115..RHD) Diagram Toyota HEAVY DUTY TRUCK
- Year
- 1969 - 2001
- Sales region
- General
- Frame
- DA115
- body
- BTR
- ENGINE
- 2D
- DESTINATION
- GEN
- From
- 03.1969
- To
- 12.2001
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Rear Axle
- 1SR
- Transmission Model
- 5FO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-76030 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [03.1969 - 08.1976] 2D..DA11# |
17401-76030 |
US $131.04 |
||
|
17410
|
17410
17401-76040 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [03.1969 - 08.1976] 2D..DA11# W/EXHAUST BRAKE |
17401-76040 |
US $120.85 |
||
|
17410
|
17410
17401-77050 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1976 - 04.1977] 2D..DA11# |
17401-77050 |
US $176.18 |
||
|
17410
|
17410
17401-77060
Pipe Assy, Exhaust, Front
[08.1976 - 04.1977] 2D..DA11# W/EXHAUST BRAKE |
17401-77060 |
— | ||
|
17410
|
17410
17401-77070 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [04.1977 - 12.2001] 2D..DA11# W/EXHAUST BRAKE |
17401-77070 |
US $174.72 |
||
|
17410
|
17410
17401-77080 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [04.1977 - 12.2001] 2D..DA11# |
17401-77080 |
from US $171.81 |
||
|
17410A
|
17410A
90170-10049
Nut, Exhaust Pipe Set Stud Bolt
[03.1969 - 11.1972] F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
90170-10049 |
— | ||
| replacement | |||||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[03.1969 - 11.1972] F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
90170-10199 |
US $4.48 |
||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[11.1972 - 12.2001] F,2D..DA11#,DB10#,FA100,11#,FC100 |
90170-10199 |
US $4.48 |
||
|
17410B
|
17410B
90917-06003
Gasket, Exhaust Pipe
[03.1969 - 01.1975] 2D..DA11#,DB10# |
90917-06003 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06056 Gasket, Exhaust Pipe[03.1969 - 01.1975] 2D..DA11#,DB10# |
90917-06056 |
from US $4.66 |
||
|
17410C
|
17410C
17571-76031
Bracket, Exhaust Pipe Front (For Front)
[03.1969 - 08.1976] 2D..DA11# |
17571-76031 |
— | ||
|
17410C
|
17410C
17571-77010 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1976 - 02.1980] F,2D..DA11#,FA100,115 |
17571-77010 |
US $29.56 |
||
|
17410D
|
17410D
90540-10011 Cushion(For Engine Under Cover Bracket)[03.1969 - 08.1976] 2D..DA11#,DB10# T=14.5 |
90540-10011 |
US $3.35 |
||
|
17410D
|
17410D
90917-08010
Cushion, Exhaust Tail Pipe(For Front)
[08.1976 - 02.1980] F,2D..DA11#,FA100,115 |
90917-08010 |
— | ||
|
17410G
|
17410G
90461-23011 Clamp No.2, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [02.1977 - 02.1980] F,2D..DA11#,FA100,115 |
90461-23011 |
US $11.94 |
||
|
17410G
|
17410G
90461-23245 Clamp No.2, Exhaust Pipe Front (For Front)[03.1969 - 08.1976] 2D..DA11# |
90461-23245 |
US $9.76 |
||
|
17420
|
17420
17403-77020
Pipe Assy, Exhaust, Center
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
17403-77020 |
— | ||
|
17420
|
17420
17403-77021 Pipe Assy, Exhaust, Center[02.1980 - 03.1983] 2D..DA115..RHD AUSTRALIA SPEC |
17403-77021 |
US $352.35 |
||
| replacement | |||||
|
17420
|
17420
17403-77030 Pipe Assy, Exhaust, Center[02.1980 - 03.1983] 2D..DA115..RHD AUSTRALIA SPEC |
17403-77030 |
US $353.81 |
||
|
17420
|
17420
17403-77030 Pipe Assy, Exhaust, Center[03.1983 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17403-77030 |
US $353.81 |
||
|
17420A
|
17420A
17572-77010 Bracket, Exhaust Pipe Center, FrontEXHAUST PIPE CENTER, FRONT [08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
17572-77010 |
US $30.28 |
||
|
17420A
|
17420A
17572-77012 Bracket, Exhaust Pipe Center, Front[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17572-77012 |
US $33.49 |
||
|
17420B
|
17420B
90917-08010
Cushion, Exhaust Tail Pipe(For Front)
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08010 |
— | ||
|
17420B
|
17420B
90917-08013 Cushion, Exhaust Pipe Front (For Rear)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08013 |
US $25.63 |
||
|
17420C
|
17420C
90461-23244 Clamp No.1, Exhaust Pipe Center, Front[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90461-23244 |
US $11.79 |
||
| replacement | |||||
|
17420C
|
17420C
90461-23069 Clamp No.1, Exhaust Pipe Center, Front[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90461-23069 |
US $13.25 |
||
|
17420C
|
17420C
90917-04001 Clamp No.1, Exhaust Pipe Front (For Front)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04001 |
US $2.91 |
||
|
17420F
|
17420F
17572-77012 Bracket, Exhaust Pipe Center, Front[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17572-77012 |
US $33.49 |
||
|
17420F
|
17420F
17573-77010
Bracket, Exhaust Pipe, Center
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
17573-77010 |
— | ||
|
17420G
|
17420G
90917-08010
Cushion, Exhaust Tail Pipe(For Front)
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08010 |
— | ||
|
17420G
|
17420G
90917-08013 Cushion, Exhaust Pipe Front (For Rear)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08013 |
US $25.63 |
||
|
17420H
|
17420H
90917-04001 Clamp No.1, Exhaust Pipe Front (For Front)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04001 |
US $2.91 |
||
|
17420H
|
17420H
90917-04015
Clamp No.1, Exhaust Pipe Front (For Front)
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04015 |
— | ||
|
17420J
|
17420J
90118-08068 Bolt Or Ring, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90118-08068 |
US $7.13 |
||
| replacements | |||||
|
17420J
|
17420J
94130-00802 Nut, No.1 (For Center Support Bearing)[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
94130-00802 |
from US $0.87 |
||
|
17420J
|
17420J
90117-08145 New Genuine Part[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90117-08145 |
US $6.99 |
||
|
17420J
|
17420J
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
94512-00800 |
from US $0.68 |
||
|
17420J
|
17420J
90118-08078 Bolt Or Ring, Exhaust Pipe Center, Front[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90118-08078 |
US $7.28 |
||
| replacements | |||||
|
17420J
|
17420J
94130-00802 Nut, No.1 (For Center Support Bearing)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
94130-00802 |
from US $0.87 |
||
|
17420J
|
17420J
90117-08060 Bolt Or Ring, Exhaust Pipe Front (For Front)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90117-08060 |
US $10.19 |
||
|
17420J
|
17420J
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
94512-00800 |
from US $0.68 |
||
|
17420S
|
17420S
17574-77020
Bracket, Exhaust Pipe Center, Rear
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
17574-77020 |
— | ||
|
17420T
|
17420T
90917-08010
Cushion, Exhaust Tail Pipe(For Front)
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08010 |
— | ||
|
17420U
|
17420U
90917-04015
Clamp No.1, Exhaust Pipe Front (For Front)
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04015 |
— | ||
|
17420V
|
17420V
90118-08068 Bolt Or Ring, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90118-08068 |
US $7.13 |
||
| replacements | |||||
|
17420V
|
17420V
94130-00802 Nut, No.1 (For Center Support Bearing)[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
94130-00802 |
from US $0.87 |
||
|
17420V
|
17420V
90117-08145 New Genuine Part[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
90117-08145 |
US $6.99 |
||
|
17420V
|
17420V
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
94512-00800 |
from US $0.68 |
||
|
17420V
|
17420V
90118-08078 Bolt Or Ring, Exhaust Pipe Center, Front[05.1981 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90118-08078 |
US $7.28 |
||
| replacements | |||||
|
17420V
|
17420V
94130-00802 Nut, No.1 (For Center Support Bearing)[05.1981 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
94130-00802 |
from US $0.87 |
||
|
17420V
|
17420V
90117-08060 Bolt Or Ring, Exhaust Pipe Front (For Front)[05.1981 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90117-08060 |
US $10.19 |
||
|
17420V
|
17420V
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[05.1981 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
94512-00800 |
from US $0.68 |
||
|
17420W
|
17420W
90917-04001 Clamp No.1, Exhaust Pipe Front (For Front)[05.1981 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04001 |
US $2.91 |
||
|
17420W
|
17420W
90917-04028 Clamp No.2, Exhaust Pipe Center, RearEXHAUST PIPE CENTER, REAR [08.1976 - 05.1981] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04028 |
US $4.51 |
||
|
17430
|
17430
17405-77110
Pipe Assy, Exhaust, Tail
[08.1976 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17405-77110 |
— | ||
|
17430
|
17430
17431-77050 Pipe Assy, Exhaust, TailEXHAUST, TAIL [03.1969 - 03.1974] 2D..DA115 |
17431-77050 |
US $182 |
||
|
17430
|
17430
17431-77051 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1976 - 12.2001] F,2D..DA115,FA115..1SR |
17431-77051 |
US $206.75 |
||
|
17505
|
17505
17505-77010
Insulator Sub-Assy, Exhaust Pipe Heat No.1
[08.1976 - 02.1980] 2D..DA115..RHD AUSTRALIA SPEC |
17505-77010 |
— | ||
|
17505
|
17505
17505-77011
Insulator Sub-Assy, Exhaust Pipe Heat No.1
[02.1980 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17505-77011 |
— | ||
|
17505A
|
17505A
90917-04029 Clamp, Exhaust Pipe(For Heat Insulator)EXHAUST PIPE(FOR HEAT INSULATOR) [08.1976 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-04029 |
US $5.53 |
||
|
17505B
|
17505B
90117-10004 Bolt, U(For Heat Insulator Clamp)U(FOR HEAT INSULATOR CLAMP) [08.1976 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90117-10004 |
US $9.61 |
||
|
17505C
|
17505C
90917-08011 Cushion, Exhaust Pipe(For Heat Insulator)EXHAUST PIPE(FOR HEAT INSULATOR) [08.1976 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
90917-08011 |
US $32.03 |
||
|
17510
|
17510
17510-77010
Muffler Assy
[03.1969 - 08.1976] 2D..DA116;2D..DA115..1SR |
17510-77010 |
— | ||
|
17510
|
17510
17510-77030 Muffler Assy[08.1976 - 09.1988] 2D..DA115..RHD AUSTRALIA SPEC |
17510-77030 |
US $330.51 |
||
|
9020111492
|
9020111492
90201-11492 New Genuine Part |
90201-11492 |
US $3.35 |
||
|
9021511007
|
9021511007
90215-11007 New Genuine Part |
90215-11007 |
US $2.62 |
||
|
9111140830
|
9111140830
91111-40830 New Genuine Part |
91111-40830 |
US $3.35 |
||
|
9111140835
|
9111140835
91111-40835 New Genuine Part |
91111-40835 |
US $4.22 |
||
|
9111141030
|
9111141030
91111-41030 Bolt(For Clutch Pedal Stopper) |
91111-41030 |
US $2.18 |
||
| replacement | |||||
|
9111141030
|
9111141030
91112-41030 Bolt(For Clutch Pedal Stopper) |
91112-41030 |
US $3.35 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9166140840
|
9166140840
91661-40840 New Genuine Part |
91661-40840 |
US $2.04 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9441040800
|
9441040800
94410-40800
New Genuine Part
|
94410-40800 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
