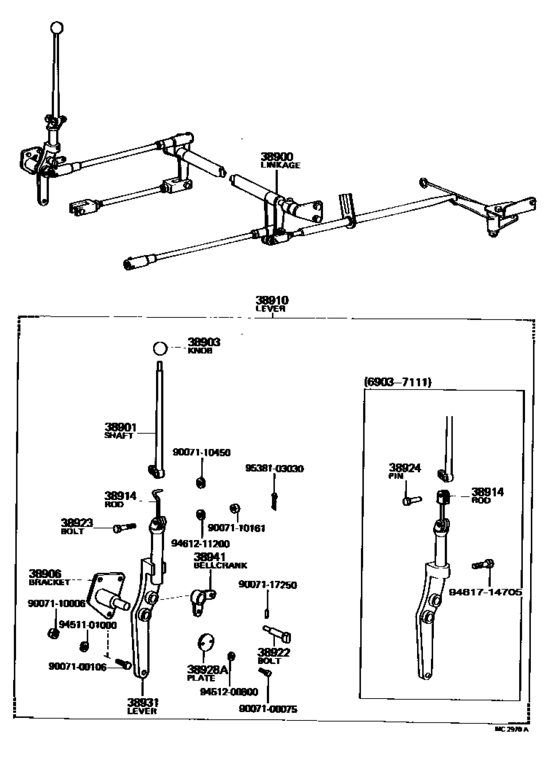

Power Take-Off Lever & Link ([03.1969 - 04.1977] (6903-7704)LHD..DMP) Diagram Toyota HEAVY DUTY TRUCK
- Year
- 1969 - 1982
- Sales region
- General
- Frame
- FA100
- body
- DMP
- ENGINE
- F
- DESTINATION
- GEN
- From
- 03.1969
- Engine
- 2F
- To
- 07.1982
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Rear Axle
- 1SR
- Transmission Model
- 5FD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38900
|
38900
38900-93013
Linkage Assy, Control
[03.1969 - 04.1977] DA110,FA100,110..LHD..DMP..5F |
38900-93013 |
— | ||
|
38901
|
38901
38906-93000
Shaft Sub-Assy, Control
[03.1969 - 04.1977] DA110,FA100,110..LHD..DMP |
38906-93000 |
— | ||
|
38903
|
38903
38916-93004
Knob Sub-Assy, Control
[04.1977 - 12.2001] DA110,FA100..DMP |
38916-93004 |
— | ||
|
38903
|
38903
38917-93001
Knob Sub-Assy, Control
[03.1969 - 04.1977] DA110,FA100,110..DMP |
38917-93001 |
— | ||
|
38906
|
38906
38916-93003
Bracket Sub-Assy, Control Shaft, Lower
[03.1969 - 04.1977] DA110,FA100,110..LHD..DMP |
38916-93003 |
— | ||
|
38906
|
38906
38989-93001
Bracket Sub-Assy, Control Shaft, Lower
[04.1977 - 12.2001] DA110,FA100..LHD..DMP |
38989-93001 |
— | ||
|
38910
|
38910
38910-93003
Lever Assy, Dump
[03.1969 - 04.1977] DA110,FA100,110..LHD..DMP |
38910-93003 |
— | ||
|
38910
|
38910
38910-93005
Lever Assy, Dump
[04.1977 - 12.2001] DA110,FA100..LHD..DMP |
38910-93005 |
— | ||
|
38914
|
38914
38914-93000
Rod, Power Take-Off Gear Shift
[03.1969 - 11.1971] DA110,FA100,110..DMP |
38914-93000 |
— | ||
|
38914
|
38914
38914-93001
Rod, Power Take-Off Gear Shift
[11.1971 - 04.1977] DA110,FA100,110..DMP |
38914-93001 |
— | ||
|
38922
|
38922
38922-93000
Bolt, Power Take-Off Gear Shift Bellcrank Set
[03.1969 - 11.1971] DA110,FA100,110..DMP |
38922-93000 |
— | ||
|
38922
|
38922
38922-93001
Bolt, Power Take-Off Gear Shift Bellcrank Set
[11.1971 - 04.1977] DA110,FA100,110..DMP |
38922-93001 |
— | ||
|
38923
|
38923
38923-93001
Bolt, Power Take-Off Gear Shift
[03.1969 - 11.1971] DA110,FA100,110..DMP |
38923-93001 |
— | ||
|
38923
|
38923
38923-93002
Bolt, Power Take-Off Gear Shift
[11.1971 - 04.1977] DA110,FA100,110..DMP |
38923-93002 |
— | ||
|
38924
|
38924
38924-93000
Pin, Power Take-Off Gear Shift
[03.1969 - 11.1971] DA110,FA100,110..DMP |
38924-93000 |
— | ||
|
38928A
|
38928A
38918-93000
Plate, Dump Lever Lower Bush
[03.1969 - 04.1977] DA110,FA100,110..DMP |
38918-93000 |
— | ||
|
38931
|
38931
38905-93001
Lever, Valve Link
[03.1969 - 11.1971] DA110,FA100,110..LHD..DMP |
38905-93001 |
— | ||
|
38931
|
38931
38905-93003
Lever, Valve Link
[11.1971 - 04.1977] DA110,FA100,110..LHD..DMP |
38905-93003 |
— | ||
|
38931
|
38931
38931-93002
Lever, Valve Link
[04.1977 - 12.2001] DA110,FA100..DMP |
38931-93002 |
— | ||
|
38941
|
38941
38904-93000
Bellcrank Take-Off Gear Shift
[03.1969 - 04.1977] DA110,FA100,110..DMP |
38904-93000 |
— | ||
|
9007100075
|
9007100075
90071-00075 New Genuine Part |
90071-00075 |
US $2.33 |
||
| replacement | |||||
|
9007100075
|
9007100075
91111-50820 New Genuine Part |
91111-50820 |
US $2.20 |
||
|
9007100106
|
9007100106
90071-00106
New Genuine Part
|
90071-00106 |
— | ||
|
9007110006
|
9007110006
90071-10006 Nut(For Steering Damper) |
90071-10006 |
US $2.18 |
||
| replacement | |||||
|
9007110006
|
9007110006
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9007110161
|
9007110161
90071-10161
New Genuine Part
|
90071-10161 |
— | ||
| replacement | |||||
|
9007110161
|
9007110161
94146-41200 New Genuine Part |
94146-41200 |
US $4.89 |
||
|
9007110450
|
9007110450
90071-10450
New Genuine Part
|
90071-10450 |
— | ||
|
9007117250
|
9007117250
90071-17250
New Genuine Part
|
90071-17250 |
— | ||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.70 |
||
|
9461714705
|
9461714705
94617-14705
New Genuine Part
|
94617-14705 |
— | ||
|
9538103030
|
9538103030
95381-03030 New Genuine Part |
95381-03030 |
US $2.33 |
||
