Front Steering Gear & Link ([03.1969 - 03.1970] (6903-7003)FB100) Diagram Toyota HEAVY DUTY TRUCK

Year
1969 - 1971
Sales region
General
Frame
FB100
ENGINE
F
DESTINATION
GEN
From
03.1969
To
05.1971
Gear Shift Type
5F
Driver's Position
LHD

Difficulties in parts search?

Parts list

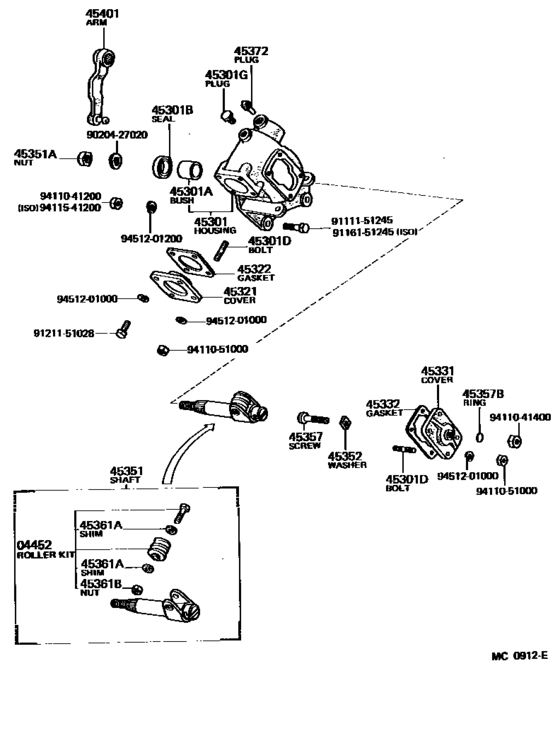

Front Steering Gear & Link

Difficulties in parts search?

Front Steering Gear & Link
Description OEM Part # Price
04452
04452
04452-57010
Roller Kit, Steering Sector

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

04452-57010

45301
45301

45301-56010

Housing Sub-Assy, Steering Gear

[03.1969 - 08.1969] FB100

45301-56010

US $302.85

replacements
45301
45301
45301-56011
Housing Sub-Assy, Steering Gear

[03.1969 - 08.1969] FB100

45301-56011

45301
45301

90341-12055

Seat, Shift Detent Ball Spring, No.1

SHIFT DETENT BALL SPRING, NO.1

[03.1969 - 08.1969] FB100

90341-12055

US $3.35

45301
45301
45301-56011
Housing Sub-Assy, Steering Gear

[08.1969 - 03.1970] FB100

45301-56011

45301
45301
45311-57020
Housing Sub-Assy, Steering Gear

[03.1970 - 05.1971] FB100

45311-57020

45301A
45301A

90364-41039

Bush Or Bearing, Sector Shaft, No.1

SECTOR SHAFT, NO.1

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100

90364-41039

US $56.78

45301A
45301A

90999-70032

Bush Or Bearing, Sector Shaft, No.1

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

90999-70032

US $11.21

45301B
45301B
90311-36035
Seal, Oil(For Sector Shaft)

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

90311-36035

45301B
45301B
90311-41109
Seal, Oil(For Sector Shaft)

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100

90311-41109

45301D
45301D
90116-10102
Bolt, Stud(For Steering Gear Housing)

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

90116-10102

45301G
45301G
90341-12016
Plug, Steering Gear Box Oil

[03.1969 - 05.1971] FB100

90341-12016

45321
45321
45321-57010
Cover, Gear Housing End

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

45321-57010

45322
45322
45322-57010
Gasket, Gear Housing End Cover

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=0.20

45322-57010

45322
45322
45323-57010
Gasket, Gear Housing End Cover

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=0.30

45323-57010

45322
45322
45324-57010
Gasket, Gear Housing End Cover

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=0.50

45324-57010

45331
45331
45304-55011
Cover, Sector Shaft End

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

45304-55011

45331
45331

45331-55012

Cover, Sector Shaft End

SECTOR SHAFT END

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100

45331-55012

US $57.51

45332
45332
45332-57010
Gasket, Sector Shaft End Cover

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15

45332-57010

45332
45332

45332-57011

Gasket, Sector Shaft End Cover

SECTOR SHAFT END COVER

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15

45332-57011

US $2.33

45351
45351
45350-55030
Shaft, Steering Sector

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100..LHD

45350-55030

45351
45351

45351-55021

Shaft, Steering Sector

STEERING SECTOR

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100

45351-55021

US $292.66

45351A
45351A

90170-27033

Nut, Castle(For Pitman Arm)

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

90170-27033

US $4.40

45351A
45351A

90170-30171

Nut, Castle(For Pitman Arm)

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100

90170-30171

US $5.94

45352
45352

45352-55030

Washer, Sector Shaft Thrust

SECTOR SHAFT THRUST

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=2.515-2.535

45352-55030

US $3.20

45352
45352

45352-55040

Washer, Sector Shaft Thrust

SECTOR SHAFT THRUST

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=2.545-2.565

45352-55040

US $3.20

45352
45352

45352-55050

Washer, Sector Shaft Thrust

SECTOR SHAFT THRUST

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=2.575-2.595

45352-55050

US $3.20

45352
45352

45352-55060

Washer, Sector Shaft Thrust

SECTOR SHAFT THRUST

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=2.605-2.625

45352-55060

US $3.20

45352
45352

45352-55070

Washer, Sector Shaft Thrust

SECTOR SHAFT THRUST

[03.1970 - 12.2001] DA11#,DB10#,FA100,11#,FB100,FC100 T=2.635-2.655

45352-55070

US $3.20

45352
45352
45352-57010
Washer, Sector Shaft Thrust

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=3.9

45352-57010

45352
45352
45353-57010
Washer, Sector Shaft Thrust

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=4.0

45353-57010

45352
45352
45354-57010
Washer, Sector Shaft Thrust

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=4.1

45354-57010

45352
45352
45355-57010
Washer, Sector Shaft Thrust

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 T=4.2

45355-57010

45357
45357
45357-57011
Screw, Sector Shaft Adjusting

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

45357-57011

45357
45357
45357-57012
Screw, Sector Shaft Adjusting

[03.1970 - 04.1977] DA11#,DB10#,FA100,11#,FB100,FC100

45357-57012

45357B
45357B

90301-10005

Ring, O (For Check Valve Spring)

[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

90301-10005

US $3.20

45361A
45361A

90564-15064

Shim(For Steering Sector Roller Adjust)

[03.1969 - 03.1970] DA11#,DB10#; FB100;FA100,11#,FC100..RHD

90564-15064

US $1.75

45361B
45361B

90170-12051

Nut(For Steering Sector Roller Setting)

[03.1969 - 03.1974] DA11#,DB10#,FA100,11#,FB100,FC100

90170-12051

US $2.04

45372
45372
45372-55010
Plug, Steering Gear Housing Oil

[03.1969 - 08.1969] DA11#,DB10#,FA100,11#,FB100,FC100

45372-55010

45372
45372
45372-55011
Plug, Steering Gear Housing Oil

[08.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100

45372-55011

45401
45401
45401-56080
Arm Sub-Assy, Pitman

[03.1970 - 05.1971] FB100

45401-56080

45401
45401
45401-57011
Arm Sub-Assy, Pitman

[03.1969 - 03.1970] FB100

45401-57011

9020427020
9020427020

90204-27020

Washer(For Pitman Arm)

90204-27020

US $1.38

9111151245
9111151245

91111-51245

New Genuine Part

91111-51245

US $2.91

9116151245
9116151245

91161-51245

New Genuine Part

91161-51245

US $2.18

9121151028
9121151028
91211-51028
New Genuine Part

91211-51028

replacement
9121151028
9121151028

91212-51028

New Genuine Part

91212-51028

US $1.60

9411041200
9411041200

94110-41200

New Genuine Part

94110-41200

US $2.34

9411041400
9411041400

94110-41400

Nut(For Backing Plate To Steering Knuckle Setting)

94110-41400

US $2.33

replacement
9411041400
9411041400

94115-41400

Nut(For Backing Plate To Steering Knuckle Setting)

94115-41400

US $1.22

9411051000
9411051000

94110-51000

Nut(For Steering Center Arm)

94110-51000

from US $0.76

9411541200
9411541200
94115-41200
Nut

94115-41200

replacement
9411541200
9411541200

94130-61200

Nut

94130-61200

from US $0.91

9451201000
9451201000

94512-01000

Washer, No.1 (For Propeller Shaft & Differential Setting)

94512-01000

from US $0.74

9451201200
9451201200

94512-01200

Washer

94512-01200

from US $0.67
