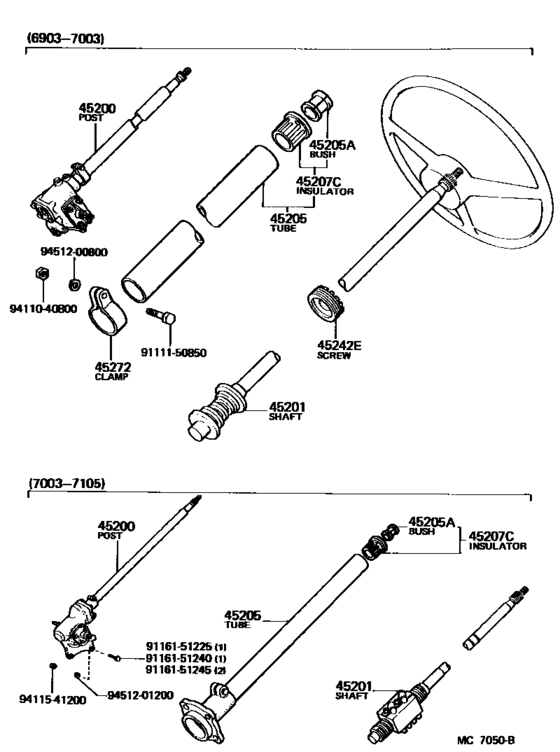

Steering Column & Shaft ([03.1969 - 05.1971] (6903-7105)FB100) Diagram Toyota HEAVY DUTY TRUCK
- Year
- 1969 - 1971
- Sales region
- General
- Frame
- FB100
- ENGINE
- F
- DESTINATION
- GEN
- From
- 03.1969
- To
- 05.1971
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45200
|
45200
45200-56060
Post Assy, Steering
[03.1969 - 05.1971] FB100 |
45200-56060 |
— | ||
|
45201
|
45201
45201-56050
Shaft Sub-Assy, Steering Main
[03.1969 - 03.1970] FB100 |
45201-56050 |
— | ||
|
45201
|
45201
45201-56051
Shaft Sub-Assy, Steering Main
[03.1970 - 05.1971] FB100 |
45201-56051 |
— | ||
|
45205
|
45205
45205-56040
Tube Sub-Assy, Steering Column
[03.1969 - 03.1970] FB100 |
45205-56040 |
— | ||
|
45205
|
45205
45205-56041
Tube Sub-Assy, Steering Column
[03.1970 - 05.1971] FB100 |
45205-56041 |
— | ||
|
45205A
|
45205A
90386-18026
Bush(For Steering Column Tube)
[03.1969 - 03.1974] DA11#,DB10#,FA100,11#,FB100,FC100 |
90386-18026 |
— | ||
|
45207C
|
45207C
45206-35010
Insulator, Horn Contact Brush Ring
[03.1969 - 03.1974] DA11#,DB10#,FA100,11#,FB100,FC100 |
45206-35010 |
— | ||
|
45242E
|
45242E
45242-55010
Screw, Worm Bearing Adjusting
[03.1969 - 03.1970] FB100 |
45242-55010 |
— | ||
|
45272
|
45272
45272-55010
Clamp, Steering Column, Lower
[03.1969 - 03.1970] DA11#,DB10#,FA100,11#,FB100,FC100 |
45272-55010 |
— | ||
|
9111150850
|
9111150850
91111-50850 New Genuine Part |
91111-50850 |
US $2.48 |
||
| replacement | |||||
|
9111150850
|
9111150850
91112-60850 New Genuine Part |
91112-60850 |
US $0.70 |
||
|
9116151225
|
9116151225
91161-51225
New Genuine Part
|
91161-51225 |
— | ||
|
9116151240
|
9116151240
91161-51240 New Genuine Part |
91161-51240 |
US $1.89 |
||
|
9116151245
|
9116151245
91161-51245 New Genuine Part |
91161-51245 |
US $2.18 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.70 |
||
