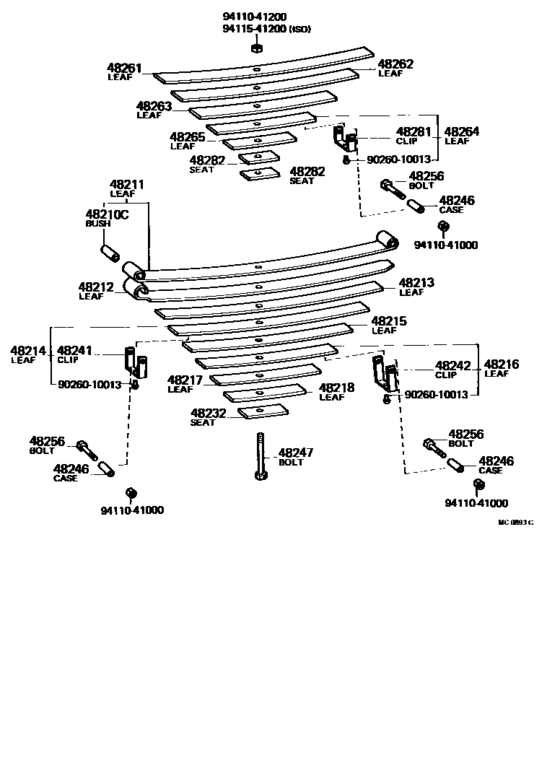

Rear Spring & Shock Absorber ([03.1969 - 03.1974] (6903-7403)FC100) Diagram Toyota HEAVY DUTY TRUCK
- Year
- 1969 - 1974
- Sales region
- General
- Frame
- FC100
- body
- BTR
- ENGINE
- F
- DESTINATION
- GEN
- From
- 03.1969
- To
- 03.1974
- Gear Shift Type
- 4F
- Driver's Position
- RHD
- Rear Axle
- 1SR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210C
|
48210C
90999-73016 Bush(For Rear Spring Leaf)[03.1969 - 04.1979] DA11#,FA100,11#,FC100 ID=32,OD=38.3,L=78 |
90999-73016 |
US $19.07 |
||
|
48211
|
48211
48201-55110 Leaf, Rear Spring, No.1[03.1969 - 03.1974] FC100 |
48201-55110 |
US $347.98 |
||
| replacement | |||||
|
48211
|
48211
48201-55140 Leaf, Rear Spring, No.1[03.1969 - 03.1974] FC100 |
48201-55140 |
US $219.86 |
||
|
48212
|
48212
48212-55110 Leaf, Rear Spring, No.2[03.1969 - 03.1974] FC100 |
48212-55110 |
US $253.34 |
||
| replacement | |||||
|
48212
|
48212
48212-55090
Leaf, Rear Spring, No.2
[03.1969 - 03.1974] FC100 |
48212-55090 |
— | ||
|
48213
|
48213
48213-55110
Leaf, Rear Spring, No.3
[03.1969 - 03.1974] FC100 |
48213-55110 |
— | ||
|
48214
|
48214
48202-55110
Leaf, Rear Spring, No.4
[03.1969 - 03.1974] FC100 |
48202-55110 |
— | ||
|
48215
|
48215
48215-55110 Leaf, Rear Spring, No.5[03.1969 - 03.1974] FC100 |
48215-55110 |
US $115.02 |
||
| replacement | |||||
|
48215
|
48215
48263-55091
Leaf, Rear Helper Spring, No.3
[03.1969 - 03.1974] FC100 |
48263-55091 |
— | ||
|
48216
|
48216
48203-55110
Leaf, Rear Spring, No.6
[03.1969 - 03.1974] FC100 |
48203-55110 |
— | ||
|
48217
|
48217
48217-55110 Leaf, Rear Spring, No.7[03.1969 - 03.1974] FC100 |
48217-55110 |
US $66.54 |
||
| replacement | |||||
|
48217
|
48217
48266-55091
Leaf, Rear Helper Spring, No.6
[03.1969 - 03.1974] FC100 |
48266-55091 |
— | ||
|
48218
|
48218
48218-55110
Leaf, Rear Spring, No.8
[03.1969 - 03.1974] FC100 |
48218-55110 |
— | ||
|
48232
|
48232
48282-55110
Seat, Coil Spring, Rear
[03.1969 - 03.1974] FC100 |
48282-55110 |
— | ||
|
48242
|
48242
48242-55110
Clip, Rear Spring, No.2
[03.1969 - 03.1974] FC100 |
48242-55110 |
— | ||
|
48246
|
48246
48146-56010 Case, Front Spring Clip BoltFRONT SPRING CLIP BOLT [03.1969 - 12.2001] DA11#,FA100,11#,FC100 |
48146-56010 |
US $1.46 |
||
|
48247
|
48247
48247-55111 Bolt, Rear Spring, Center[03.1969 - 03.1974] FC100 |
48247-55111 |
US $9.46 |
||
| replacement | |||||
|
48247
|
48247
48149-55021
Bolt, Front Spring, Center
[03.1969 - 03.1974] FC100 |
48149-55021 |
— | ||
|
48256
|
48256
48156-56010 Bolt, Front Spring ClipFRONT SPRING CLIP [03.1969 - 12.2001] DA11#,FA100,11#,FC100 |
48156-56010 |
US $1.60 |
||
|
48261
|
48261
48261-55110
Leaf, Rear Helper Spring, No.1
[03.1969 - 03.1974] FC100 |
48261-55110 |
— | ||
|
48262
|
48262
48262-55110
Leaf, Rear Helper Spring, No.2
[03.1969 - 03.1974] FC100 |
48262-55110 |
— | ||
|
48263
|
48263
48263-55110
Leaf, Rear Helper Spring, No.3
[03.1969 - 03.1974] FC100 |
48263-55110 |
— | ||
|
48264
|
48264
48207-55110
Leaf, Rear Helper Spring, No.4
[03.1969 - 03.1974] FC100 |
48207-55110 |
— | ||
|
48265
|
48265
48265-55110 Leaf, Rear Helper Spring, No.5[03.1969 - 03.1974] FC100 |
48265-55110 |
US $110.66 |
||
| replacement | |||||
|
48265
|
48265
48268-55090
Leaf, Rear Helper Spring, No.9
[03.1969 - 03.1974] FC100 |
48268-55090 |
— | ||
|
48281
|
48281
48241-55110
Clip, Rear Helper Spring, No.1
[03.1969 - 03.1974] FC100 |
48241-55110 |
— | ||
|
48282
|
48282
48282-55110
Seat, Coil Spring, Rear
[03.1969 - 03.1974] FC100 |
48282-55110 |
— | ||
|
9026010013
|
9026010013
90260-10013
New Genuine Part
|
90260-10013 |
— | ||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411041200
|
9411041200
94110-41200 New Genuine Part |
94110-41200 |
US $2.34 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
