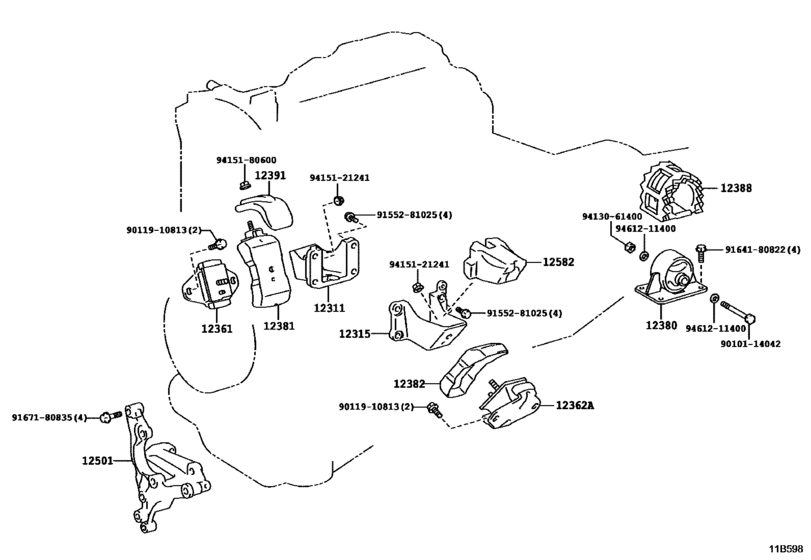

Mounting ([01.2017 - ] (1701- )1GDFTV) Diagram Toyota HIACE
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GDH201
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1GDFTV
- DESTINATION
- GEN
- Model
- HIACE
- From
- 01.2017
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-11150
Bracket, Engine Mounting, Front No.1 Rh
[01.2017 -] 1GDFTV..GDH201 |
12311-11150 |
— | ||
|
12315
|
12315
12315-30061 Bracket, Engine Mounting, Front No.1 Lh[01.2017 -] 1GDFTV..GDH201 |
12315-30061 |
US $34.80 |
||
|
12361
|
12361
12361-11220
Insulator, Engine Mounting, Front
[01.2017 -] 1GDFTV..GDH201 |
12361-11220 |
— | ||
|
12362A
|
12362A
12362-11320
Insulator, Engine Mounting, Front Lh
[01.2017 -] 1GDFTV..GDH201 |
12362-11320 |
— | ||
|
12380
|
12380
12380-75040 Insulator Assy, Engine Mounting, Rear[01.2017 -] 1GDFTV..GDH201 |
12380-75040 |
US $74.93 |
||
|
12381
|
12381
12381-11040
Stabilizer, Engine Mounting
[01.2017 -] 1GDFTV..GDH201 |
12381-11040 |
— | ||
|
12382
|
12382
12382-11010
Stabilizer, Engine Mounting, Lh
[01.2017 -] 1GDFTV..GDH201 |
12382-11010 |
— | ||
|
12388
|
12388
12388-67011 Stopper, Engine Mounting Bracket, Rear[01.2017 -] 1GDFTV..GDH201 |
12388-67011 |
from US $10.20 |
||
|
12391
|
12391
12391-11030
Insulator, Engine Mounting Front, Heat, Rh
[01.2017 -] 1GDFTV..GDH201 |
12391-11030 |
— | ||
|
12501
|
12501
12501-11011 Bracket Sub-Assy, Alternator[01.2017 -] 1GDFTV..GDH201 |
12501-11011 |
US $75.71 |
||
|
12582
|
12582
12582-11010
Insulator, Cylinder Block, No.2
[01.2017 -] 1GDFTV..GDH201 |
12582-11010 |
— | ||
|
9010114042
|
9010114042
90101-14042 BOLT HEXAGON |
90101-14042 |
US $6.63 |
||
|
9011910813
|
9011910813
90119-10813 BOLT W-WASHER |
90119-10813 |
US $3.05 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.79 |
||
|
9164180822
|
9164180822
91641-80822 New Genuine Part |
91641-80822 |
US $1.61 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.79 |
||
|
9413061400
|
9413061400
94130-61400 Nut, Lock |
94130-61400 |
US $1.79 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9461211400
|
9461211400
94612-11400 WASHERPLATE |
94612-11400 |
US $2.87 |
