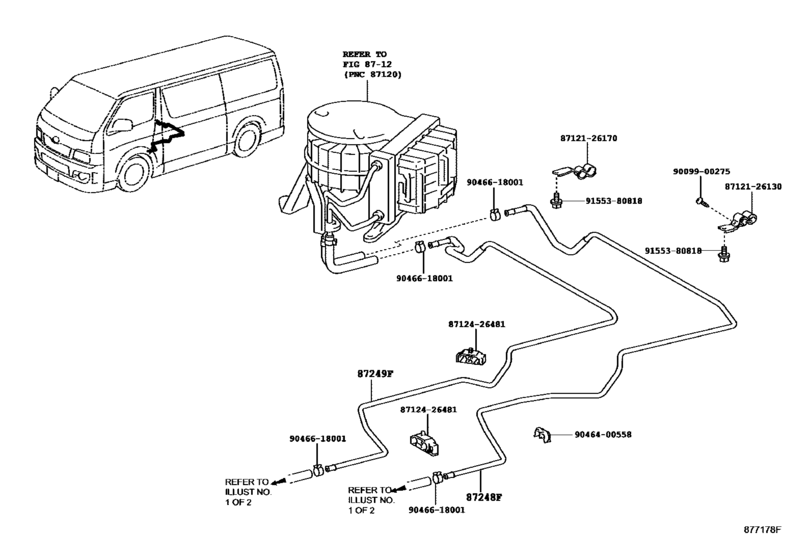

Heating & Air Conditioning - Water Piping ([09.2007 - ] ﾘﾔ:ﾌﾛｱ (0408-0709)KDH20#..IV5 ; (0408- )TRH200..IV5 ; (0709- )KDH20#..IV5) Diagram Toyota HIACE
- Year
- 2007 - 2013
- Sales region
- Japan
- Frame
- KDH206
- grade
- DX
- body
- V1
- Roof
- HRF
- ENGINE
- 1KDFTV
- Model
- HIACE/REGIUSACE
- From
- 09.2007
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 06S
- Building Condition
- IV5
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87248F
|
87248F
87248-26680
Pipe, Heater Water Inlet, F
[08.2004 - 12.2013] KDH20#,TRH200..IV5 |
87248-26680 |
— | ||
|
87249F
|
87249F
87248-26690
Pipe, Heater Water Outlet, F
[08.2004 - 12.2013] KDH20#,TRH200..IV5 |
87248-26690 |
— | ||
|
8712126130
|
8712126130
87121-26130
Bracket, Heater, Front Rh
|
87121-26130 |
— | ||
|
8712126170
|
8712126170
87121-26170
Bracket, Heater, Front Rh
|
87121-26170 |
— | ||
|
8712426481
|
8712426481
87124-26481
Clamp, Heater
|
87124-26481 |
— | ||
|
9009900275
|
9009900275
90099-00275 New Genuine Part |
90099-00275 |
US $1.08 |
||
|
9046400558
|
9046400558
90464-00558 Clip Or Clamp (For Heater Water Hose) |
90464-00558 |
US $2.87 |
||
|
9046618001
|
9046618001
90466-18001 CLIP HOSE |
90466-18001 |
from US $3.37 |
||
|
9155380818
|
9155380818
91553-80818 BOLT FLANGE |
91553-80818 |
US $1.43 |
