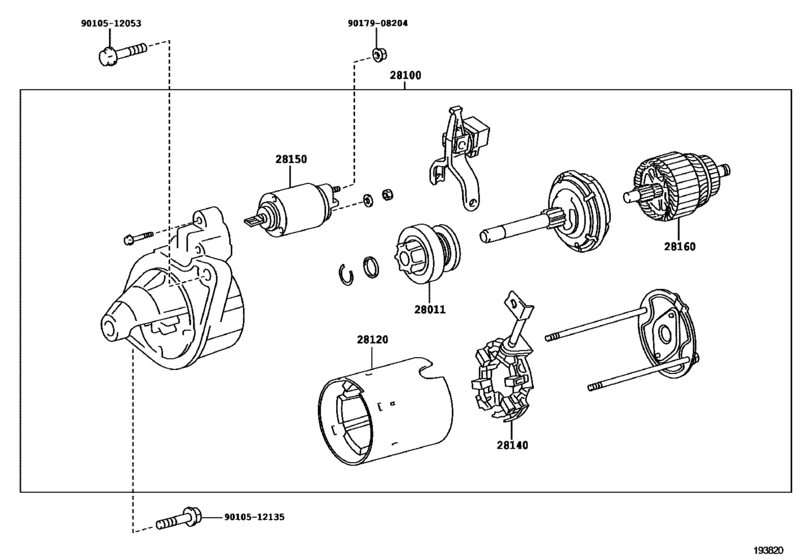

Starter ([04.2012 - ] 12V 2.2KW,SOUTH AFRICA SPEC (1204- )2KDFTV..KDH220,222..STD..SA) Diagram Toyota HIACE
- Year
- 2010 - 2014
- Sales region
- U.S.A.
- Frame
- KDH222
- grade
- STD
- body
- COM
- Roof
- HRF
- ENGINE
- 2KDFTV
- DESTINATION
- SA
- Model
- HIACE
- From
- 08.2010
- To
- 02.2014
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 14S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-0L082
Clutch Sub-Assy, Starter
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA CKD-SOUTH AFRICA SPEC |
28011-0L082 |
— | ||
|
28011
|
28011
28011-30040 Clutch Sub-Assy, Starter[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA |
28011-30040 |
from US $138.24 |
||
|
28100
|
28100
28100-0L082
Starter Assy
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA 12V 2.2KW,CKD-SOUTH AFRICA SPEC |
28100-0L082 |
— | ||
|
28100
|
28100
28100-30040 Starter Assy[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA 12V 2.0KW |
28100-30040 |
from US $742.29 |
||
|
28120
|
28120
28120-0L081
Yoke Assy, Starter
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA CKD-SOUTH AFRICA SPEC |
28120-0L081 |
— | ||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA |
28120-54380 |
US $182.40 |
||
|
28140
|
28140
28140-0L070
Holder Assy, Starter Brush
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA CKD-SOUTH AFRICA SPEC |
28140-0L070 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA |
28140-54380 |
from US $53.46 |
||
|
28150
|
28150
28150-0L071
Switch Assy, Magnet Starter
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA CKD-SOUTH AFRICA SPEC |
28150-0L071 |
— | ||
|
28150
|
28150
28150-30040 Switch Assy, Magnet Starter[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA |
28150-30040 |
US $177.63 |
||
|
28160
|
28160
28160-0L070
Armature Assy, Starter
[04.2012 - 05.2012] 2KDFTV..KDH222..STD..SA CKD-SOUTH AFRICA SPEC |
28160-0L070 |
— | ||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[01.2005 - 05.2012] 2KDFTV..KDH222..STD..SA |
28160-54380 |
— | ||
|
9010512053
|
9010512053
90105-12053 Bolt (For Rear Differential Carrier) |
90105-12053 |
from US $1.46 |
||
|
9010512135
|
9010512135
90105-12135 Bolt(For Rear Transaxle Case Cover) |
90105-12135 |
US $1.93 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
