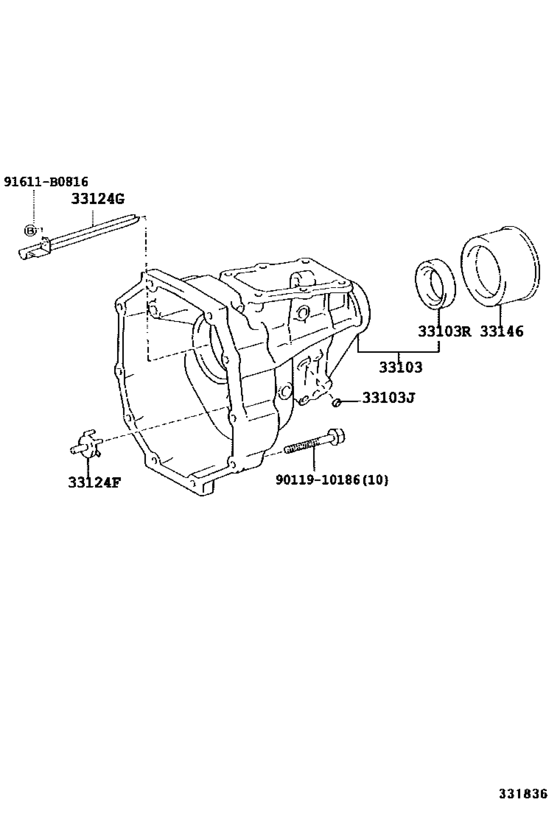

Extension Housing (Mtm) ([08.2006 - ] R151 (9508-0108)LXH12,22..MTM..TD ; (0108-0608)KLH12, 22..MTM..HDCR ; (0608- )KLH12,22) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- Europe
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-26080 Housing Sub-Assy, Extension(Mtm)[07.1999 - 08.2006] KLH12,22..DCR |
33103-26080 |
US $302.85 |
||
|
33103
|
33103
33103-35180 Housing Sub-Assy, Extension(Mtm)EXTENSION(MTM) [08.2006 - 11.2011] KLH12,22 |
33103-35180 |
US $174.72 |
||
|
33103J
|
33103J
90341-10065 Plug, Straight, No.1[08.2006 - 11.2011] KLH12,22 |
90341-10065 |
US $2.75 |
||
|
33103R
|
33103R
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[07.1999 - 08.2006] KLH12,22..DCR |
90311-38032 |
from US $5.50 |
||
|
33103R
|
33103R
90311-40001 Seal, Oil(For Extension Housing)[08.2006 - 06.2007] KLH12,22 |
90311-40001 |
from US $5.50 |
||
|
33103R
|
33103R
90311-40032 Seal, Oil(For Manual Transmission Extension Housing)[06.2007 - 01.2011] KLH12,22 |
90311-40032 |
US $5.82 |
||
| replacement | |||||
|
33103R
|
33103R
90311-40035
Seal, Oil(For Manual Transmission Extension Housing)
[06.2007 - 01.2011] KLH12,22 |
90311-40035 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-40048 SEAL TYPE T OIL[06.2007 - 01.2011] KLH12,22 |
90311-40048 |
from US $5.50 |
||
|
33103R
|
33103R
90311-40035
Seal, Oil(For Manual Transmission Extension Housing)
[01.2011 - 11.2011] KLH12,22 |
90311-40035 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-40048 SEAL TYPE T OIL[01.2011 - 11.2011] KLH12,22 |
90311-40048 |
from US $5.50 |
||
|
33124F
|
33124F
33124-35100 Pipe, Oil Receiver(For Transfer)[08.2006 - 11.2011] KLH1#,2# |
33124-35100 |
from US $5.23 |
||
|
33124F
|
33124F
33124-36010 Pipe, Oil Receiver(Mtm)[07.1999 - 08.2006] KLH12,22..DCR |
33124-36010 |
from US $1.56 |
||
|
33124G
|
33124G
33124-35011 Pipe, Oil Receiver, No.1(For Extension Housing)[07.1999 - 08.2006] KLH12,22..DCR |
33124-35011 |
from US $4.58 |
||
|
33124G
|
33124G
33124-35090 Pipe, Oil Receiver, No.2(For Extension Housing)[08.2006 - 11.2011] KLH12,22 |
33124-35090 |
US $3.84 |
||
|
33146
|
33146
33146-30020 Deflector, Extension Housing Dust(Mtm)[05.2001 - 08.2006] KLH12,22..MTM |
33146-30020 |
from US $12.52 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $1.79 |
||
