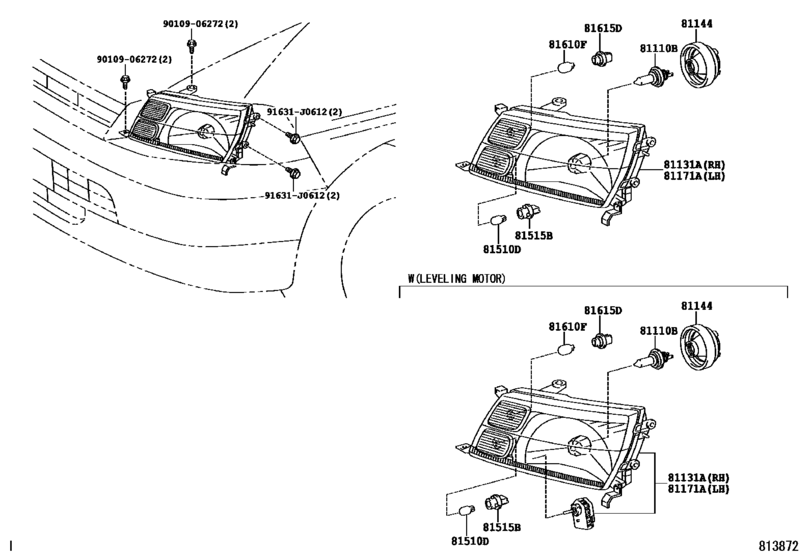

Headlamp ([08.2006 - ] (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- Europe
- Frame
- KLH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [03.2002 - 08.2006] KLH1#,2#,RCH1#,2# 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81131A
|
81131A
81130-26510
Unit, Headlamp, Rh
[08.2006 - 03.2010] KLH12,22..RHD..STD |
81130-26510 |
— | ||
|
81131A
|
81131A
81130-26511
Unit, Headlamp, Rh
[03.2010 - 10.2010] KLH12,22..RHD..STD |
81130-26511 |
— | ||
|
81131A
|
81131A
81130-26520
Unit, Headlamp, Rh
[08.2006 - 03.2010] KLH12,22..RHD W(HEADLAMP LEVELING) |
81130-26520 |
— | ||
|
81131A
|
81131A
81130-26521
Unit, Headlamp, Rh
[03.2010 -] KLH12,22..RHD W(HEADLAMP LEVELING) |
81130-26521 |
— | ||
|
81144
|
81144
81139-26490
Cover, Headlamp, No.1
[08.2006 -] KLH1#,2# |
81139-26490 |
— | ||
|
81144
|
81144
81139-87641 Ring, Sealed Beam Mounting, No.2 Rh[03.2002 - 08.2006] KLH1#,2# |
81139-87641 |
US $14.77 |
||
|
81171A
|
81171A
81170-26510
Unit, Headlamp, Lh
[08.2006 - 03.2010] KLH12,22..RHD..STD |
81170-26510 |
— | ||
|
81171A
|
81171A
81170-26511
Unit, Headlamp, Lh
[03.2010 - 10.2010] KLH12,22..RHD..STD |
81170-26511 |
— | ||
|
81171A
|
81171A
81170-26520
Unit, Headlamp, Lh
[08.2006 - 03.2010] KLH12,22..RHD W(HEADLAMP LEVELING) |
81170-26520 |
— | ||
|
81171A
|
81171A
81170-26521
Unit, Headlamp, Lh
[03.2010 -] KLH12,22..RHD W(HEADLAMP LEVELING) |
81170-26521 |
— | ||
|
81510D
|
81510D
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.2006 -] KLH1#,2# 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[08.2006 -] KLH1#,2# |
81515-42050 |
from US $10.41 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2006 -] KLH1#,2# 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2006 -] KLH1#,2# 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
81615-12590 Socket, Back Up Lamp[08.2006 -] KLH1#,2# |
81615-12590 |
from US $13.98 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9010906272
|
9010906272
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.84 |
||
